Boxco

Boxco P-Series 350x450x160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-354516
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-354516 is a 350×450×160 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-354516Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×160 mm (13.78×17.72×6.30 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

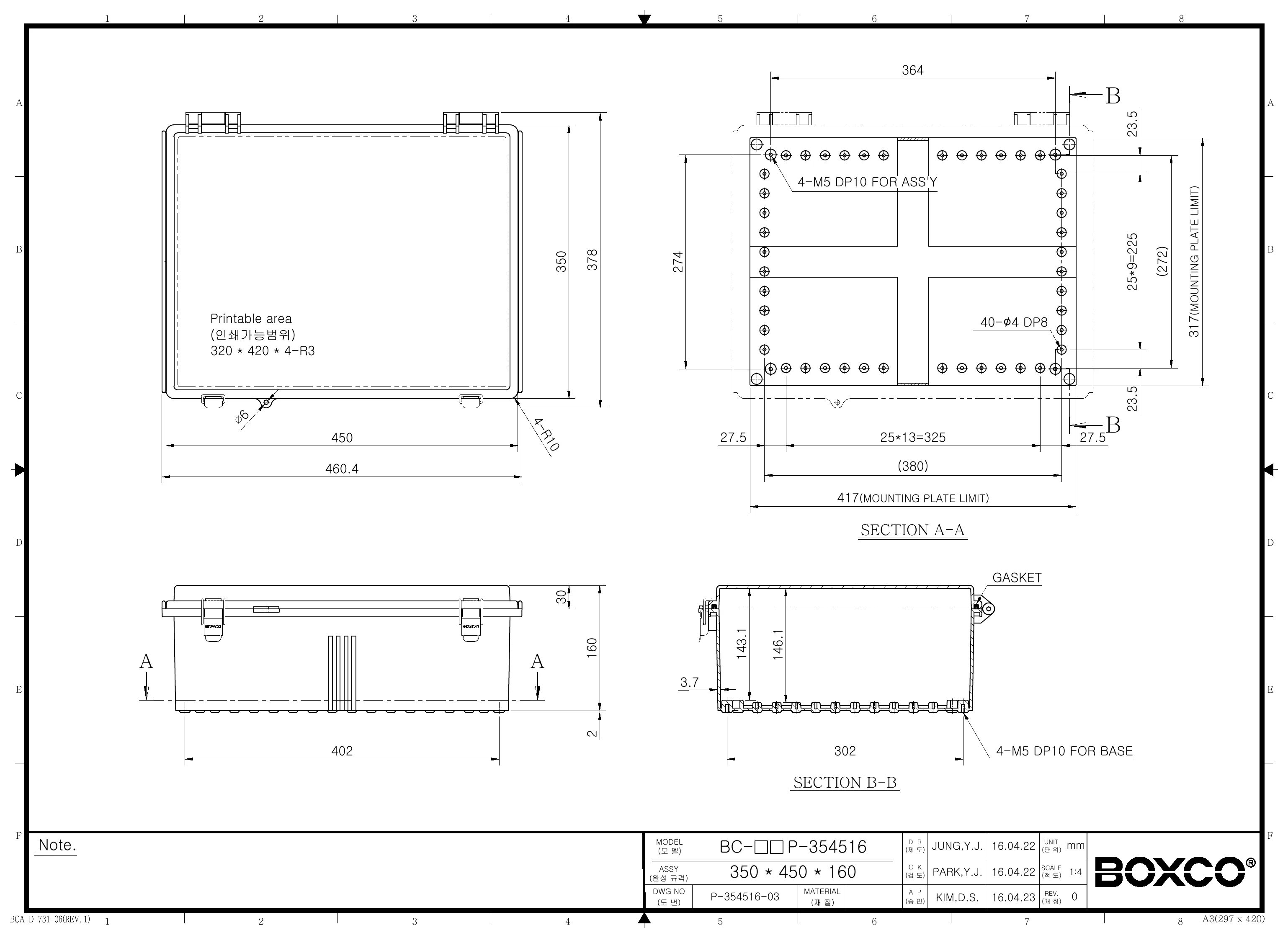

Technical drawings

BC-CGP-354516 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This enclosure is designed for protecting electrical or electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its impact-resistant polycarbonate construction, molded hinge and latch design, and internal mounting provisions make it a practical choice for control, instrumentation, and equipment protection applications.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. It also includes roof protection features and a precision-injected gasket intended to support waterproof and dust-proof performance.

What are the key size and material specifications for this model?

This model measures 13.78 x 17.72 x 6.30 inches, which corresponds to 350 x 450 x 160 mm. It is made from polycarbonate (PC) and comes with a grey cover. The listed product weight is 2.812 kg.

What protection ratings does this enclosure have?

This enclosure is rated IP67 and IK08. That means it is specified for strong protection against dust and water ingress and has a defined level of impact resistance for demanding environments.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. That makes this model suitable for applications that face both low-temperature and high-temperature conditions within that stated range.

Does this enclosure support internal mounting hardware or accessories?

Yes. The description notes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment inside the enclosure. It also includes internal mounting plate attachment points with brass inserted injection molding for securing heavier installed equipment.

How does the molded hinge and latch design help compared with a basic enclosure body?

This model includes an integrated plastic hinge with a stainless steel bearing to improve hinge life, along with a stainless steel main latch component for strength. Compared with a simpler non-hinged or less reinforced design, these features are intended to improve repeated access durability and cover security.
