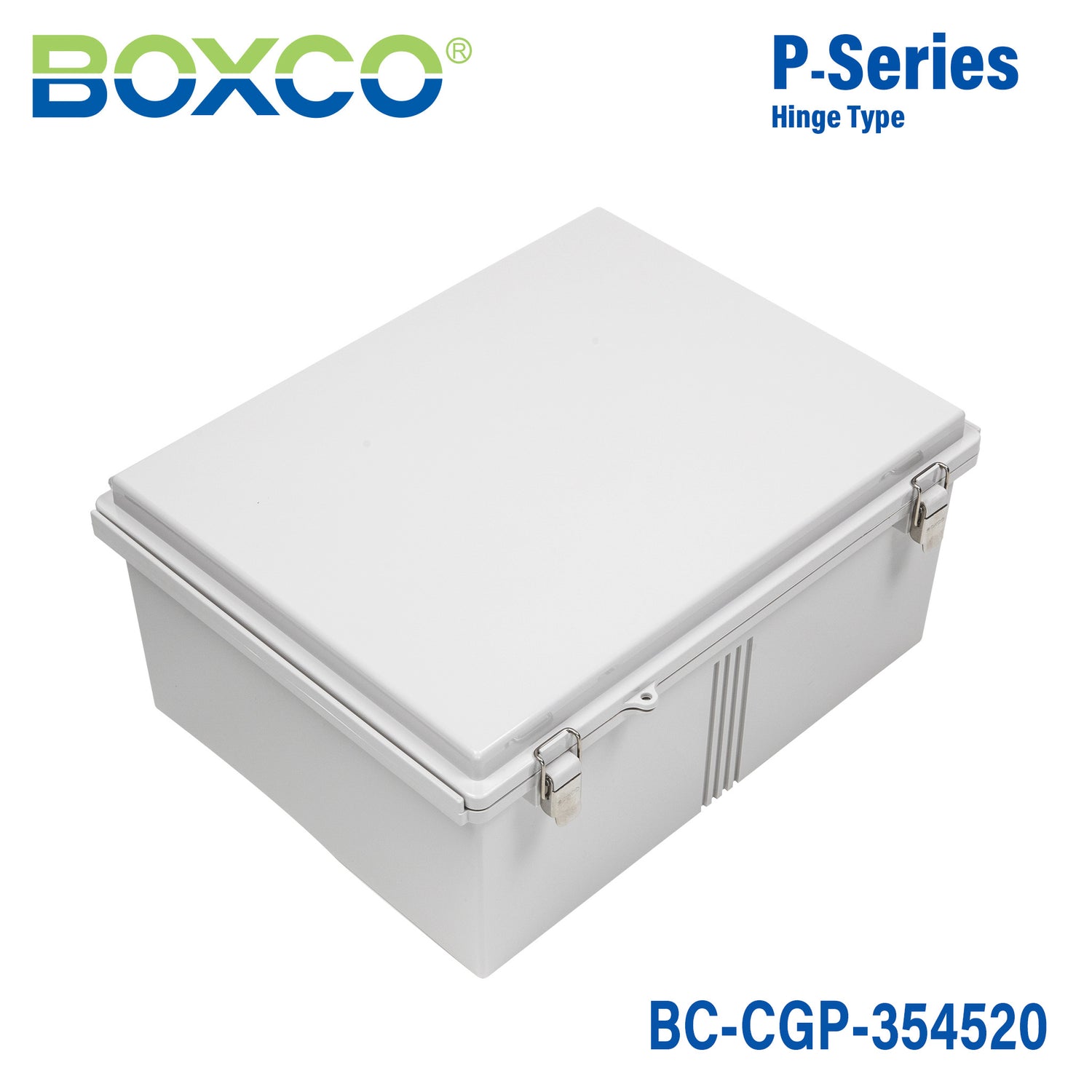

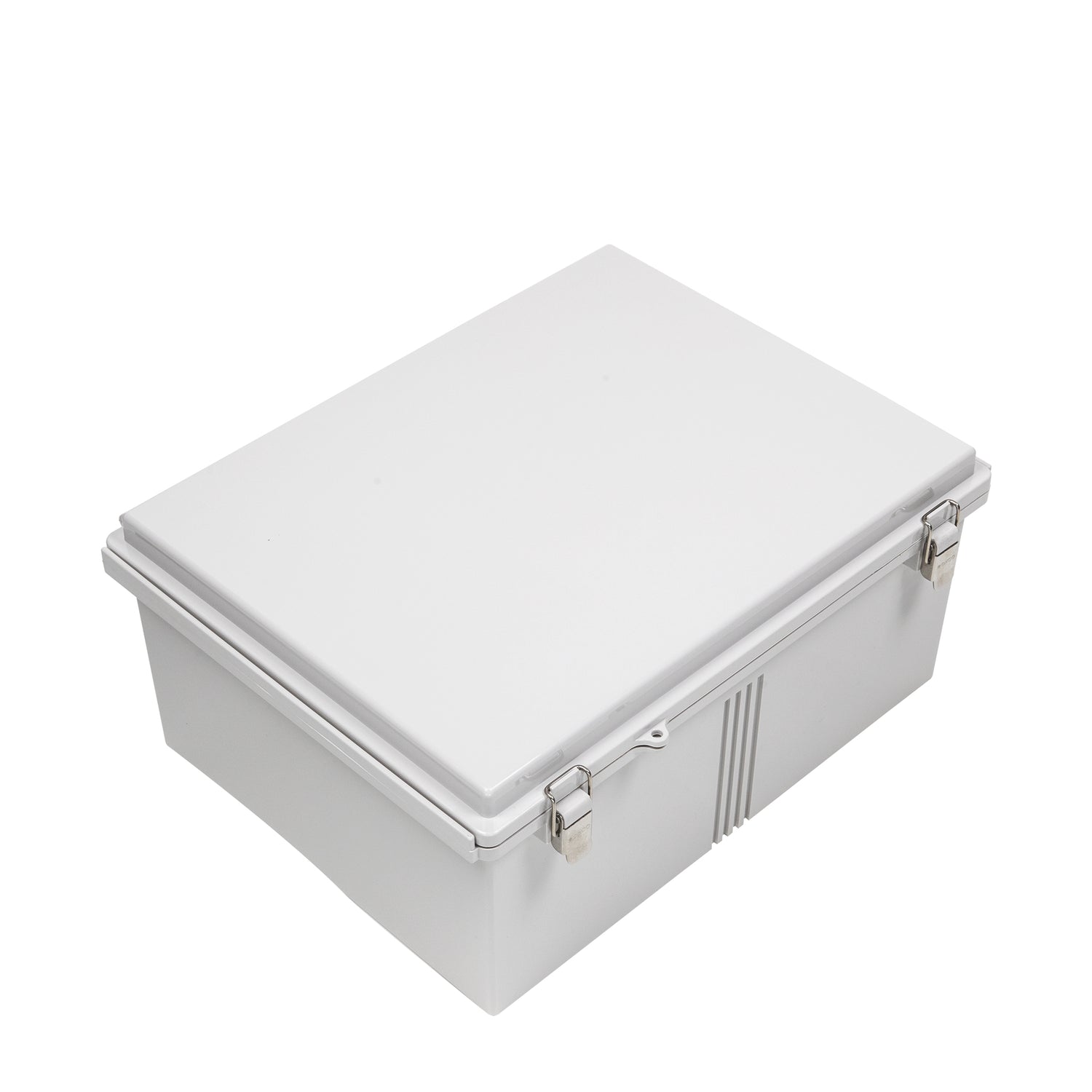

Boxco P-Series 350x450x200mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-354520
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-354520 is a 350×450×200 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-354520Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×200 mm (13.78×17.72×7.87 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

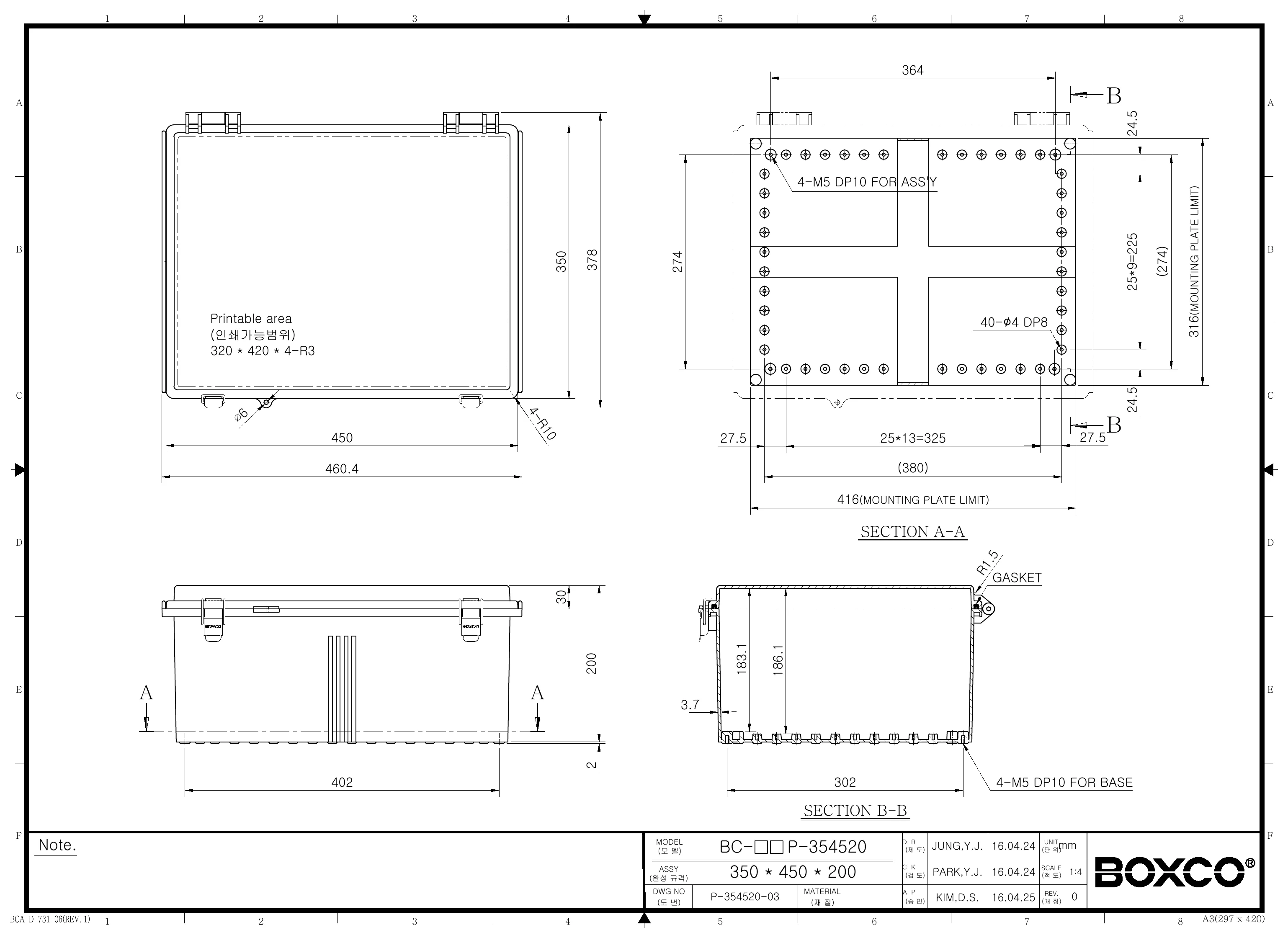

Technical drawings

BC-CGP-354520 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 350 x 450 x 200 mm plastic enclosure suited for?

This enclosure is intended for protecting electrical or electronic equipment that needs a durable non-metallic housing in indoor or outdoor environments. Its large format, molded hinge and latch design, and IP67 sealing make it a practical choice for industrial control, monitoring, and equipment protection applications where dust and water resistance matter.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. The design also includes roof protection features at both ends to help resist water penetration outdoors and reduce dust ingress when the cover is opened and closed.

What protection ratings does this model have?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also provides impact resistance appropriate for demanding industrial environments.

What material is this enclosure made from, and why does it matter?

This model is made from polycarbonate (PC) with a grey cover. The product description also notes anti-static material for protection of sensitive electronic instruments and high impact resistance to help prevent breakage during processing and use.

What is the operating temperature range for this enclosure?

The stated temperature range for this model is -40 degrees C to 110 degrees C. That range supports use in both very cold and high-heat environments where enclosure material performance is important.

What are the size and weight of this specific enclosure?

This Boxco P-Series model measures 13.78 x 17.72 x 7.87 inches, which corresponds to 350 x 450 x 200 mm. Its listed weight is 3.13 kg, making it a substantial enclosure for larger components or assemblies.

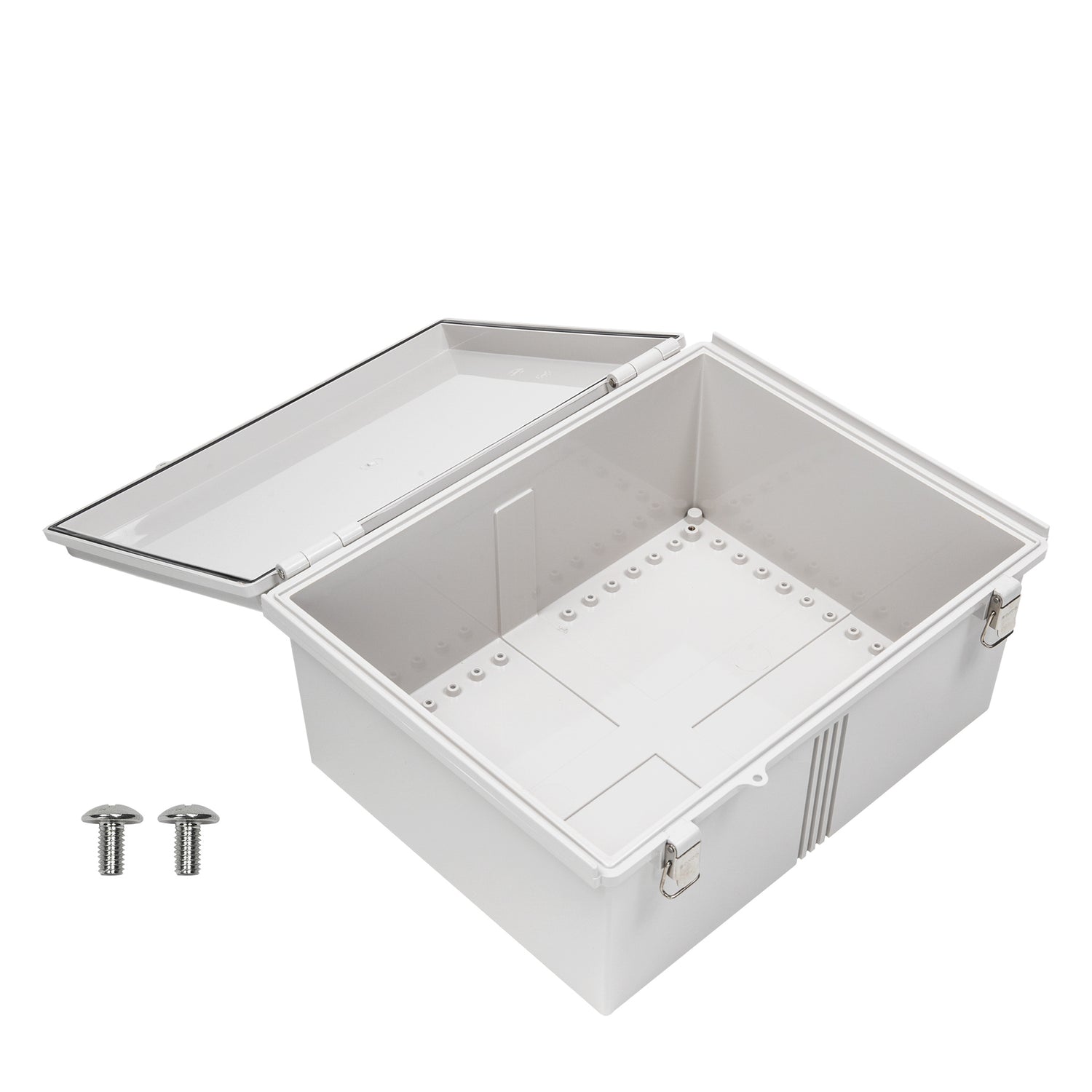

Does this enclosure support mounting internal components securely?

Yes. The description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Boxco notes these attachment points are designed to hold an internal mounting plate tightly for heavier installed equipment.
