Boxco P-Series 400x500x160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-405016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-405016 is a 400×500×160 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-405016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×160 mm (15.75×19.69×6.30 in)
Mounting plate dimension M1 × M2
358 × 457 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
4050 P (Plastic, P type), 4050 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

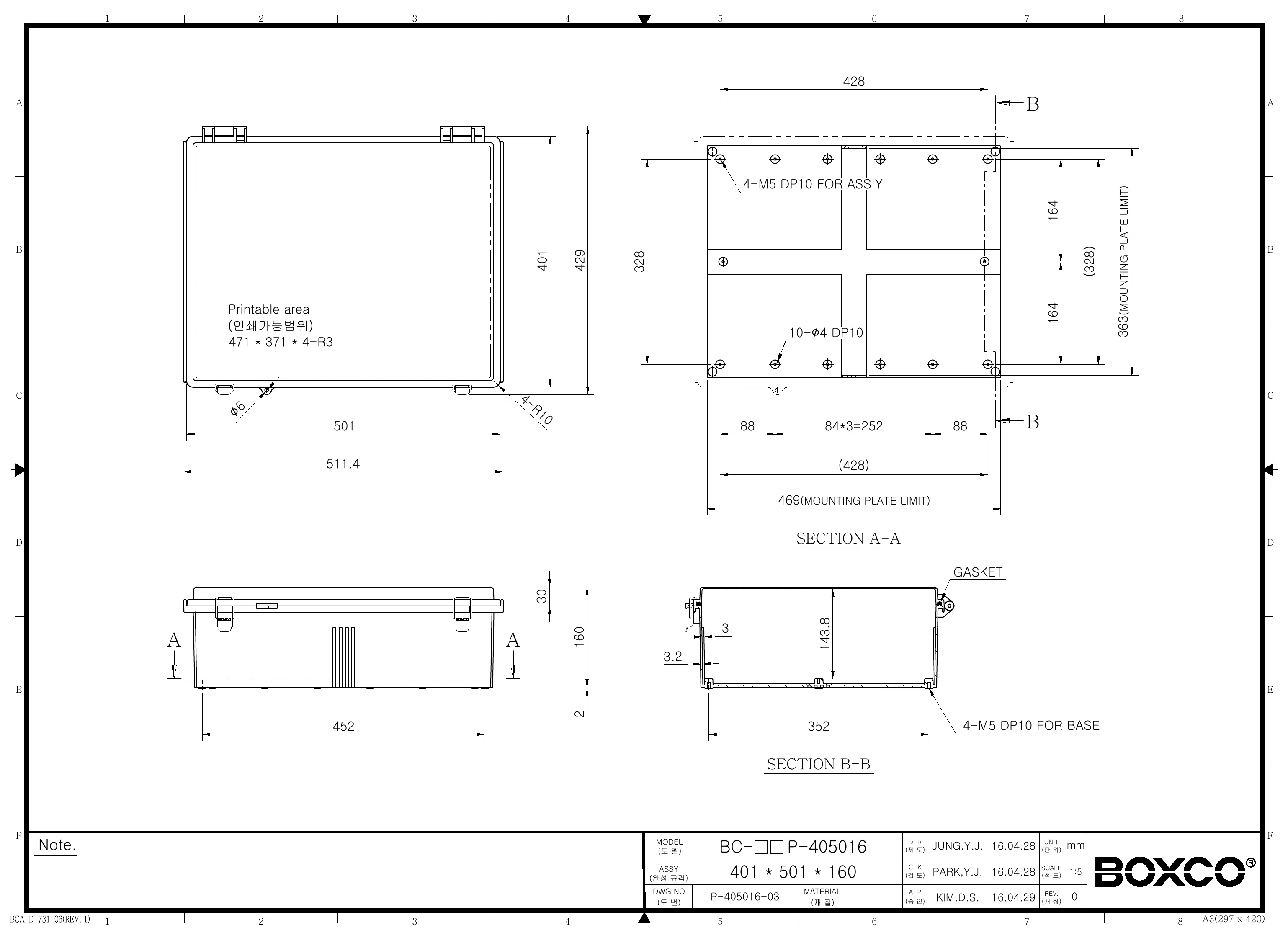

BC-CGP-405016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco BC-CGP-405016 plastic enclosure suited for?

This model is suited for protecting industrial controls, outdoor electrical housings, and other sensitive equipment that needs a sealed non-metallic enclosure. Its large 400 x 500 x 160 mm size, IP67 sealing, and IK08 impact rating make it a practical choice for demanding commercial and industrial environments.

Is this enclosure appropriate for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features to help reduce water penetration when used outside. The IP67 rating also indicates strong protection against dust and water ingress.

What are the main specifications of the BC-CGP-405016 enclosure?

This enclosure measures 15.75 x 19.69 x 6.30 inches (400 x 500 x 160 mm) and weighs 9.42 kg. It is a PC plastic enclosure with a grey cover, molded hinge and latch type closure, IP67 ingress protection, and IK08 impact resistance.

What temperature range can this Boxco P-Series enclosure handle?

The stated operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for environments with both low ambient temperatures and elevated heat exposure within that specified range.

What distinguishes this P-Series enclosure from a basic plastic enclosure box?

This model includes several upgraded features beyond a basic box, including a molded integrated hinge, latch hardware with stainless steel main parts, roof protection, injected gasket sealing, and pre-molded mounting screw nuts. It is also designed with ultraviolet stabilization and anti-static material for more demanding use cases.

Does this enclosure support heavy internal equipment or accessory mounting?

Yes. Boxco specifies pre-molded mounting screw nuts for fixing DIN rail or other equipment, along with dedicated mounting plate attachment points using brass inserted injection molding. These features are intended to help the enclosure support more securely mounted internal components.

What kind of protection does the BC-CGP-405016 provide for sensitive equipment?

The enclosure is described as using anti-static material to help protect sensitive electronic instruments from static electricity. It also uses high impact resistant material and an injected gasket system to provide strong mechanical durability along with waterproof and dust-proof performance.
