Boxco

Boxco P-Series 400x500x160mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-405016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-405016 is a 400×500×160 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-405016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×160 mm (15.75×19.69×6.30 in)
Mounting plate dimension M1 × M2
358 × 457 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
4050 P (Plastic, P type), 4050 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

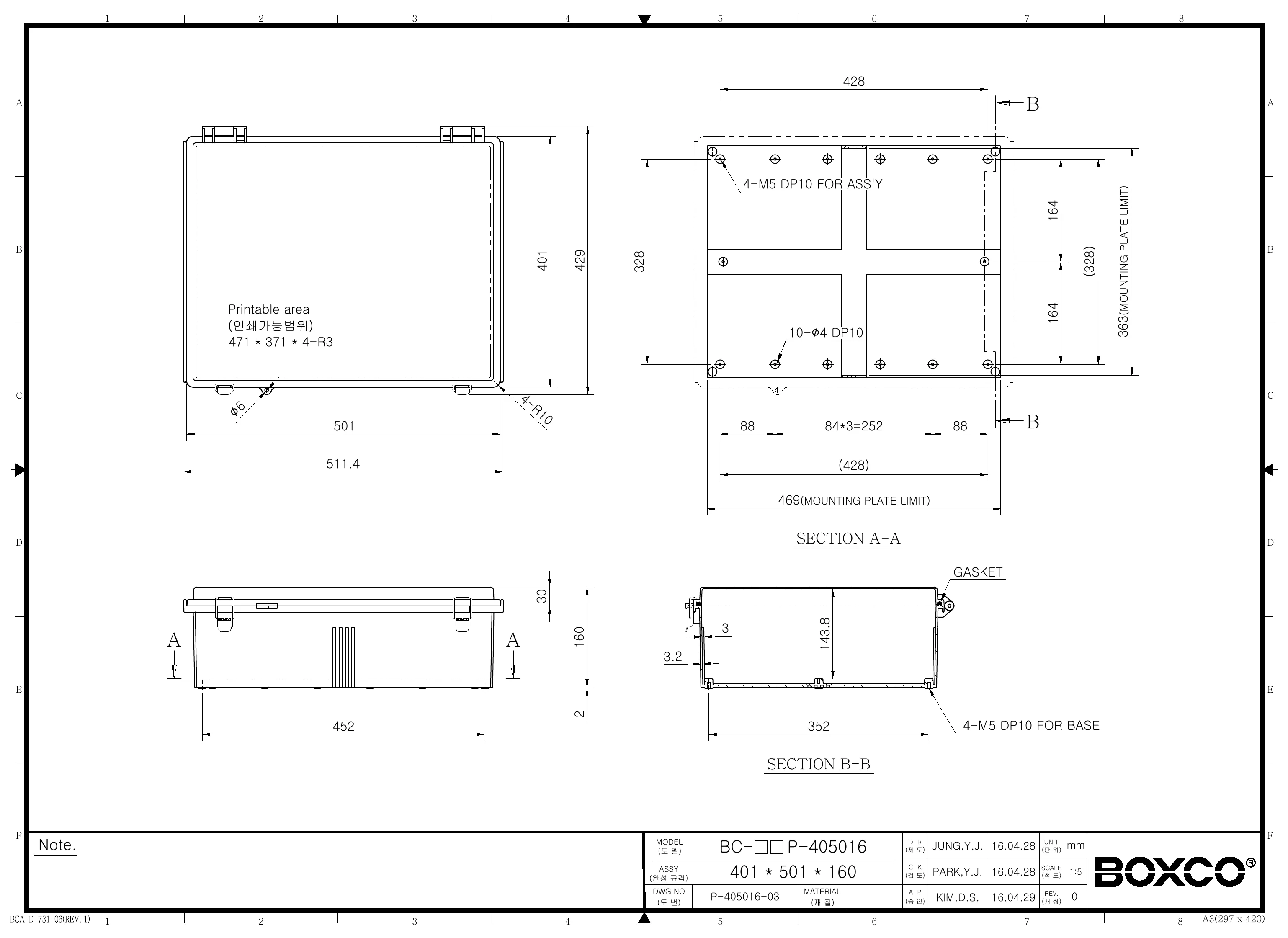

Technical drawings

BC-CTP-405016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the main use case for the Boxco P-Series BC-CTP-405016 enclosure?

This enclosure is designed to protect industrial and commercial electrical or electronic equipment in demanding environments. Its large interior, high-impact polycarbonate construction, and transparent cover make it suitable for applications where components need protection while still allowing visual inspection.

Is the BC-CTP-405016 suitable for outdoor environments?

Yes. This model includes an ultraviolet stabilizer to help it maintain performance in outdoor use, and the product description notes that only minor color change may occur over long periods. Its IP67 rating and roof protection design also help resist water and dust exposure in outdoor settings.

What protection ratings does this plastic enclosure have?

The BC-CTP-405016 is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is made from high-impact polycarbonate and includes features such as a precision-injected gasket and molded hinge and latch design for durable enclosure performance.

What are the dimensions of the Boxco P-Series BC-CTP-405016?

This enclosure measures 15.75 x 19.69 x 6.30 inches, which corresponds to 400 x 500 x 160 mm. Its larger footprint makes it a fit for applications that require more internal space for mounted equipment or components.

Does this model allow visibility into the enclosure without opening it?

Yes. The BC-CTP-405016 has a transparent cover, which allows contents to be viewed without opening the enclosure. That can be useful when visual checks are needed while keeping the enclosure closed and protected.

What temperature range can the BC-CTP-405016 enclosure handle?

This model is specified for use from -40 degrees C to 110 degrees C. That wide operating range supports use in both low-temperature and high-temperature environments where standard plastic enclosures may be less suitable.

What mounting-related features are built into this enclosure?

The enclosure includes pre-molded mounting screw nuts and dedicated attachment points for an internal mounting plate. According to the product description, these features are intended to support secure mounting of internal equipment and accessories.
