Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 400x600x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-406018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-406018 is a 400×600×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-406018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×600×180 mm (15.75×23.62×7.09 in)
Mounting plate dimension M1 × M2
357 × 556 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
4060 P (Plastic, P type), 4060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

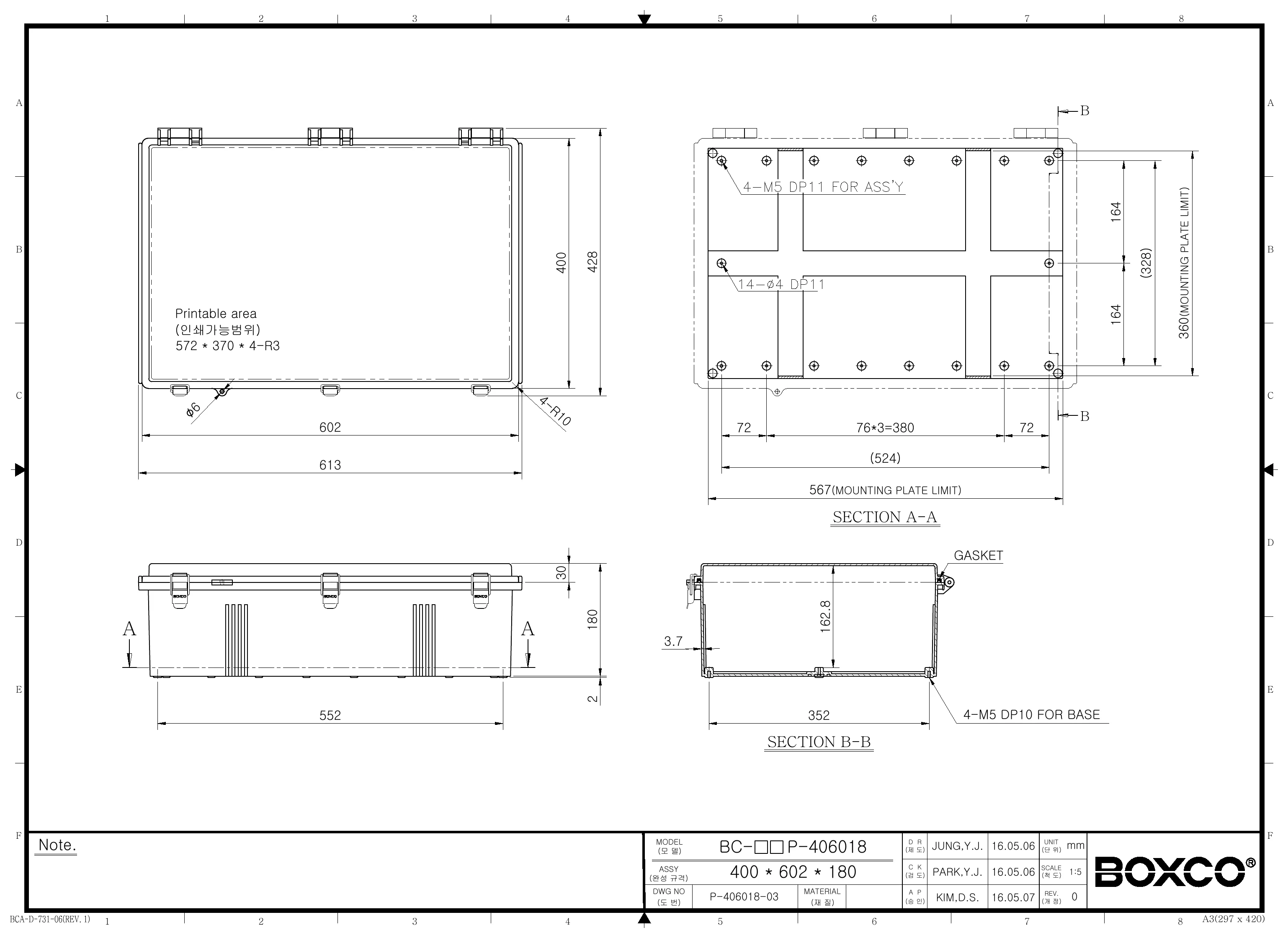

BC-CGP-406018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 400 x 600 x 180mm plastic enclosure suited for?

This enclosure is suited for protecting industrial controls, automation components, and other sensitive equipment in demanding indoor or outdoor environments. Its large 15.75 x 23.62 x 7.09 inch size and high-impact polycarbonate construction make it a practical choice for B2B installations that need durable environmental protection.

How well does this enclosure handle outdoor and washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Boxco also states that the enclosure includes ultraviolet stabilizer for outdoor use, along with roof protection features and a precision-injected gasket to help maintain waterproof and dust-proof performance.

What material is this Boxco enclosure made from, and why does it matter?

This model is made from polycarbonate (PC), a high-impact resistant plastic designed to withstand external impact and reduce breakage during machining or processing. Boxco also notes that the material includes anti-static properties to help protect sensitive electronic instruments from static electricity.

What are the key durability ratings and operating limits for this enclosure?

This enclosure carries an IP67 ingress protection rating and an IK08 impact rating. It is specified for temperatures from -40 C to 110 C, making it suitable for a wide range of industrial environments where both weather resistance and impact resistance matter.

Does this enclosure support internal equipment mounting?

Yes, Boxco includes pre-molded mounting screw nuts to help secure DIN rail or other internal equipment, and it also provides mounting plate attachment points with brass inserted injection molding for heavier internal components. These built-in features make the enclosure more practical for organized equipment layouts without requiring buyers to source a more specialized housing.

What distinguishes this model from a basic non-hinged plastic enclosure?

This model includes a molded integrated hinge and latch-type cover, which improves repeated access compared with a plain screw-cover box. Boxco also highlights stainless steel elements in the latch and hinge bearing, along with outdoor-focused features such as UV stabilization, roof protection, and a high-performance gasket.
