Boxco

Boxco P-Series 400x600x230mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-406023
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-406023 is a 400×600×230 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-406023Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×600×230 mm (15.75×23.62×9.06 in)
Mounting plate dimension M1 × M2
357 × 556 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
4060 P (Plastic, P type), 4060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

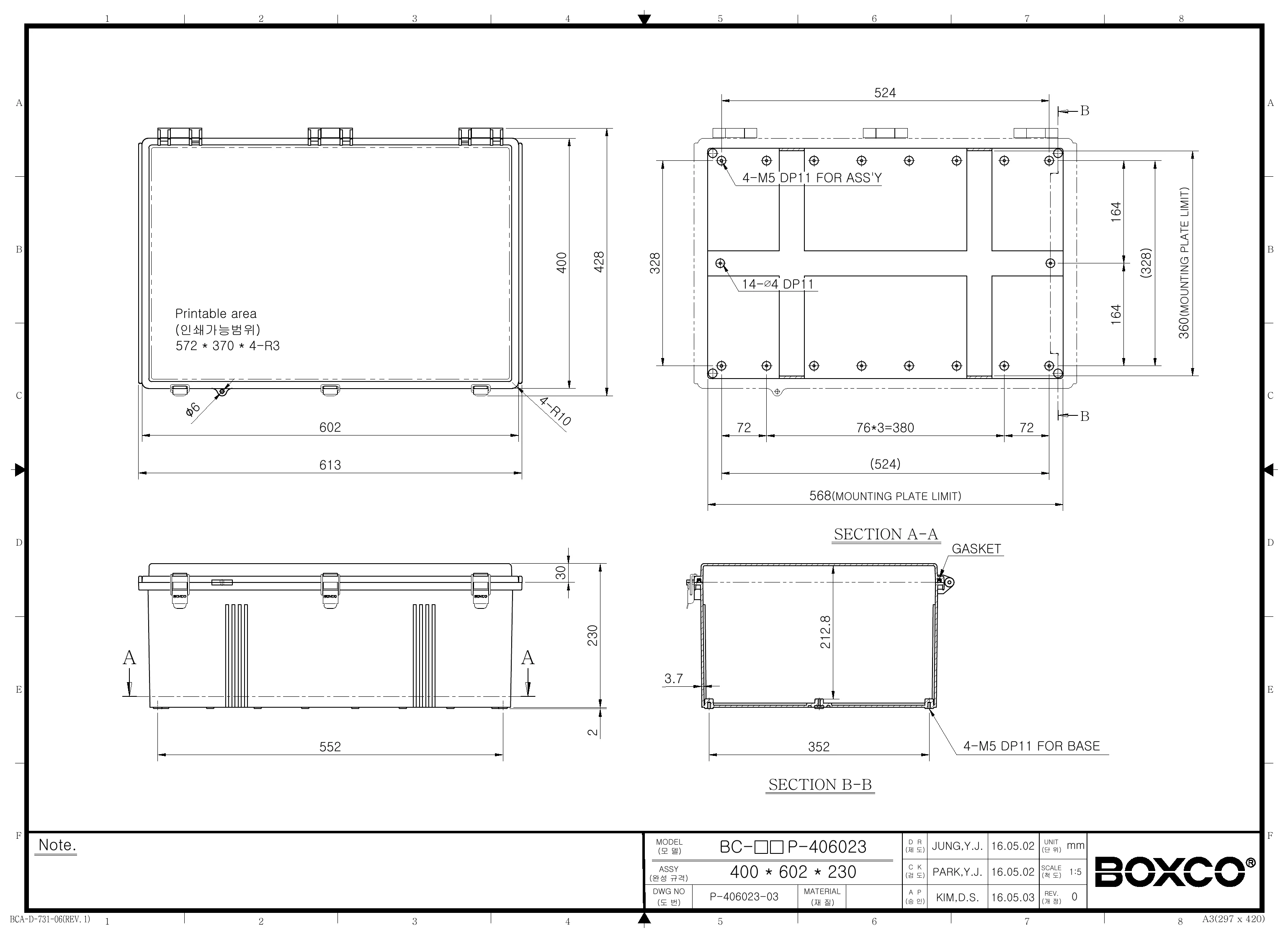

Technical drawings

BC-ATP-406023 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This model is suited for protecting industrial controls, monitoring equipment, and other sensitive electronics that need a sealed non-metallic enclosure. Its large 400 x 600 x 230 mm size, transparent cover, and durable hinged design make it practical for applications where components need to remain protected while still being visually checked.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over long periods. The enclosure is also rated IP67 for strong protection against dust and water ingress when closed properly.

How durable is this plastic enclosure against impact?

This enclosure is rated IK08, which indicates resistance to mechanical impact in demanding environments. Boxco also describes the ABS body as high impact resistant, helping it withstand external shock and reducing the risk of breakage during machining or panel modification.

What does the transparent cover offer on this model?

The transparent cover allows users to visually inspect indicators, displays, or internal equipment without opening the enclosure. That can be useful in applications where quick status checks are needed while maintaining the enclosure's protective closed condition.

What are the key environmental and material specifications for this model?

This enclosure is made from ABS and is rated for operation from -40 C to 70 C. It carries an IP67 ingress protection rating, an IK08 impact rating, and has a listed product weight of 12.012 kg.

Does this enclosure support mounting internal components?

Yes. Boxco notes pre-molded mounting screw nuts for securing items such as DIN rail and also provides internal mounting plate attachment points. These built-in mounting features make the enclosure better suited for housing heavier internal equipment than a plain empty box.

What design features distinguish this P-Series enclosure from a basic plastic box?

This model includes a molded integrated hinge with a stainless steel bearing, a latch with a stainless steel main part, roof protection geometry to help resist water and dust intrusion during cover operation, and a robot-injected gasket for sealing performance. Those features make it more specialized than a basic non-hinged utility enclosure.
