Boxco

Boxco P-Series 400x600x230mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-406023
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-406023 is a 400×600×230 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-406023Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×600×230 mm (15.75×23.62×9.06 in)
Mounting plate dimension M1 × M2
357 × 556 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
4060 P (Plastic, P type), 4060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

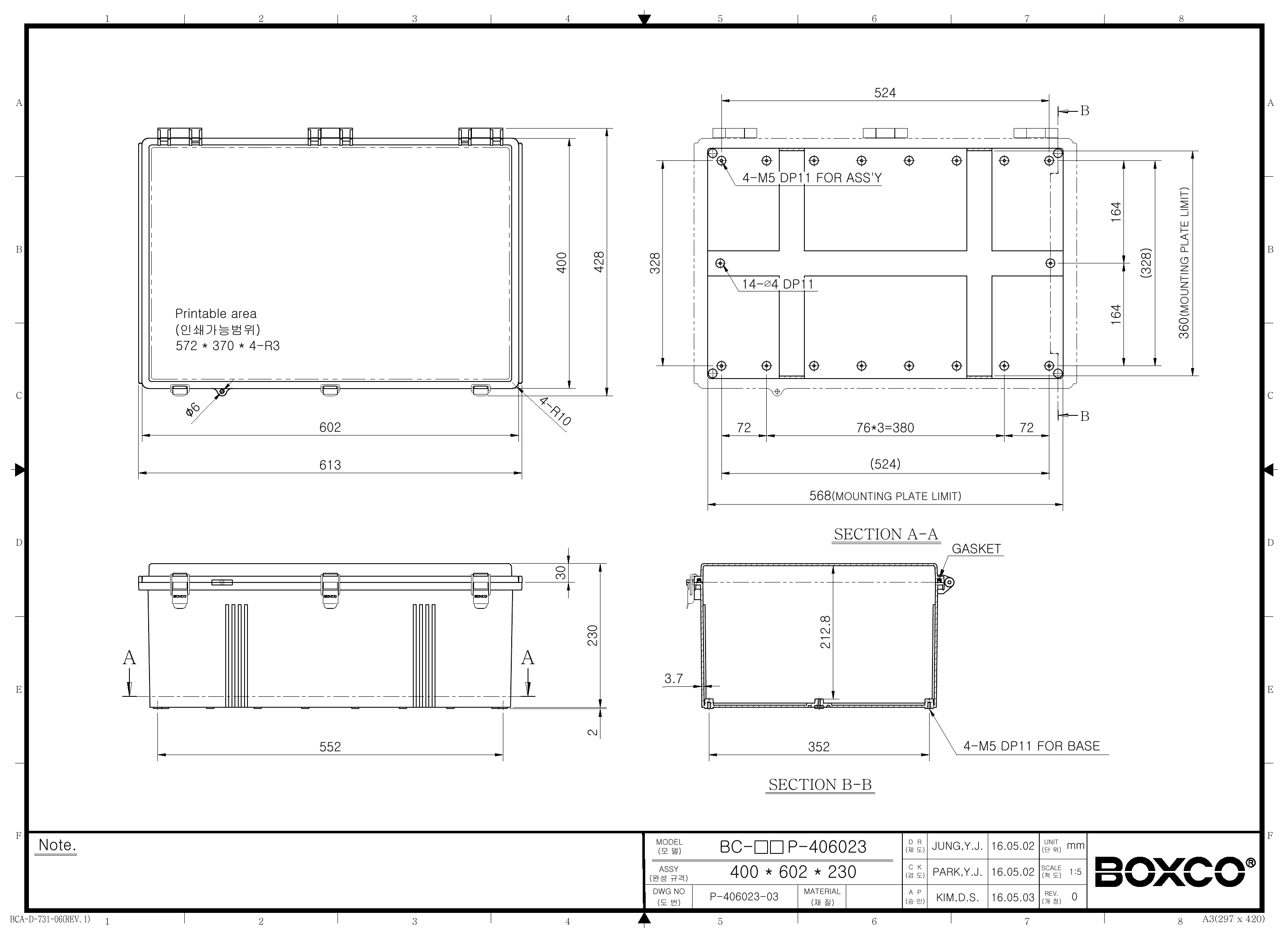

BC-CTP-406023 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor exposure and is rated IP67 for protection against dust and water ingress. The roof-protection design on both ends also helps reduce water and dust penetration when the cover is opened or closed.

What material is used in this Boxco P-Series enclosure?

This model uses polycarbonate (PC) and has a transparent cover. The product description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity. Boxco describes the housing as high impact resistant, which supports its IK08 impact rating.

What are the dimensions of this enclosure?

This enclosure measures 15.75 x 23.62 x 9.06 inches, which corresponds to 400 x 600 x 230 mm. That makes it a large-format enclosure intended for applications that need more internal space than smaller junction or control boxes. The listed product weight is 13.281 kg.

How does this model compare with a standard opaque enclosure?

This version has a transparent cover, which is useful when you need to visually inspect indicators, displays, or internal components without opening the enclosure. It also uses a molded hinge and latch-style cover design instead of a simple screw-fastened lid. Those features can make access and inspection more convenient while keeping the IP67 enclosure format.

What operating temperature range does this enclosure support?

The specified operating temperature range for this model is -40 degrees C to 110 degrees C. That range supports use in both cold and high-heat environments, provided the overall application is designed within the enclosure's stated ratings. Buyers comparing enclosures for harsher environments often use this temperature range as a key selection point.

What kinds of equipment is this enclosure commonly used to protect?

This enclosure is intended for housing electrical or electronic equipment that needs strong environmental protection and impact resistance. Its anti-static material, transparent cover, and internal fixing points make it relevant for control, monitoring, and instrumentation applications where protected visibility and durable housing matter. Final suitability depends on the size and protection needs of the equipment being housed.

Does this enclosure support internal mounting hardware or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts, which can be used to secure DIN rail or other equipment inside the enclosure. It also has mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed more securely for heavier installed equipment.
