Boxco

Boxco P-Series 530x630x185mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-506018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-506018 is a 530×630×185 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-506018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×185 mm (20.87×24.80×7.28 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

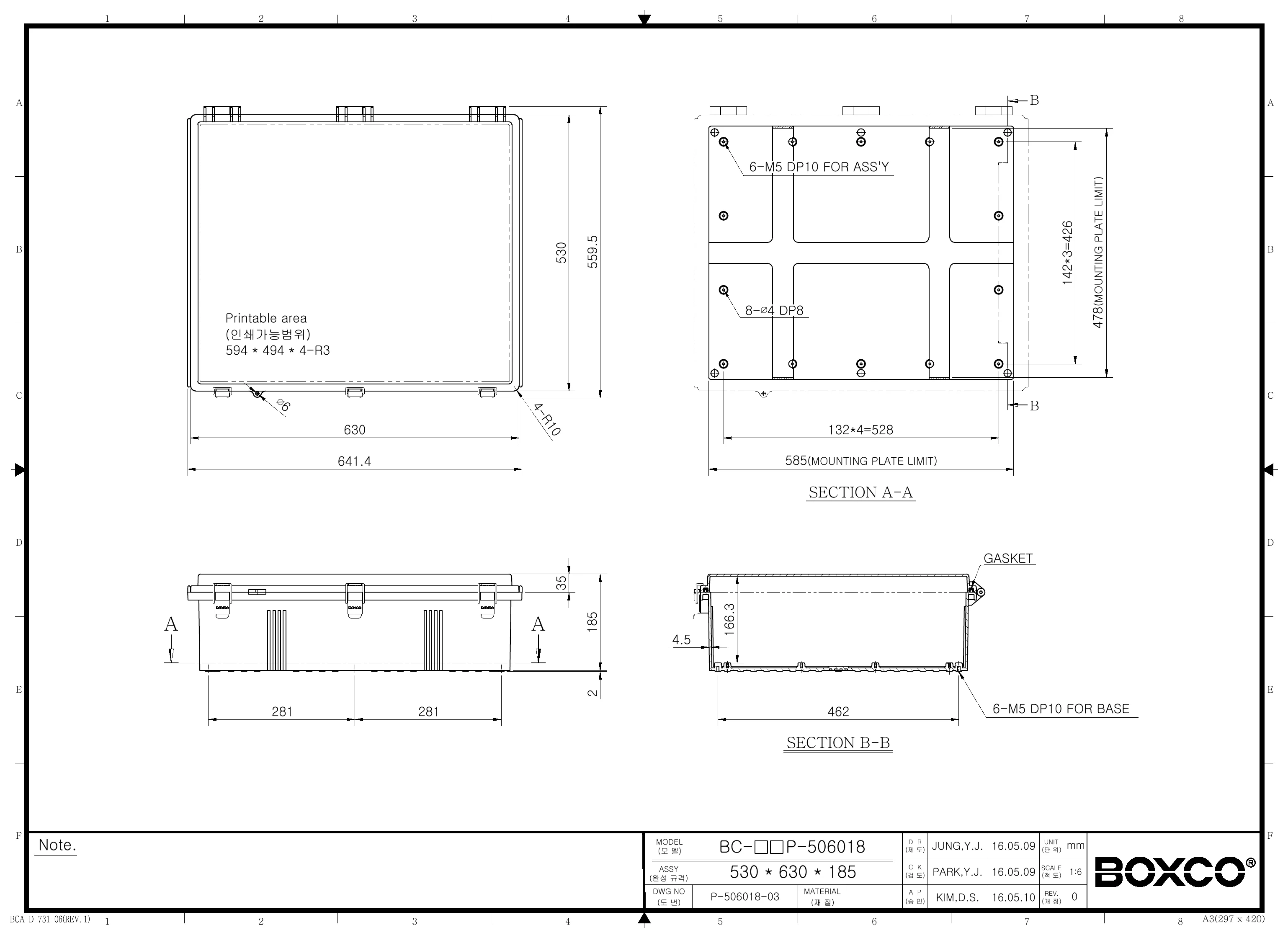

Technical drawings

BC-CGP-506018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco P-Series plastic enclosure is intended for protecting electrical or electronic equipment in industrial and outdoor environments. Its large internal size and impact-resistant construction make it suitable for applications that need a durable housing with strong environmental protection.

What are the dimensions of this enclosure?

This model measures 20.87 x 24.80 x 7.28 inches, which is 530 x 630 x 185 mm. It is a large-format enclosure designed for applications that need substantial internal space.

How well does this enclosure protect against dust and water?

This enclosure is rated IP67, indicating strong protection against dust ingress and water exposure. Boxco also describes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce noticeable color change over time.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes high impact resistance and anti-static material characteristics for protecting sensitive electronic instruments.

What is the impact rating of this enclosure?

This enclosure carries an IK08 impact rating. That makes it a good option for environments where the housing may be exposed to mechanical impact or rough service conditions.

What temperature range can this enclosure handle?

This Boxco enclosure is specified for use from -40 °C to 110 °C. That wide operating range supports use in both cold and high-heat environments, depending on the overall application requirements.

What design features distinguish this P-Series enclosure from a basic plastic box?

This model includes molded hinge and latch construction, pre-molded mounting screw nuts, mounting plate attachment points, roof protection geometry, and a gasket produced for strong sealing performance. These features make it more specialized than a basic general-purpose box, especially for demanding industrial or outdoor enclosure needs.
