Boxco

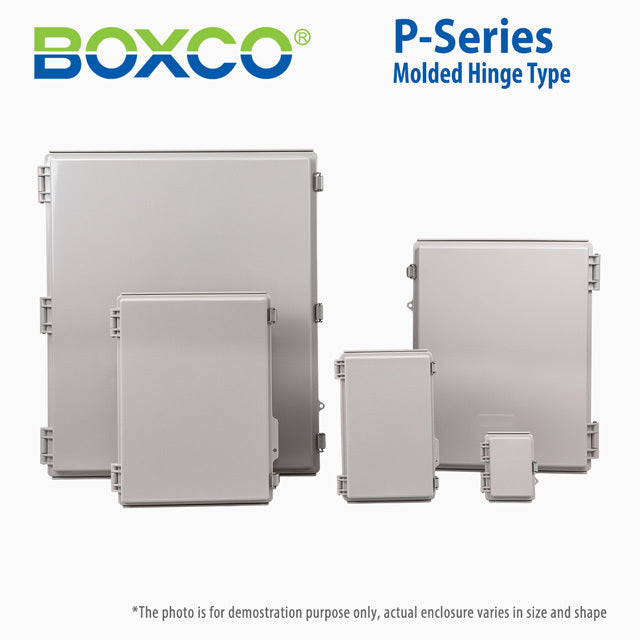

Boxco P-Series 530x630x255mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-506025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-506025 is a 530×630×255 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

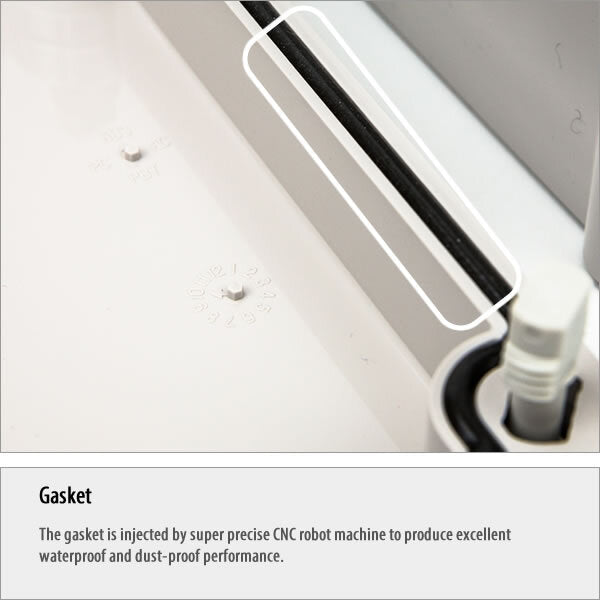

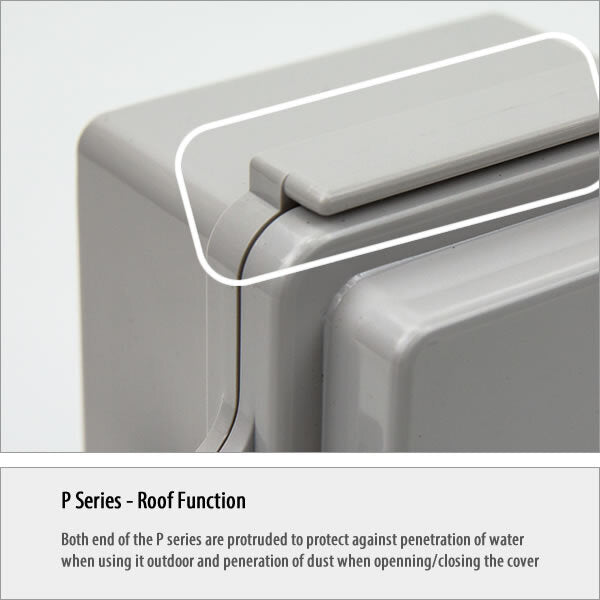

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.

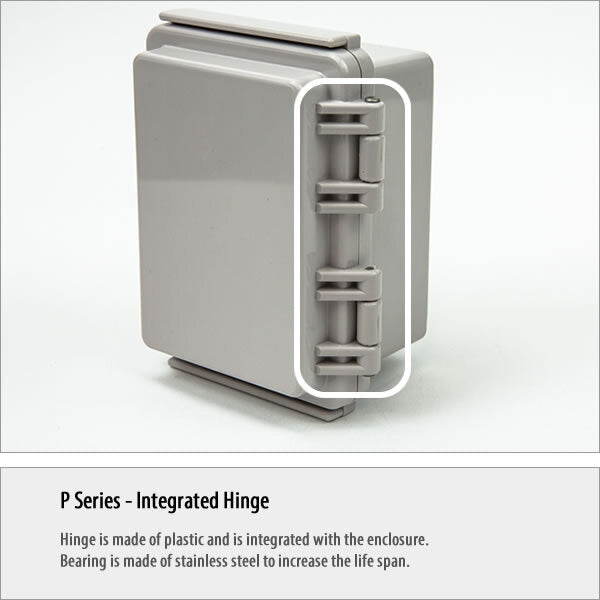

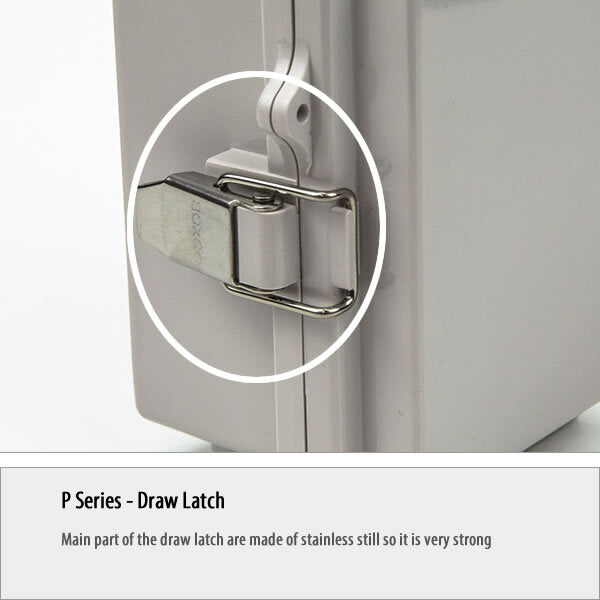

  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-506025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×255 mm (20.87×24.80×10.04 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

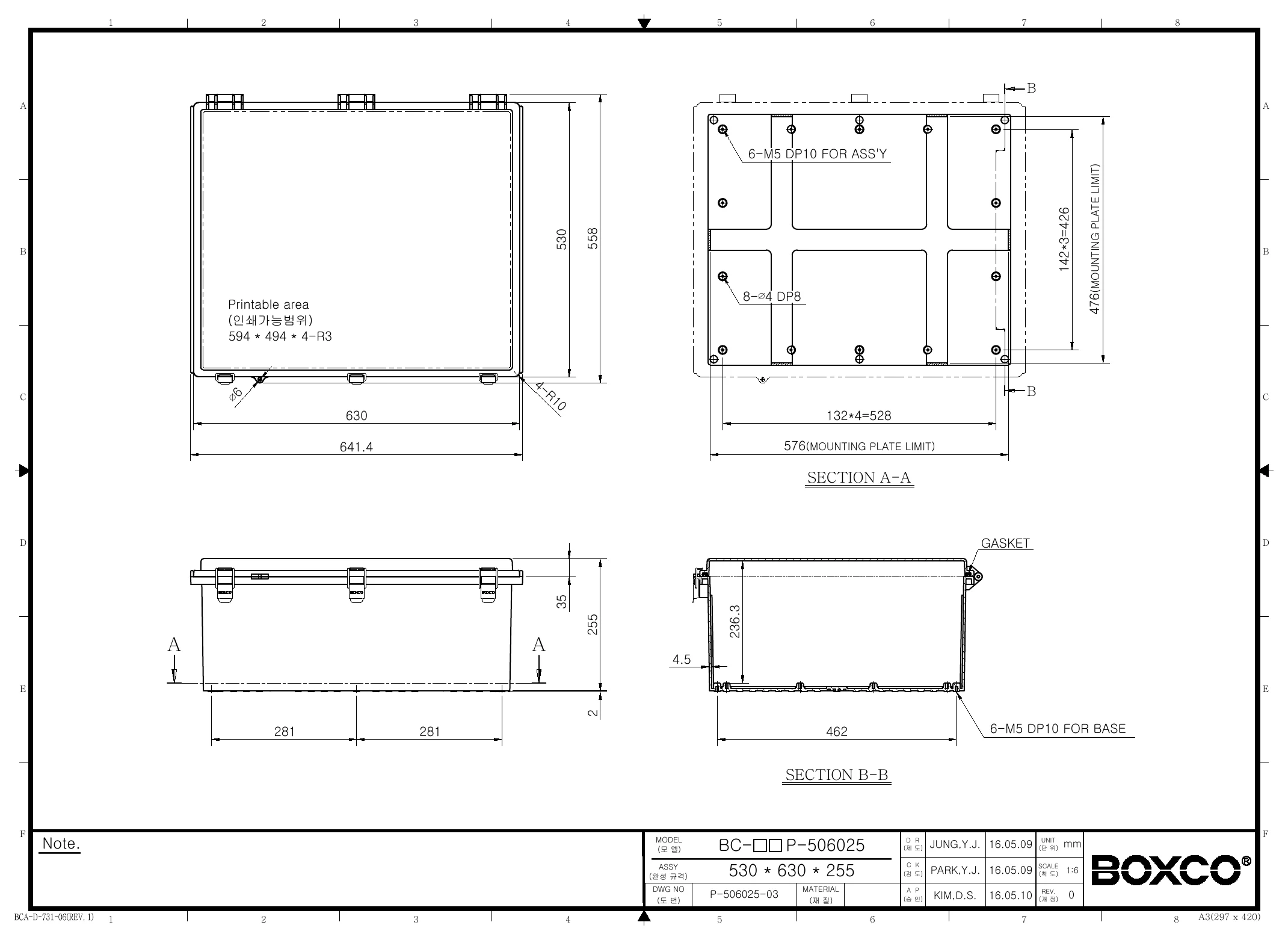

Technical drawings

BC-CTP-506025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-506025 commonly used for?

This enclosure is suited for protecting industrial controls, monitoring equipment, and other sensitive electronic components in indoor or outdoor environments. Its large interior, transparent cover, and high-impact polycarbonate construction make it a practical choice when equipment needs both protection and visual inspection.

What are the key size and material specifications for this enclosure?

The BC-CTP-506025 measures 20.87 x 24.80 x 10.04 inches (530 x 630 x 255 mm). It is made from polycarbonate (PC), uses a transparent cover, and has a molded hinge and latch-style closure. The listed product weight is 21.495 kg.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes an ultraviolet stabilizer for outdoor use and roof protection features that help reduce water and dust penetration during cover operation.

How durable is the BC-CTP-506025 for demanding industrial settings?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. The latch main part is stainless steel, and the integrated hinge includes a stainless steel bearing to improve service life under repeated use.

What temperature range can this plastic enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. That makes this model suitable for environments with both low-temperature exposure and elevated heat conditions within that rated range.

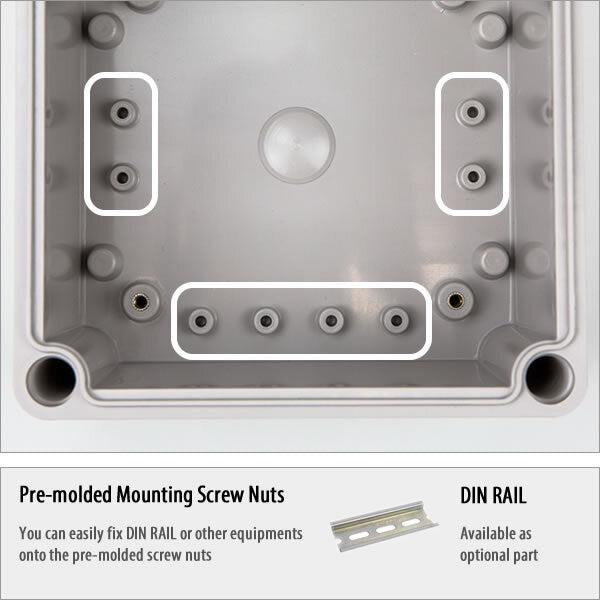

Does this enclosure support mounting internal components and accessories?

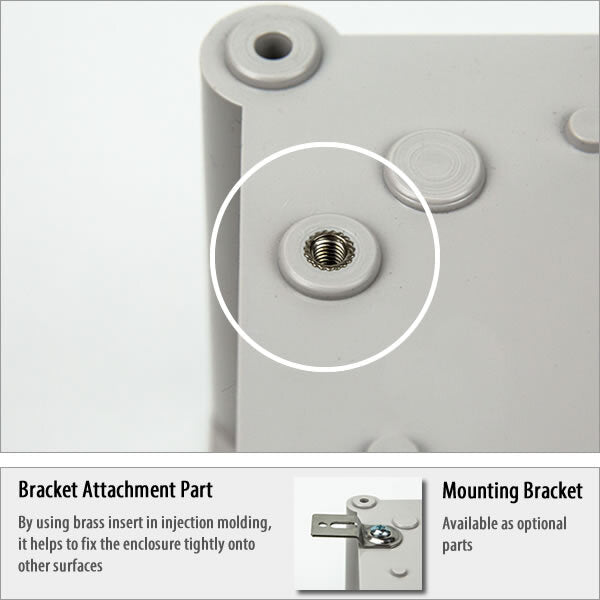

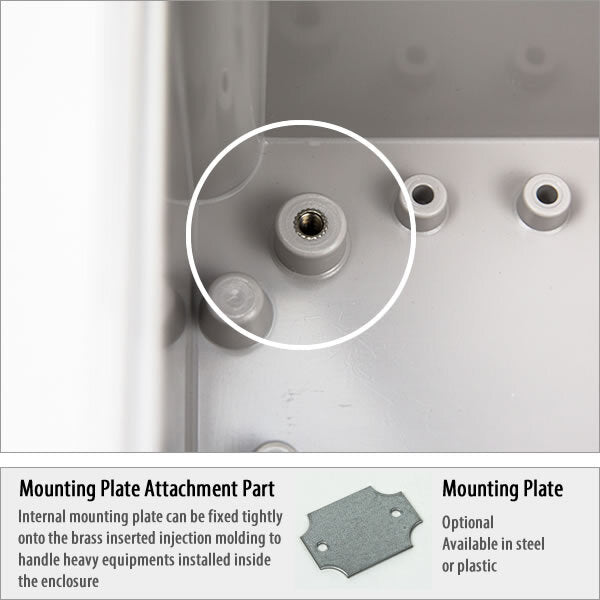

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding for tighter support of heavier internal equipment.

What features help this model protect sensitive equipment inside the enclosure?

The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It also uses a precision-injected gasket designed to provide strong waterproof and dust-proof performance, helping protect internal components from environmental exposure.
