Boxco P-Series 530x730x185mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-507018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-507018 is a 530×730×185 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-507018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×185 mm (20.87×28.74×7.28 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

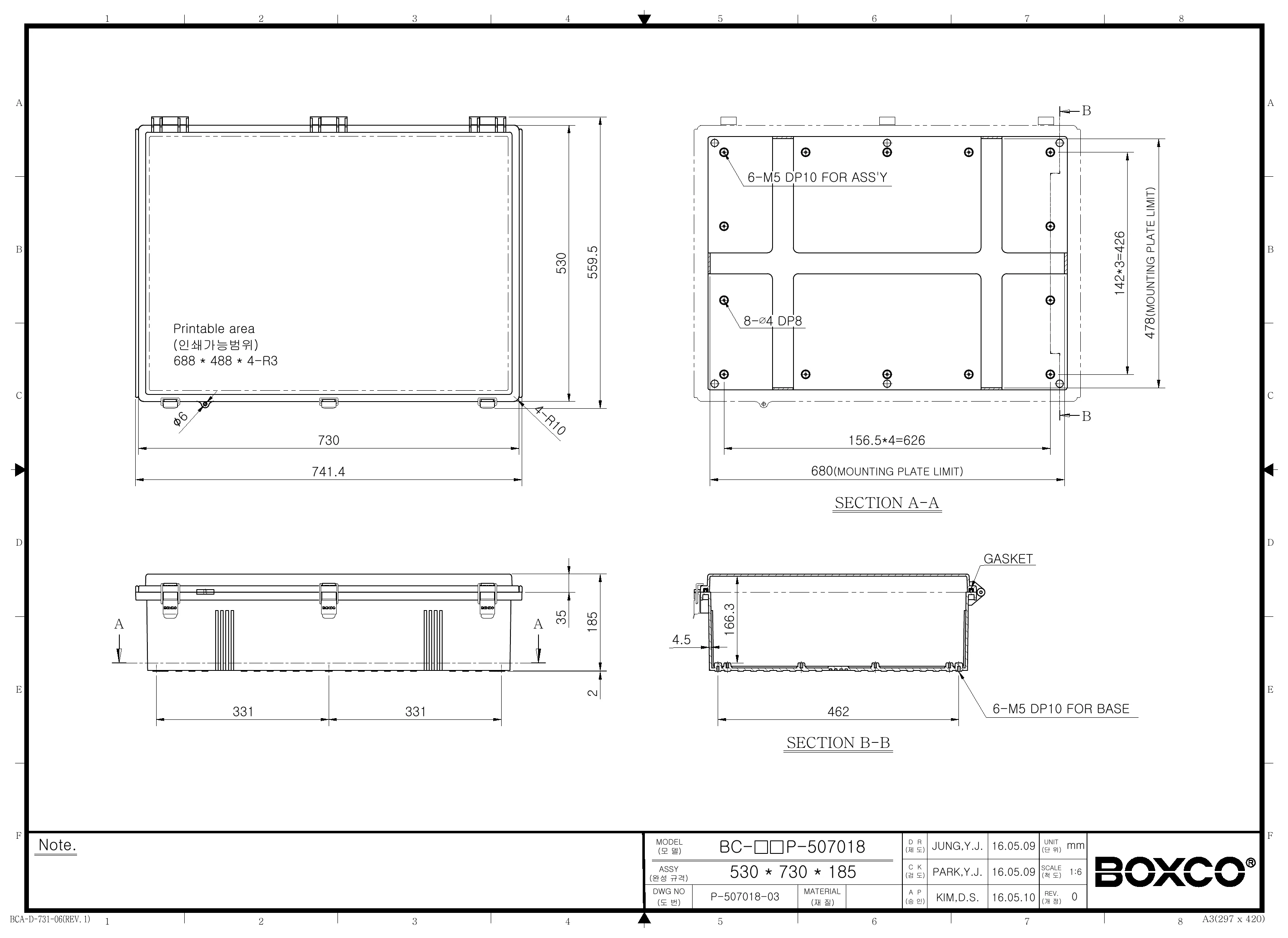

Technical drawings

BC-CGP-507018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CGP-507018 enclosure best suited for?

This enclosure is suited to protecting larger electrical or electronic assemblies that need a sealed non-metallic housing. Its molded hinge-and-latch design, large internal volume, and impact-resistant polycarbonate construction make it a practical choice for industrial control, monitoring, and outdoor equipment protection where a durable enclosure is needed.

Is the BC-CGP-507018 suitable for outdoor environments?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer for outdoor use, and the design includes roof protection features at both ends to help reduce water and dust penetration during cover operation. With an IP67 rating, it is built for strong resistance to dust ingress and temporary water exposure.

What are the key material and durability characteristics of this enclosure?

This model is made from polycarbonate and is rated IK08 for impact resistance. The product description also notes anti-static material for protecting sensitive instruments from static electricity and high impact resistance to reduce breakage during machining or press processing.

What size is the Boxco BC-CGP-507018 enclosure?

This model measures 20.87 x 28.74 x 7.28 inches, which is 530 x 730 x 185 mm. That larger format gives it more room for equipment layouts that need a deeper and wider plastic enclosure than smaller junction-box styles.

What internal mounting features does this enclosure include?

The enclosure includes pre-molded mounting screw nuts so DIN rail or other equipment can be secured more easily. It also includes mounting plate attachment points with brass-inserted injection molding, which helps support heavier internal equipment more securely.

How does this model differ from a basic plastic enclosure box?

This P-Series model adds several higher-spec features beyond a simple hinged plastic box, including IP67 sealing, IK08 impact resistance, UV-stabilized outdoor material, anti-static properties, and a molded hinge with stainless steel bearing components. It also uses a stainless steel draw-latch main part and a robot-injected gasket for stronger waterproof and dust-proof performance.

What operating temperature range does the BC-CGP-507018 support?

The listed operating temperature range is -40 degrees C to 110 degrees C. That gives this enclosure a broad temperature span for demanding indoor or outdoor environments where equipment housings may be exposed to cold or elevated heat.
