Boxco P-Series 530x730x255mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-507025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-507025 is a 530×730×255 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-507025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×255 mm (20.87×28.74×10.04 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

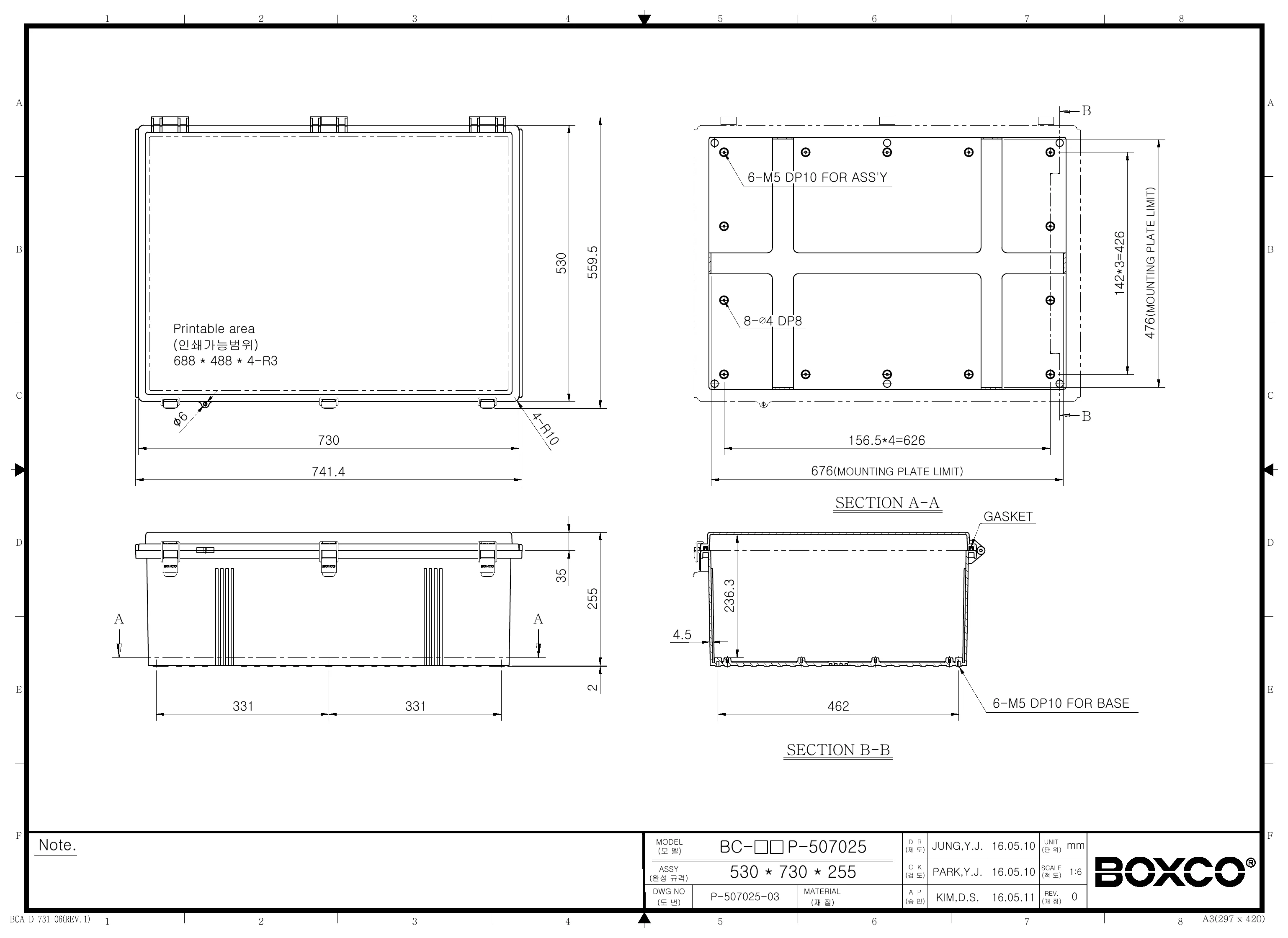

BC-CGP-507025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco BC-CGP-507025 enclosure best suited for?

This model is designed for protecting larger electrical or control equipment in indoor or outdoor industrial environments where dust and water resistance matter. Its molded hinge and latch design, UV-stabilized polycarbonate construction, and impact resistance make it a practical choice for control, automation, and instrumentation enclosures that need a durable sealed housing.

Is the BC-CGP-507025 suitable for outdoor use?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer to support outdoor use and reduce noticeable color change over time. The enclosure also has IP67 protection and roof-style edge protection that helps limit water and dust ingress during outdoor use.

What are the main material and protection specs for this enclosure?

The BC-CGP-507025 is a polycarbonate enclosure with a grey cover and molded hinge and latch construction. It is rated IP67 for dust-tight and water-resistant protection, IK08 for impact resistance, and is built for operation from -40 degrees C to 110 degrees C.

How large is the Boxco BC-CGP-507025 enclosure?

This enclosure measures 20.87 x 28.74 x 10.04 inches, which is 530 x 730 x 255 mm. That larger format makes it better suited to applications needing more internal space than compact junction or small control enclosures.

What makes this P-Series enclosure different from a standard plastic box?

Compared with a basic plastic enclosure, this model adds several application-focused features including a stainless-steel draw latch component, integrated plastic hinge with stainless bearing, pre-molded mounting screw nuts, and dedicated mounting plate attachment points. The injected gasket and roof-protection shape are also intended to improve sealing performance for demanding environments.

Can the BC-CGP-507025 be used around sensitive electronic equipment?

Yes, Boxco states that anti-static material is used in this enclosure to help protect sensitive electronic instruments from static electricity. That makes it a stronger fit for applications where internal components are more vulnerable than in a general-purpose utility box.

What is the warranty and product weight for this model?

The listed warranty period for the BC-CGP-507025 is 1 year. The enclosure weight is 24.144 kg, which reflects its large size and heavy-duty construction.
