Boxco P-Series 630x830x185mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-608018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-608018 is a 630×830×185 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-608018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×185 mm (24.80×32.68×7.28 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

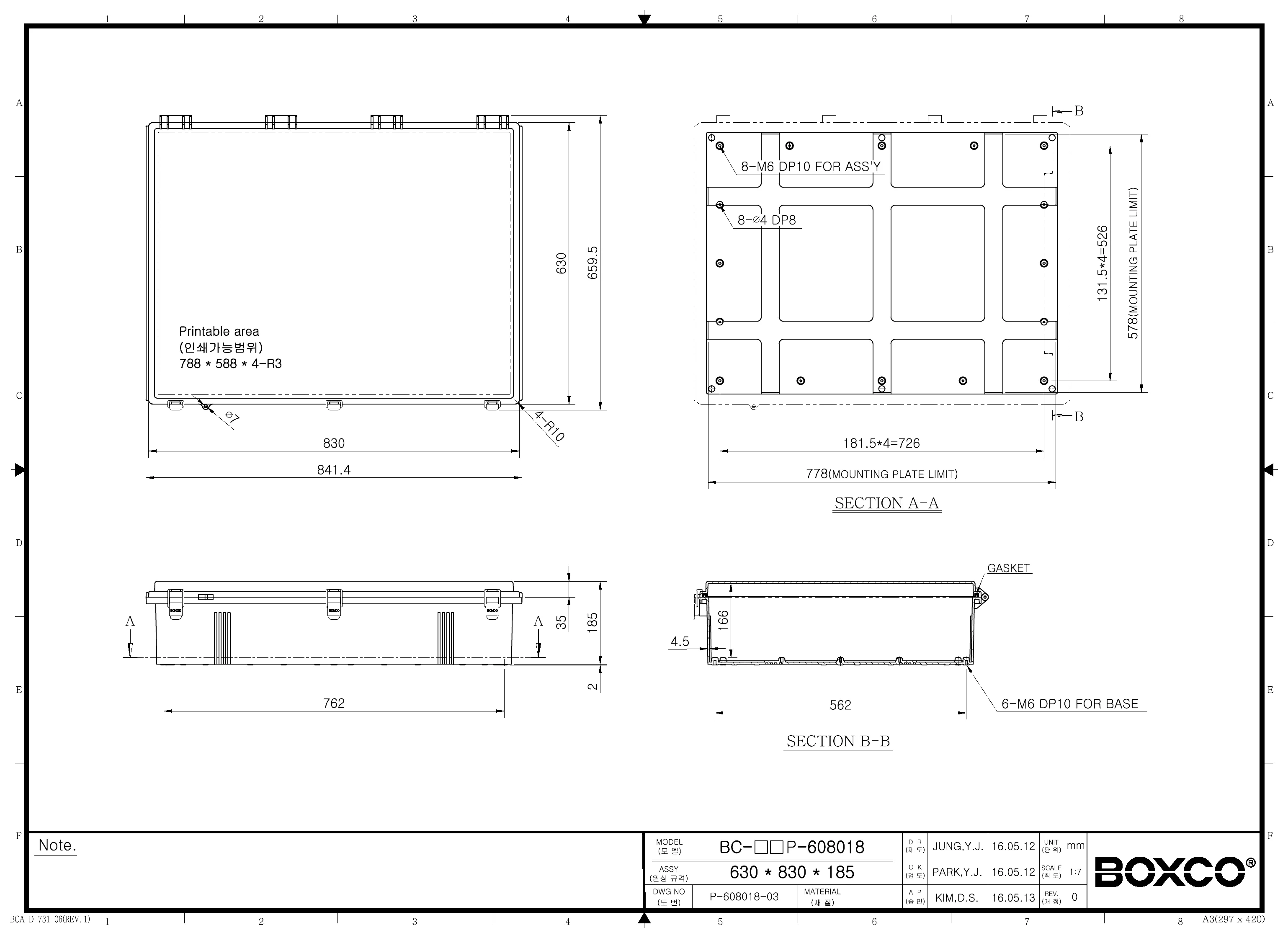

BC-CTP-608018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-608018 enclosure suited for?

This enclosure is suited for protecting industrial controls, monitoring devices, and other equipment that need a large non-metallic housing with environmental protection. Its large 24.80 x 32.68 x 7.28 inch size, molded hinge-and-latch design, and transparent cover make it useful where internal components need to be protected while still remaining visible for inspection.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer for outdoor usage, helping reduce color change over long-term exposure. The design also includes roof protection features and an injected gasket to support waterproof and dust-proof performance.

What do the IP67 and IK08 ratings mean for this model?

The IP67 rating indicates this enclosure is built for strong protection against dust ingress and temporary water exposure. The IK08 rating indicates resistance to external mechanical impact, which aligns with the product description's focus on high impact-resistant construction.

What are the main material and cover details for BC-CTP-608018?

This model is made from PC and uses a transparent cover. The transparent cover is useful when buyers want to visually check indicators, displays, or internal equipment without opening the enclosure.

What temperature range can this plastic enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That makes it a good fit for demanding environments where the enclosure may be exposed to both low and high temperatures.

Does this enclosure support mounting internal components?

Yes. The product description states it has pre-molded mounting screw nuts for fixing DIN rail or other equipment, and mounting plate attachment points with brass-inserted injection molding for securing heavier internal equipment. These built-in features support organized internal equipment mounting within the enclosure.
