Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 90x120x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-091207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-091207 is a 90×120×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-091207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×70 mm (3.54×4.72×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

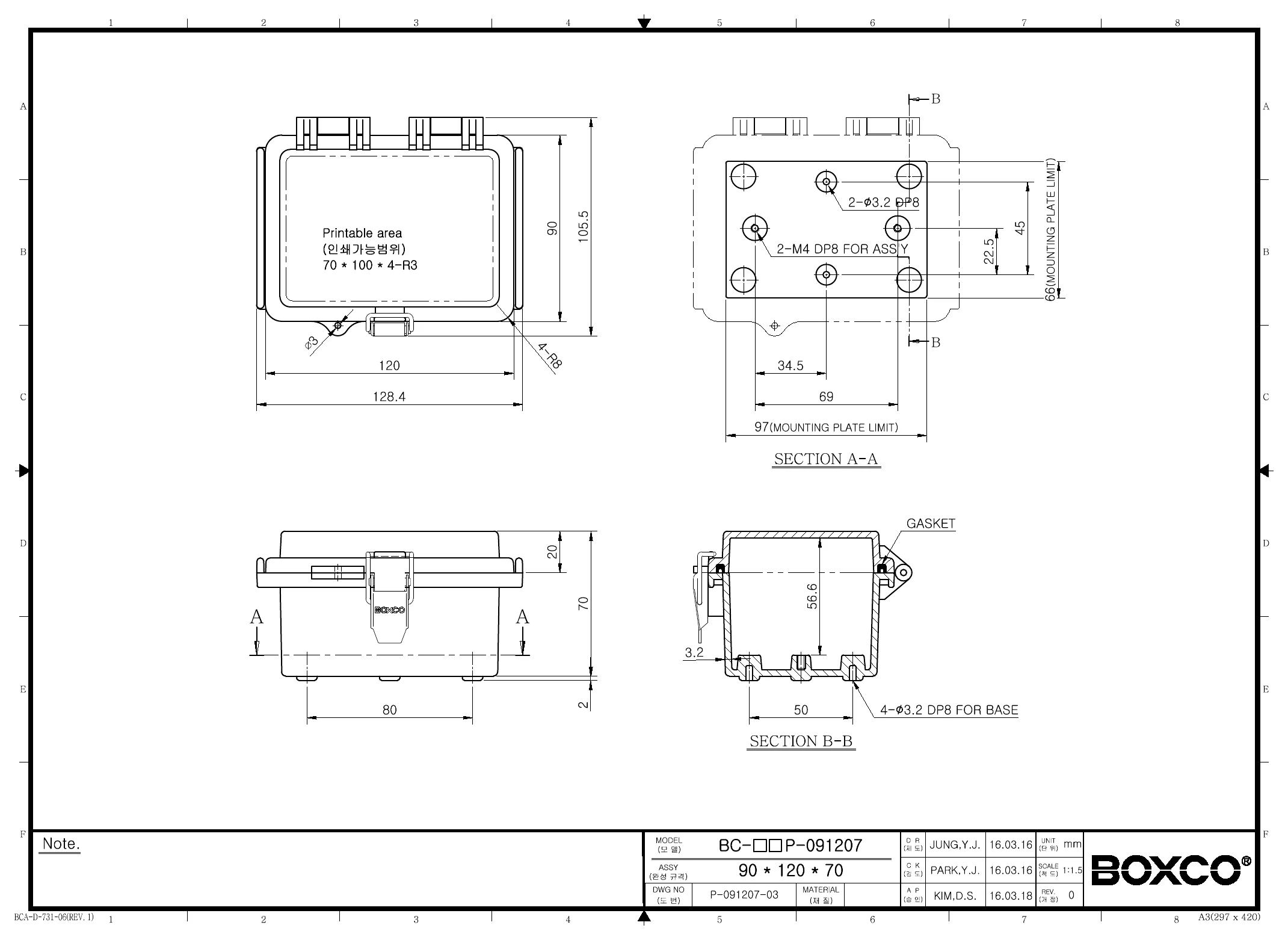

Technical drawings

BC-CGP-091207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco P-Series BC-CGP-091207 enclosure?

This model is a plastic enclosure made from PC with a grey cover and molded hinge-and-latch design. Its external size is 3.54 x 4.72 x 2.76 inches (90 x 120 x 70 mm), and it weighs 0.224 kg. It is rated IP67 for dust and water resistance and IK08 for impact resistance.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. The P-Series design also includes roof protection features to help reduce water and dust intrusion when the cover is opened or closed.

What environmental conditions can this enclosure handle?

This model is specified for temperatures from -40 degrees C to 110 degrees C. It also carries an IP67 rating for dust-tight and water-resistant performance. That makes it suitable for demanding indoor and outdoor industrial environments where sealing and temperature range matter.

Is this enclosure a good choice for protecting sensitive electronic equipment?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The polycarbonate construction is also described as high impact resistant, which adds physical protection for housed components.

How does this model differ from a basic plastic enclosure?

This P-Series model combines several protective features beyond a basic box, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and an integrated hinge with stainless steel bearing. It also uses a stainless steel draw latch and precision-injected gasket to improve durability and environmental protection.

Does this enclosure support internal mounting hardware or accessories?

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment inside. It also has mounting plate attachment points with brass-inserted injection molding so an internal mounting plate can be fixed tightly for heavier installed equipment.
