Boxco P-Series 90x120x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-091208
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-091208 is a 90×120×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-091208Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×85 mm (3.54×4.72×3.35 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

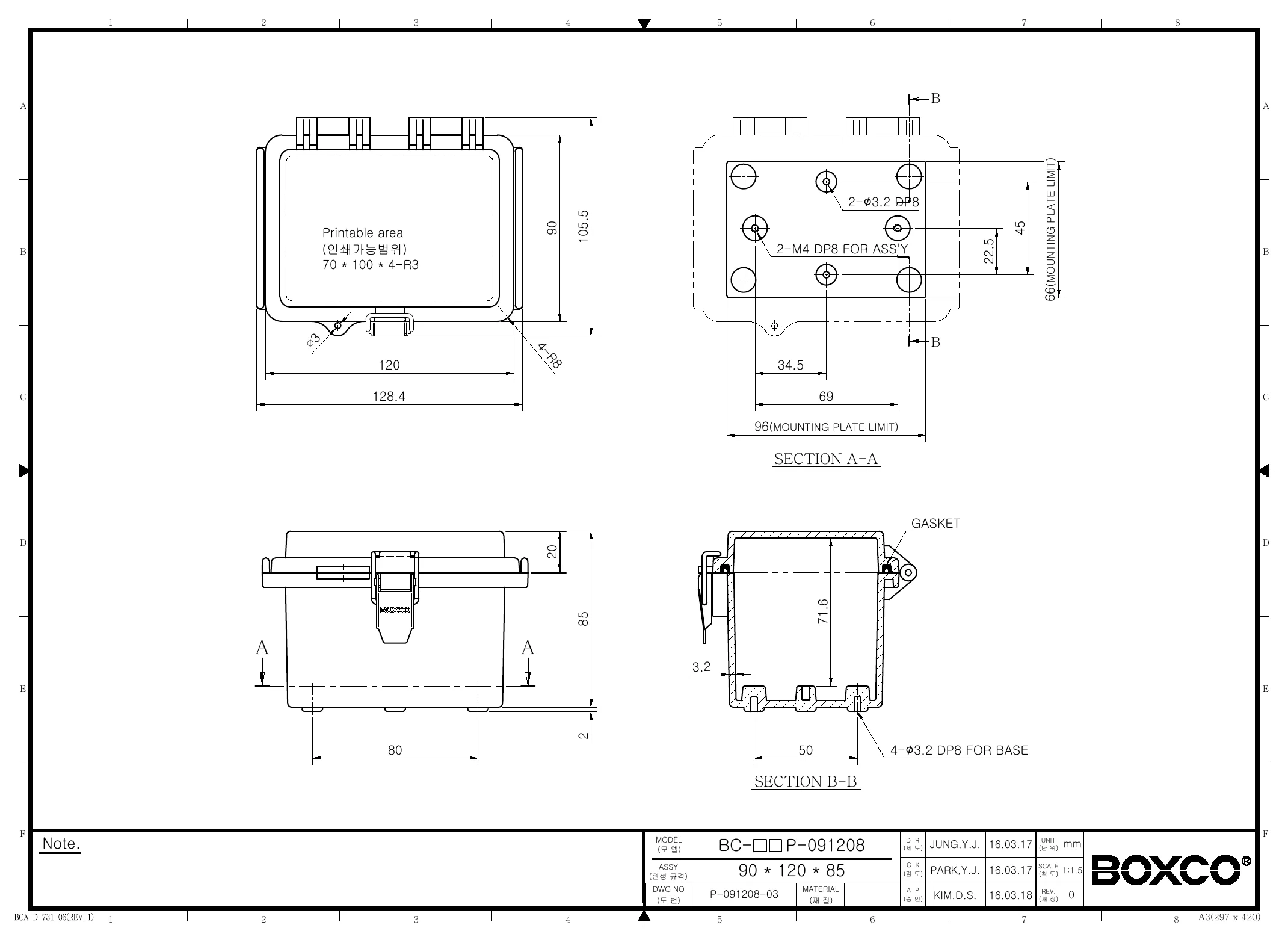

Technical drawings

BC-CGP-091208 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 90 x 120 x 85 mm plastic enclosure suited for?

This enclosure is suited for protecting electronic components and sensitive instruments in industrial and outdoor environments where dust and water resistance matter. Its anti-static material and high impact-resistant polycarbonate construction make it a practical choice for control, monitoring, and protection uses that need a compact sealed housing.

Is this enclosure appropriate for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use, reducing noticeable color change over time. It also includes roof protection features and an injected gasket to support waterproof and dust-proof performance.

What protection ratings does this model have?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress and also offers impact resistance suitable for demanding environments.

What material is this enclosure made from, and why does that matter?

This model is made from PC, or polycarbonate. According to the product description, the material is high impact resistant, helps prevent breakage during hole and press processing, and uses anti-static properties to help protect sensitive electronic instruments.

What are the key physical specifications of this enclosure?

The enclosure measures 3.54 x 4.72 x 3.35 inches, which is 90 x 120 x 85 mm. It has a grey cover, weighs 0.2440 kg, and uses a molded hinge and latch-style design.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for environments with both low and high temperature exposure, provided the rest of the application components are rated accordingly.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description notes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes internal mounting plate attachment points with brass inserted injection molding. These features help support secure mounting of internal hardware inside the enclosure.
