Boxco P-Series 90x120x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-091208
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-091208 is a 90×120×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-091208Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×85 mm (3.54×4.72×3.35 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

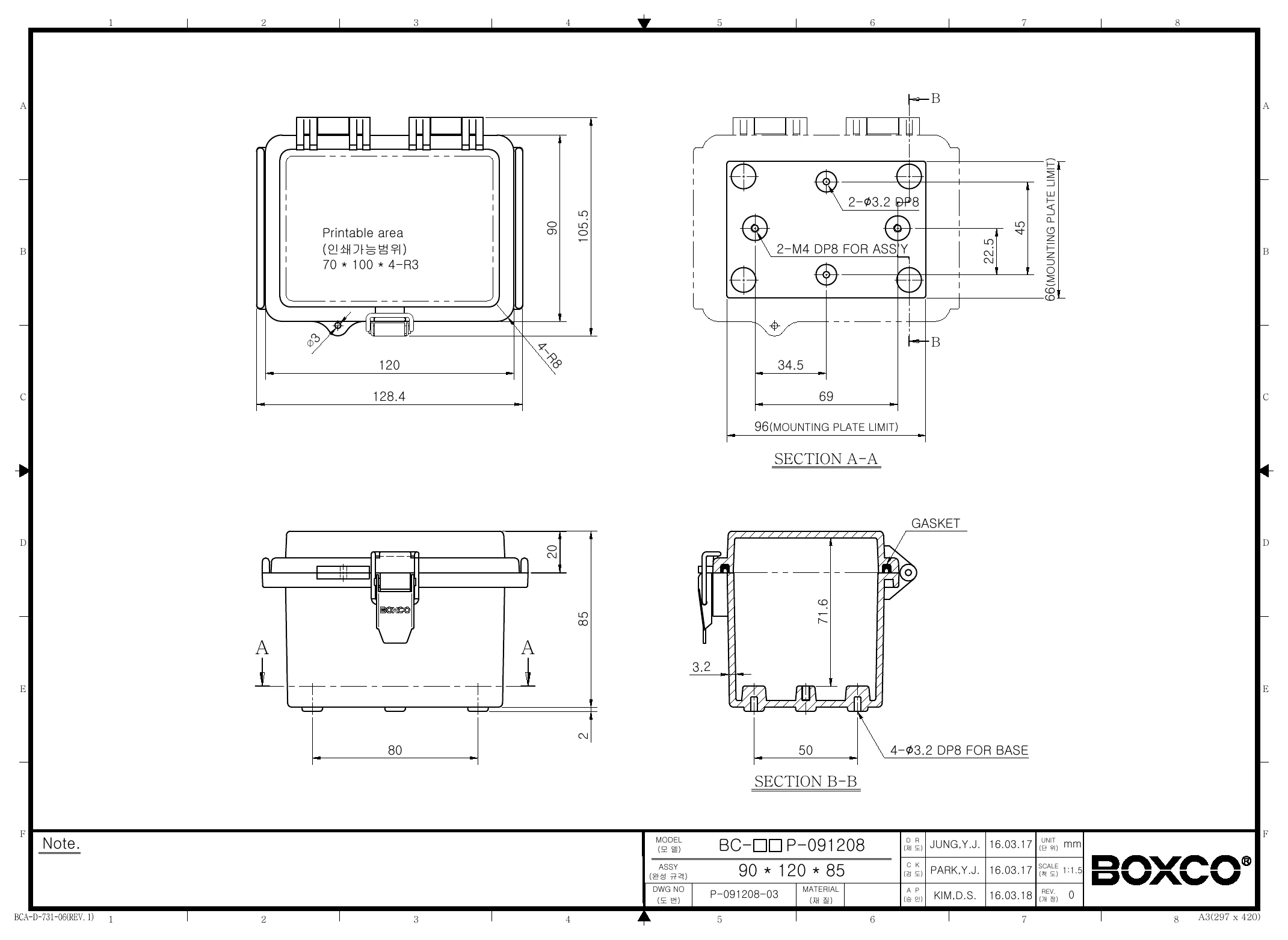

Technical drawings

BC-CTP-091208 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main material and cover features of the Boxco P-Series BC-CTP-091208 enclosure?

This model is made from polycarbonate (PC) and includes a transparent cover. It also uses a molded hinge and latch-style closure, which helps protect internal components while allowing visual inspection without opening the enclosure.

Is the BC-CTP-091208 suitable for outdoor or harsh environments?

Yes. This enclosure is rated IP67 for dust and water resistance and IK08 for impact resistance. The product description also states that an ultraviolet stabilizer is added for outdoor use, helping reduce visible color change over time.

What size is this enclosure, and when is it a good fit?

The enclosure measures 3.54 x 4.72 x 3.35 inches, or 90 x 120 x 85 mm. It is a practical choice when you need a compact hinged enclosure for protecting electronic equipment in industrial or outdoor applications.

What temperature range can this plastic enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. That makes this model suitable for environments with both low-temperature exposure and elevated heat, within that stated range.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The description states that it includes pre-molded mounting screw nuts and attachment points for an internal mounting plate. Those features are intended to help secure internal equipment inside the enclosure body.

How does this model differ from a basic non-hinged enclosure box?

This model includes an integrated plastic hinge with a stainless steel bearing and a latch-type transparent cover, which distinguishes it from simpler screw-fastened or non-hinged boxes. It is designed for repeated access while maintaining environmental protection through its gasketed, IP67-rated construction.
