Boxco

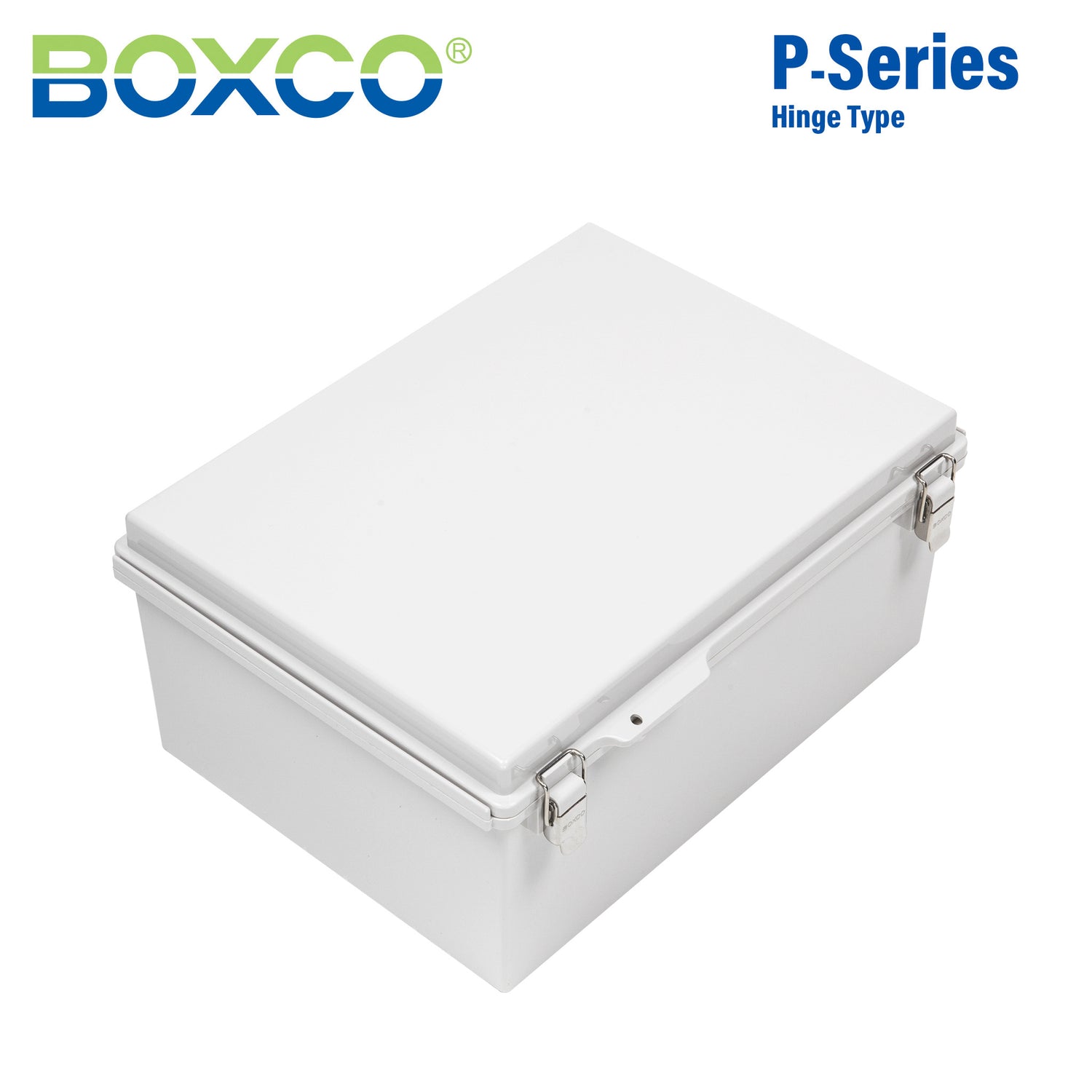

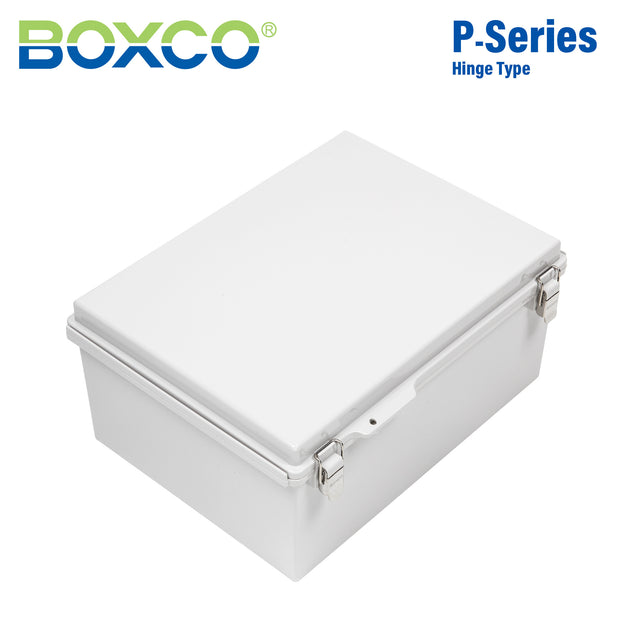

Boxco P-Series 1010x1210x350mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-10012035
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-10012035 is a 1010×1210×350 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-10012035Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
1010×1210×350 mm (39.76×47.64×13.78 in)

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
100120 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

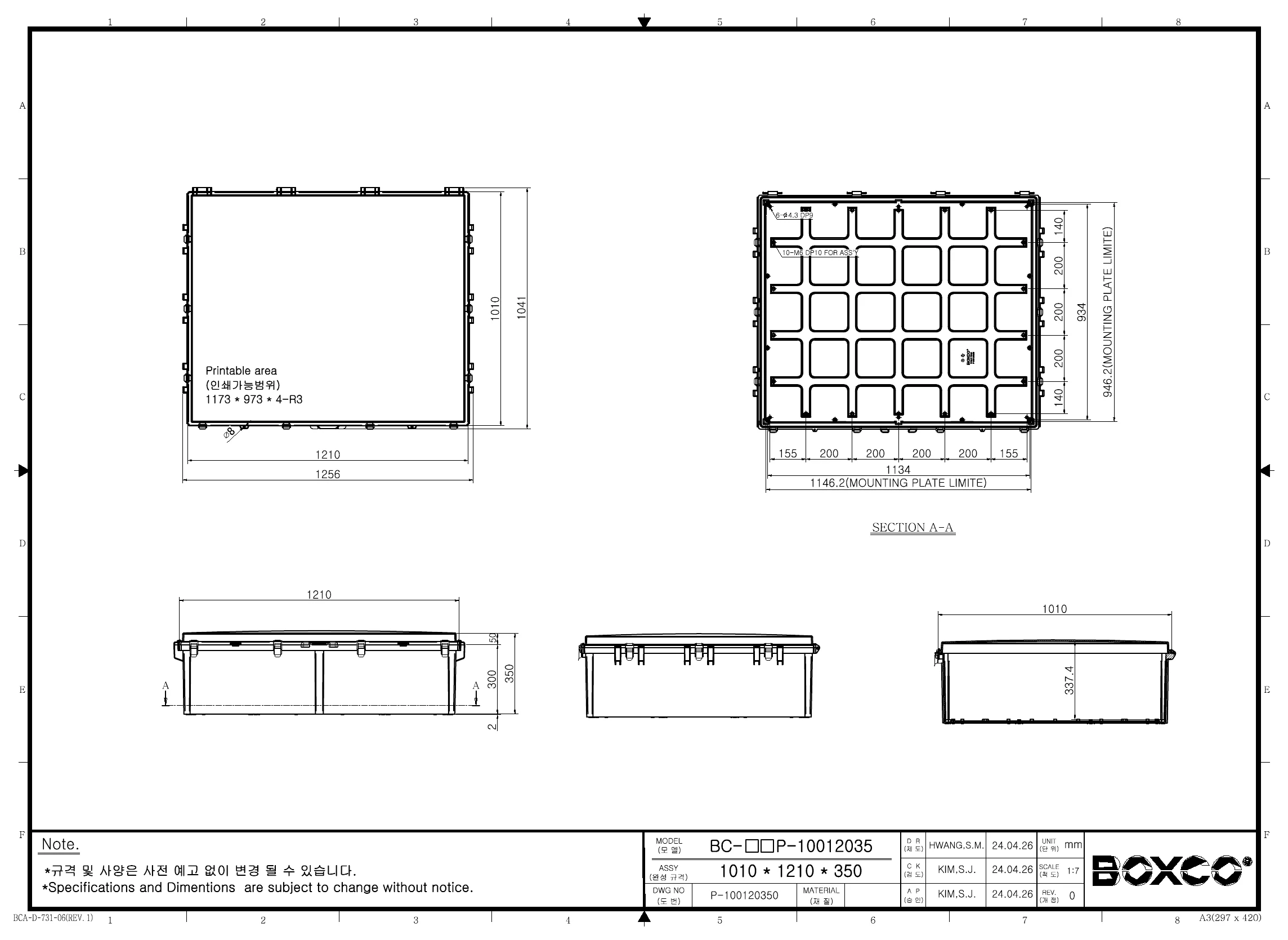

Technical drawings

BC-CGP-10012035 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What types of applications is the Boxco P-Series 1010x1210x350mm enclosure suited for?

This model is intended for protecting electrical components in industrial and outdoor environments. Its polycarbonate construction, grey cover, and molded hinge-and-latch design make it a practical choice where durable enclosed protection is needed. It is positioned as a control box for harsh conditions rather than a light-duty indoor housing.

Is this enclosure suitable for outdoor or harsh-environment use?

Yes. This enclosure is rated IP67 and is described as resistant to impact, UV, and corrosion, which makes it well suited for demanding industrial and outdoor conditions. Its operating temperature range of -40 C to 110 C also supports use across a wide range of environments.

What protection ratings does this Boxco enclosure have?

This model carries an IP67 ingress protection rating and an IK08 impact rating. IP67 indicates strong protection against dust and temporary immersion, while IK08 identifies a defined level of mechanical impact resistance. Together, these ratings support use where both sealing and enclosure toughness matter.

Is this Boxco P-Series model a plastic or metal enclosure?

This is a polycarbonate enclosure, not a metal one. The housing is made from PC and includes a grey cover, so buyers looking for a corrosion-resistant non-metal enclosure may find it a better fit than a comparable metal box in some environments. It is specifically described as a plastic enclosure in the P Series range.

What are the main physical features of this enclosure?

This model is sized at 1010 x 1210 x 350 mm and uses a molded hinge and latch type closure. It also has a grey cover and belongs to Boxco's P Series polycarbonate control box line. These features make it a large-format enclosure intended for protected component housing.

What temperature range and warranty apply to this model?

The specified operating temperature range is -40 C to 110 C. The listed warranty period is 1 year. Those published values make this model suitable for buyers who need both broad environmental tolerance and a clearly defined warranty term.
