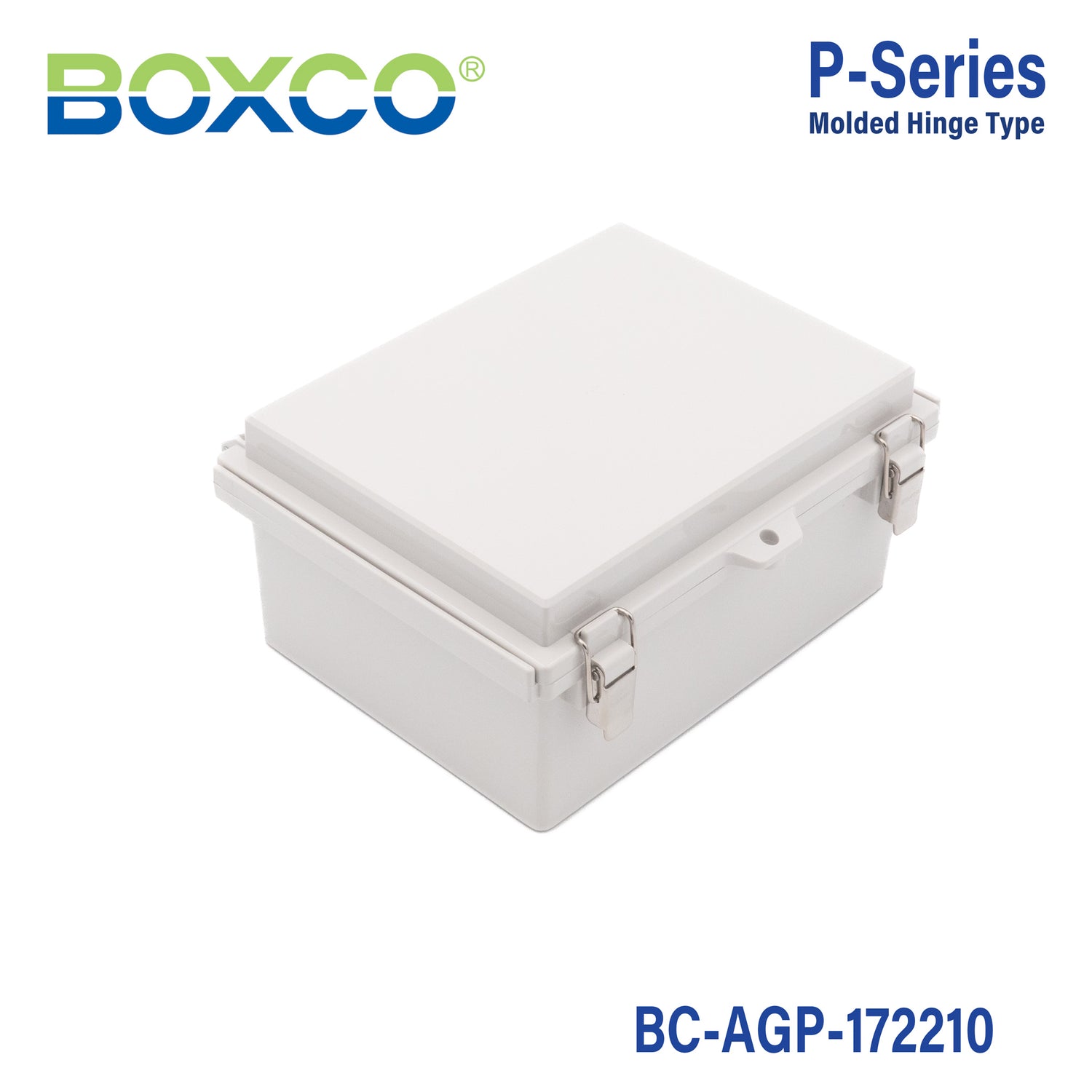

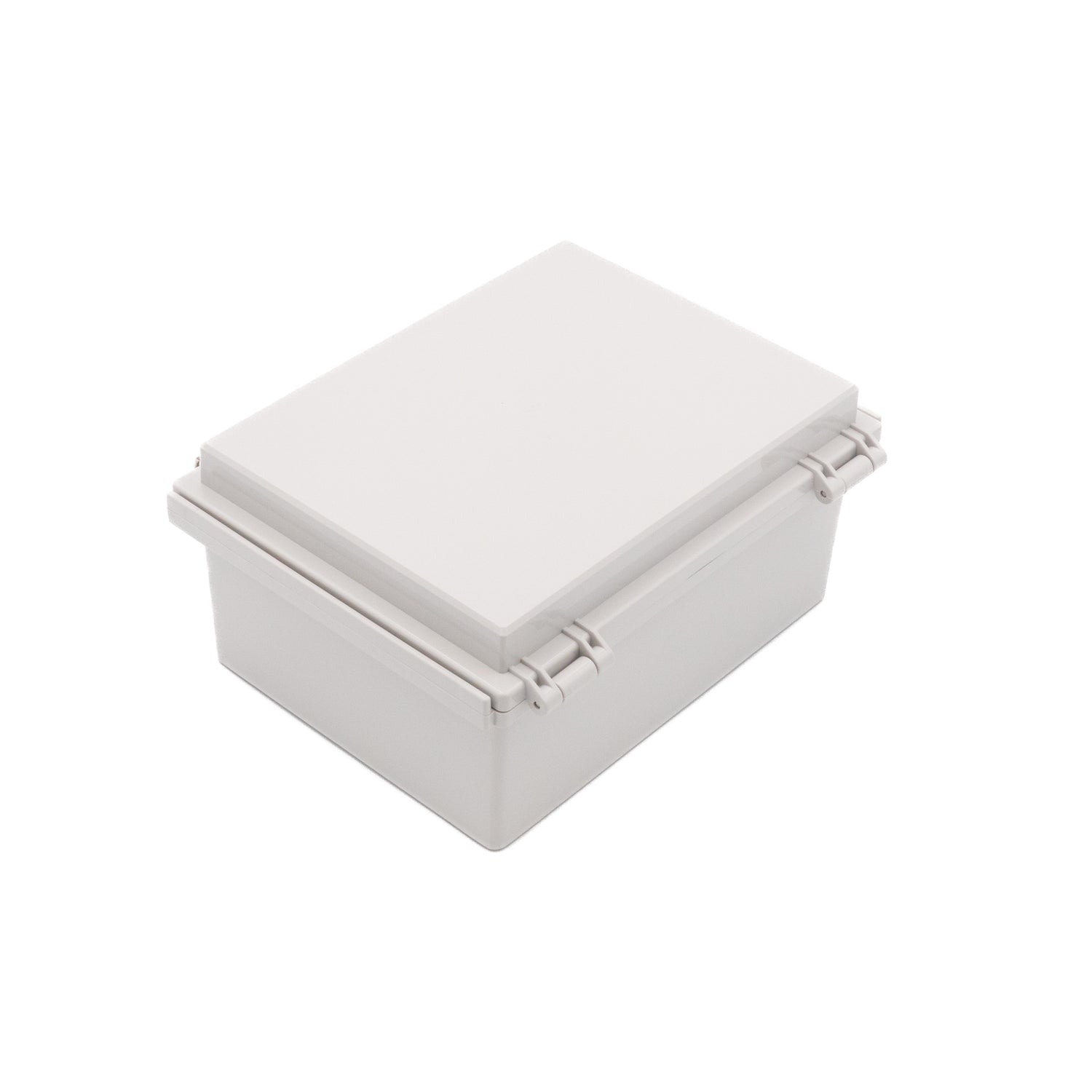

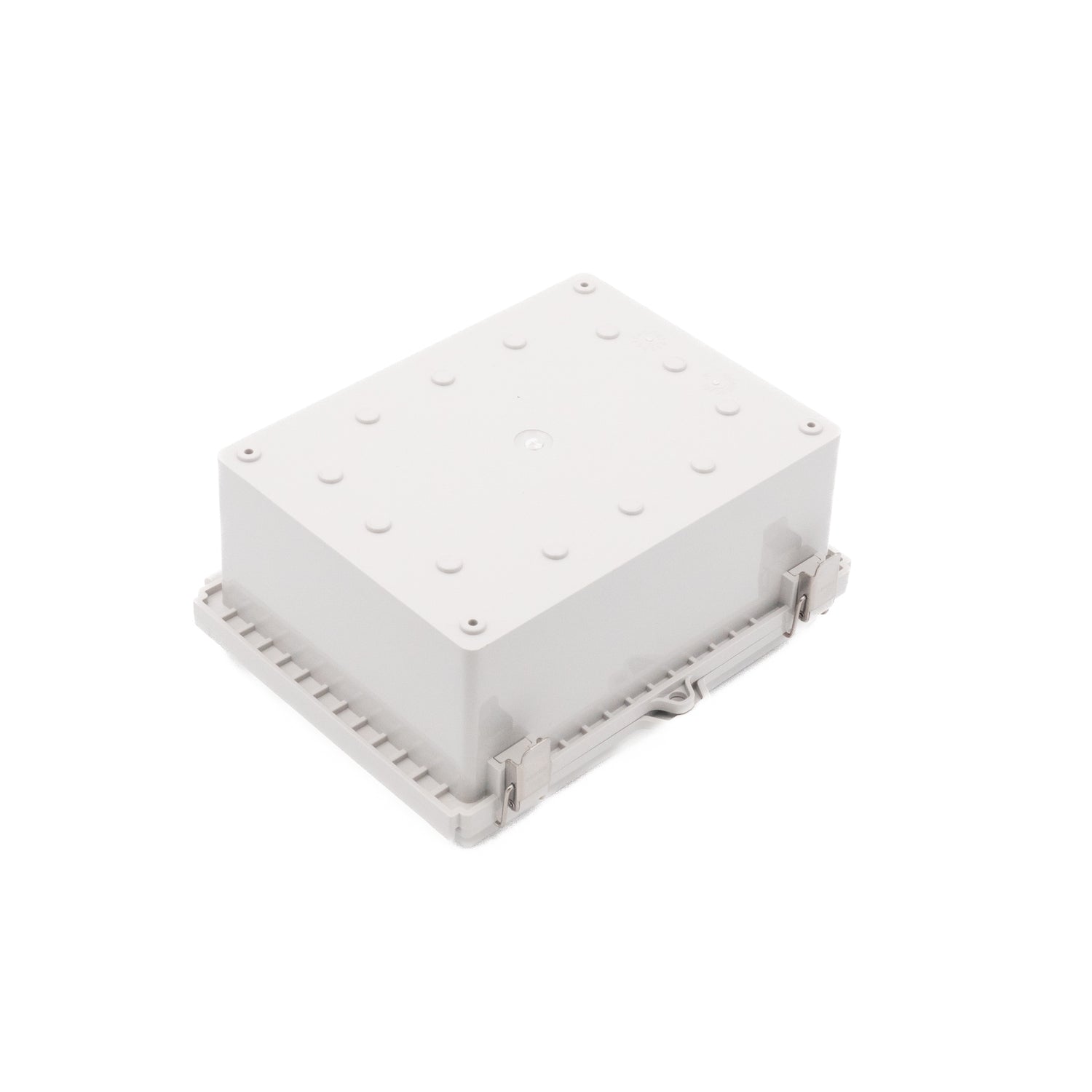

Boxco P-Series 170x220x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

P-Series 170x220x110mm Plastic EnclosureIP67IK08ABSGrey CoverMolded Hinge and Latch Type
SKU BC-AGP-172210
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-172210 is a 170×220×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-172210Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×220×100 mm (6.69×8.66×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

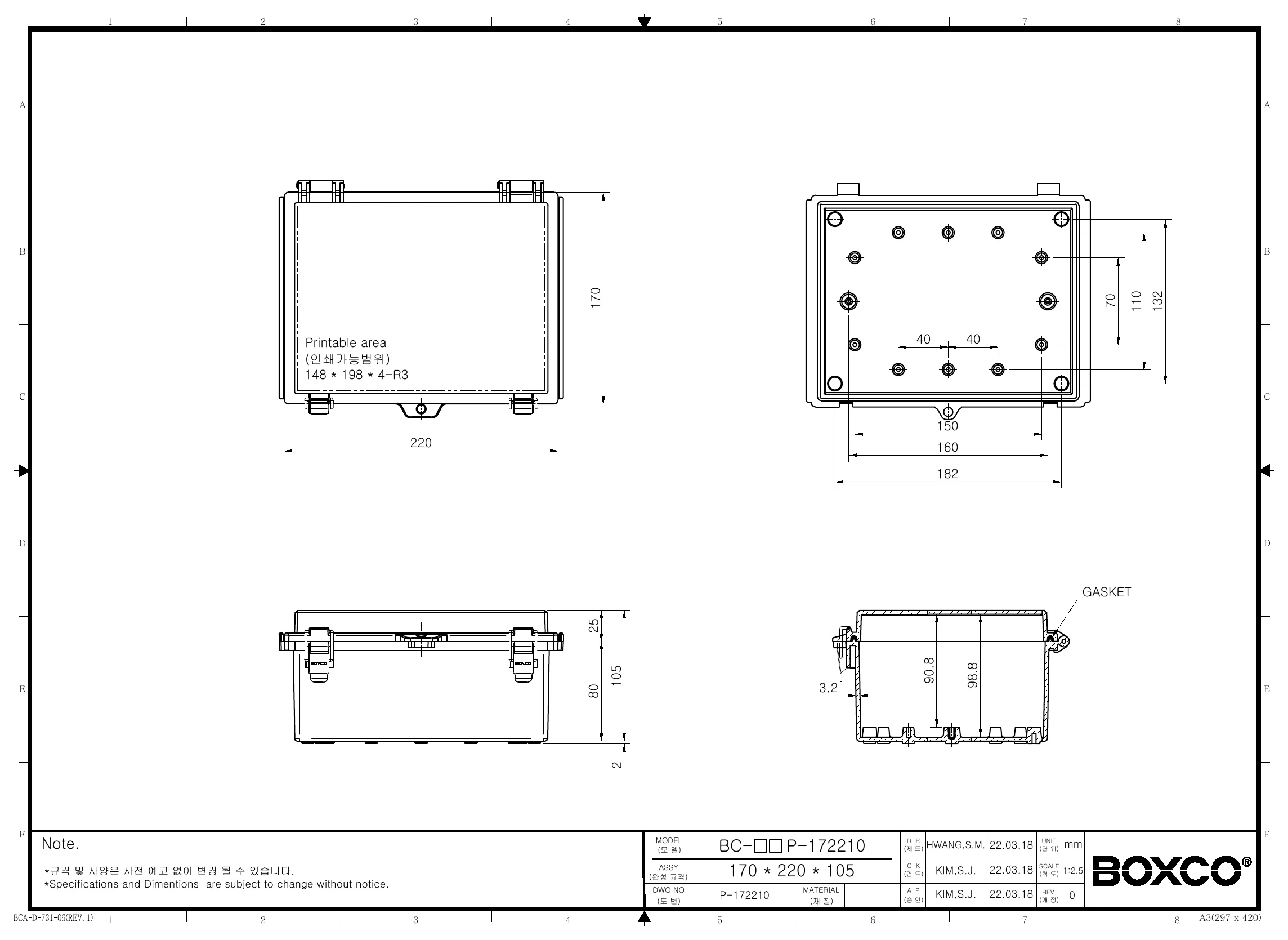

Technical drawings

BC-AGP-172210 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main dimensions and material of the Boxco P-Series BC-AGP-172210 enclosure?

This model is a 170 x 220 x 100 mm plastic enclosure made from ABS. It has a grey cover and uses a molded hinge and latch design for repeated access. The enclosure weight is 0.55 kg.

Is this enclosure suitable for outdoor or washdown-prone environments?

This enclosure is built for demanding environments with an IP67 rating for dust-tight sealing and protection against temporary water immersion. Boxco also states that the P-Series includes an ultraviolet stabilizer to help limit color change during long-term outdoor use. The roof protection and precision-injected gasket are intended to improve water and dust resistance during normal cover operation.

How durable is this enclosure against impact and industrial handling?

The enclosure is rated IK08 for impact resistance and is described as being made from high impact resistant material. Boxco also notes that the material helps reduce breakage during hole and press processing. That makes it a practical choice for industrial housings that may see routine physical contact.

What kinds of equipment is this enclosure commonly used to protect?

This model is suited to protecting control, instrumentation, and other electronic equipment that needs a sealed non-metallic housing. The product description specifically highlights anti-static material for sensitive electronic instruments. Its combination of gasket sealing, molded hinge access, and internal mounting support makes it a good fit for industrial and outdoor enclosure applications.

Does this enclosure support internal mounting hardware or plates?

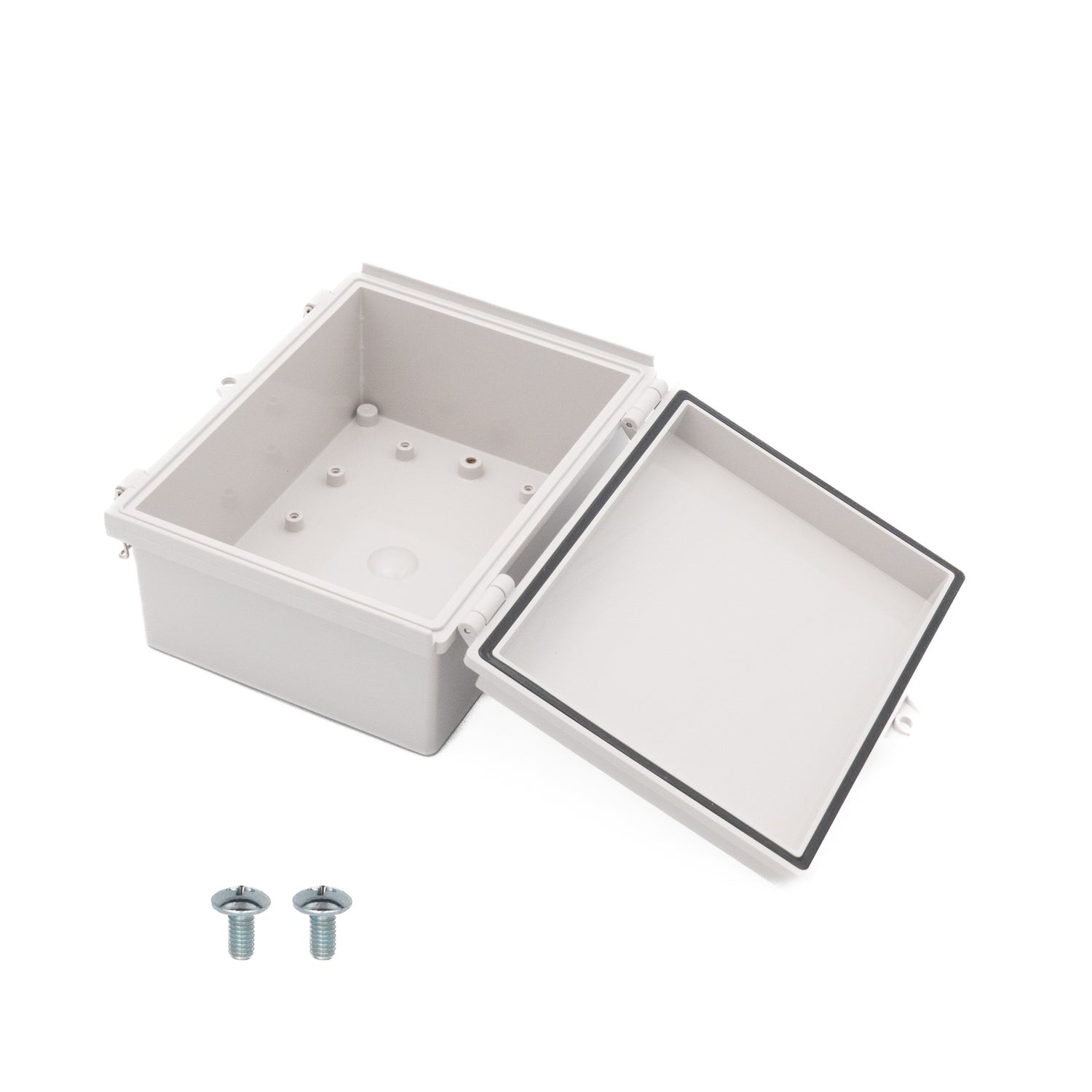

Yes. Boxco specifies pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes mounting plate attachment points. The internal mounting plate can be fixed onto brass inserted injection molding to better support heavier internal components.

What distinguishes this Boxco P-Series enclosure from a basic plastic junction box?

This model combines several protective features beyond a simple plastic box, including IP67 sealing, IK08 impact resistance, an integrated plastic hinge with stainless steel bearing, and a stainless steel latch component. Boxco also highlights UV stabilization, anti-static material, roof protection, and gasket precision as part of the P-Series design. Those features make it better suited to tougher industrial and outdoor duty than a basic enclosure.

What temperature range is this enclosure rated for?

The stated operating temperature range is -40 °C to 70 °C. That range supports use in both cold and hot industrial environments, provided the rest of the installed equipment is also rated appropriately. The enclosure itself is specified within that temperature window.
