Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

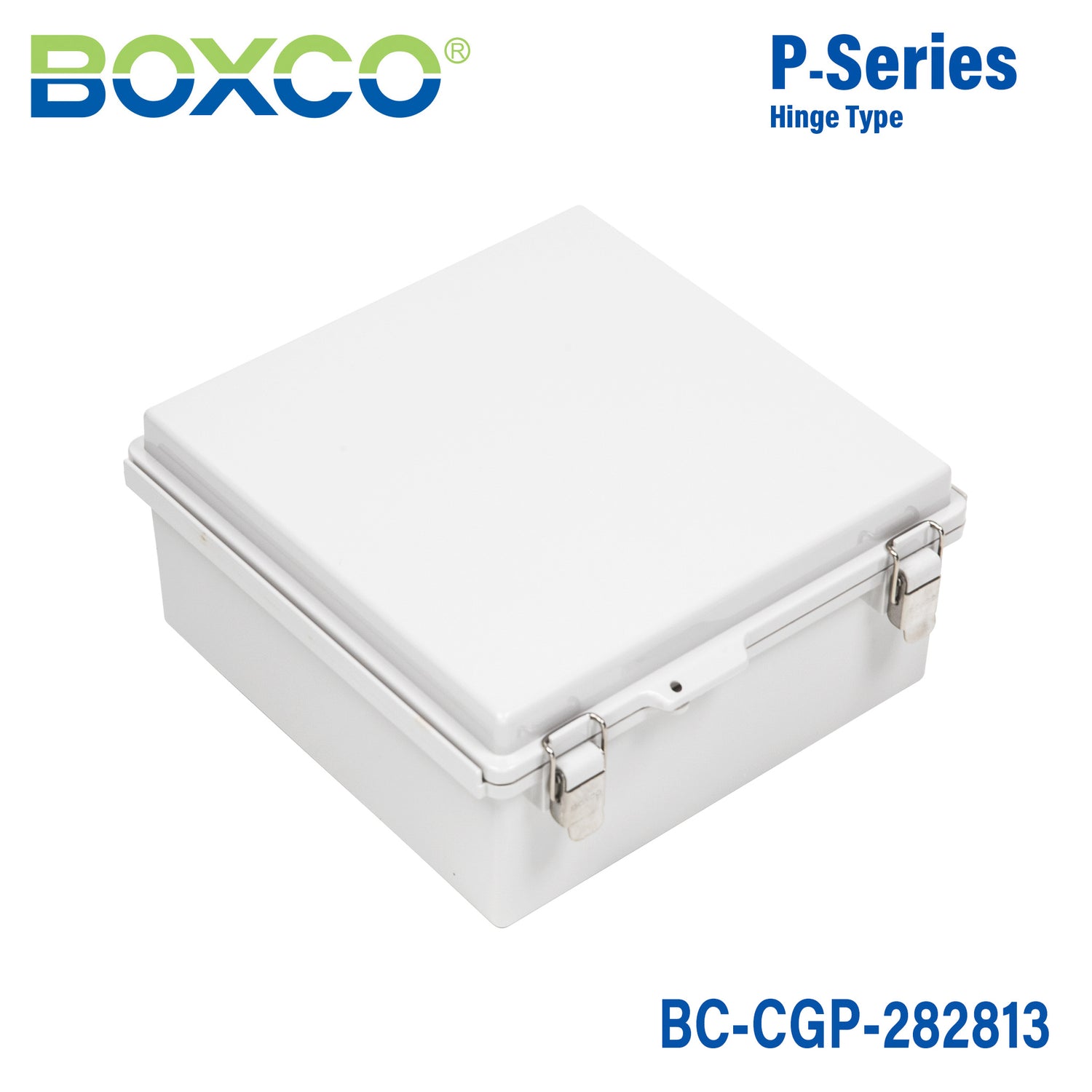

Boxco P-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU:
BC-CGP-282813
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

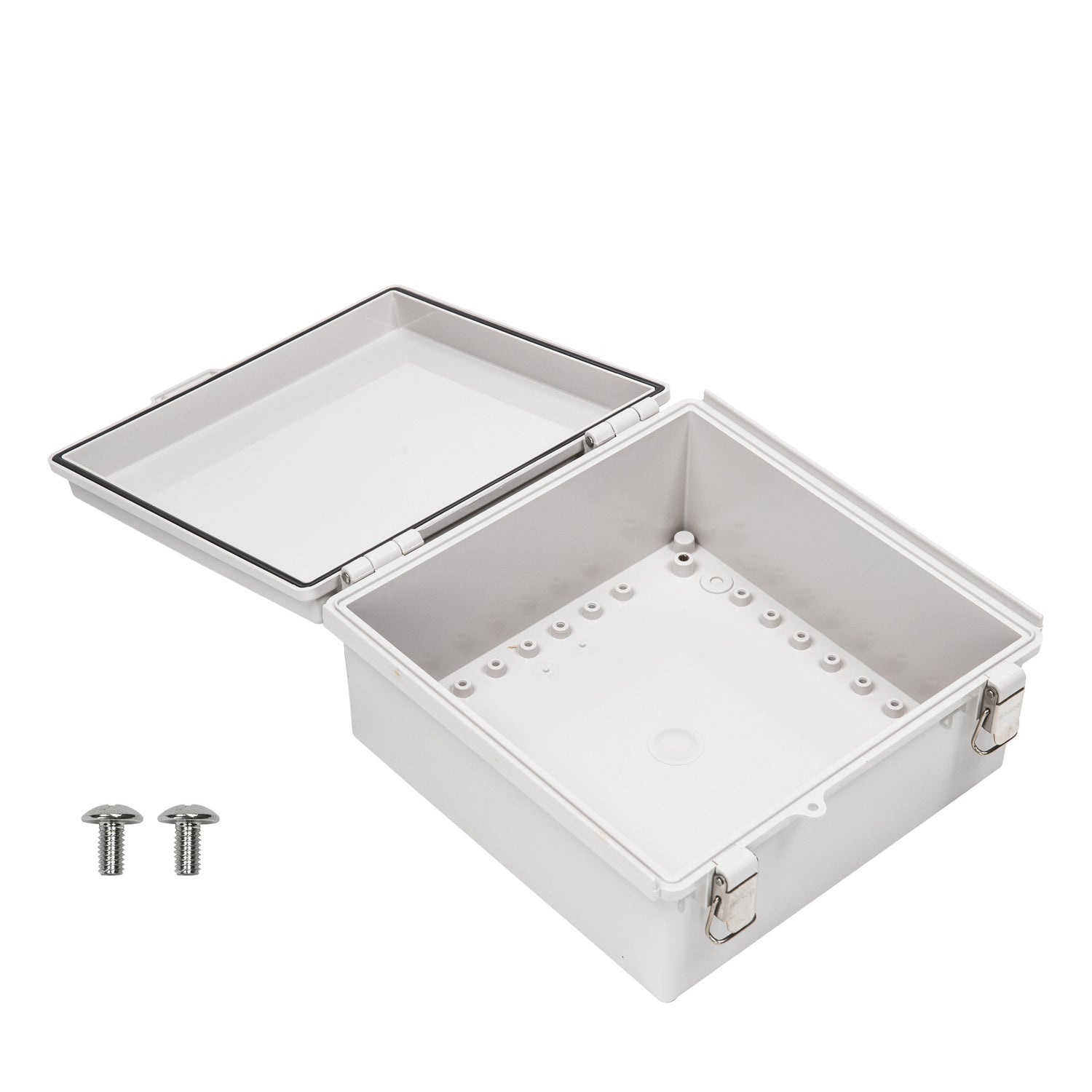

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~110°C
  • Warranty
    1 Year
  • Length
    28 cm
  • Width
    28 cm
  • Height
    13 cm
  • Weight
    1.39 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the Boxco P-Series BC-CGP-282813 suitable for outdoor use?

Yes. This model uses UV-stabilized polycarbonate and includes roof protection at both ends to help reduce water penetration in outdoor use. It is also rated IP67 for dust-tight and water-resistant enclosure performance.

What size is this enclosure, and what kind of applications is it suited for?

This enclosure measures 11.02 x 11.02 x 5.12 inches (280 x 280 x 130 mm), giving it a relatively large footprint for housed controls, protection devices, or other industrial electronics. Its size and reinforced construction make it a practical choice when you need more internal space than a compact junction box provides.

What materials are used in this enclosure?

The BC-CGP-282813 is made from polycarbonate with a grey cover. Boxco also notes that the material is high-impact resistant, anti-static, and UV-stabilized for demanding industrial and outdoor environments.

How durable is this enclosure in demanding environments?

This model is rated IK08 for impact resistance and uses a stainless steel main latch component for added durability. The integrated molded hinge uses a stainless steel bearing to improve service life during repeated opening and closing.

Can this enclosure support internal mounting hardware or equipment?

Yes. The enclosure includes pre-molded mounting screw nuts for fixing DIN rail or other equipment internally. It also has mounting plate attachment points designed to hold an internal mounting plate securely for heavier installed components.

What temperature range can this enclosure handle?

The specified operating range for this model is -40 C to 110 C. That wide range makes it suitable for applications exposed to cold outdoor conditions as well as higher internal equipment temperatures.

Why choose this P-Series hinged enclosure over a simpler non-hinged box?

This model adds a molded hinge and latch design, which makes repeat access more practical than a basic screw-cover enclosure. It also combines IP67 sealing, IK08 impact resistance, and polycarbonate construction for stronger protection in industrial or outdoor applications.
