Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

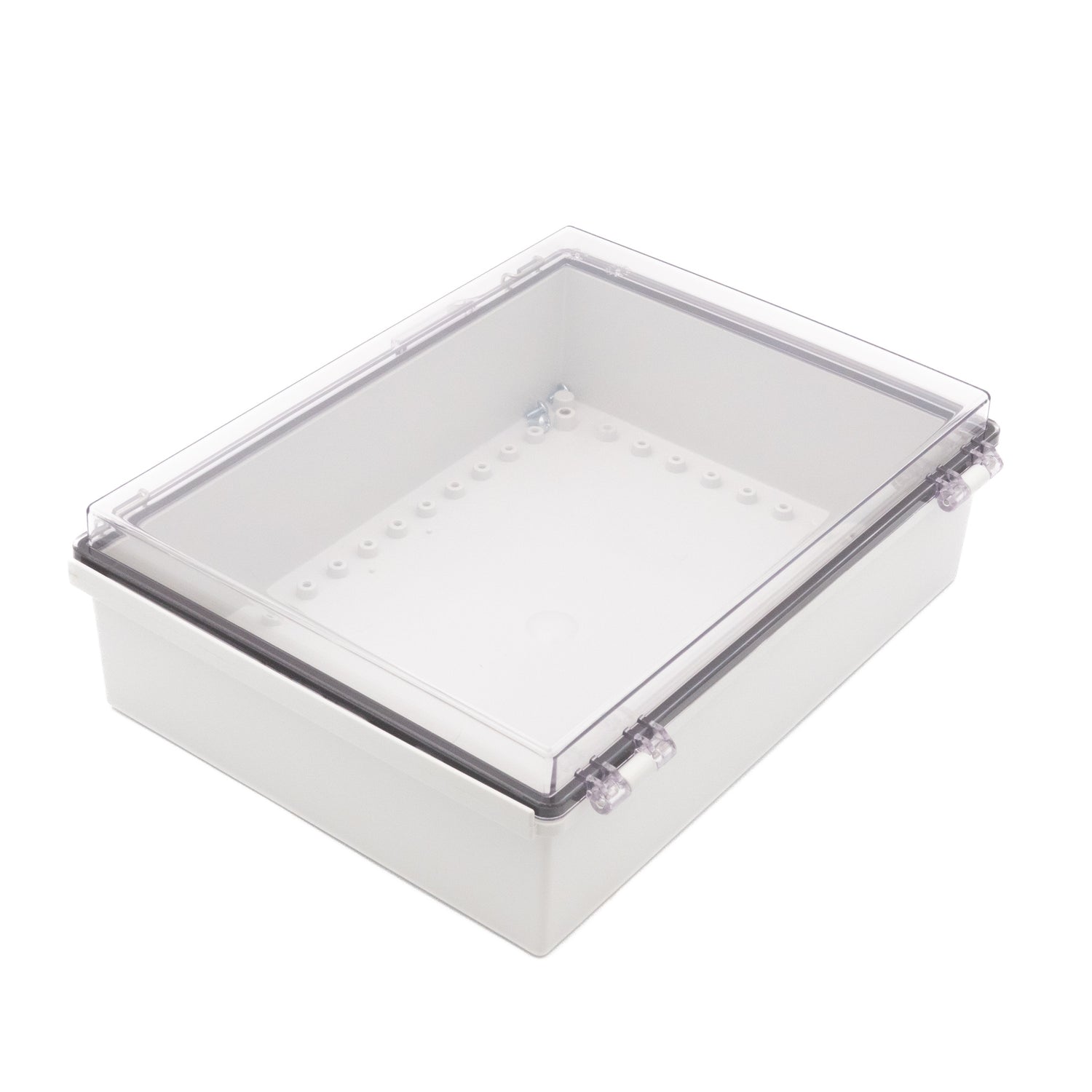

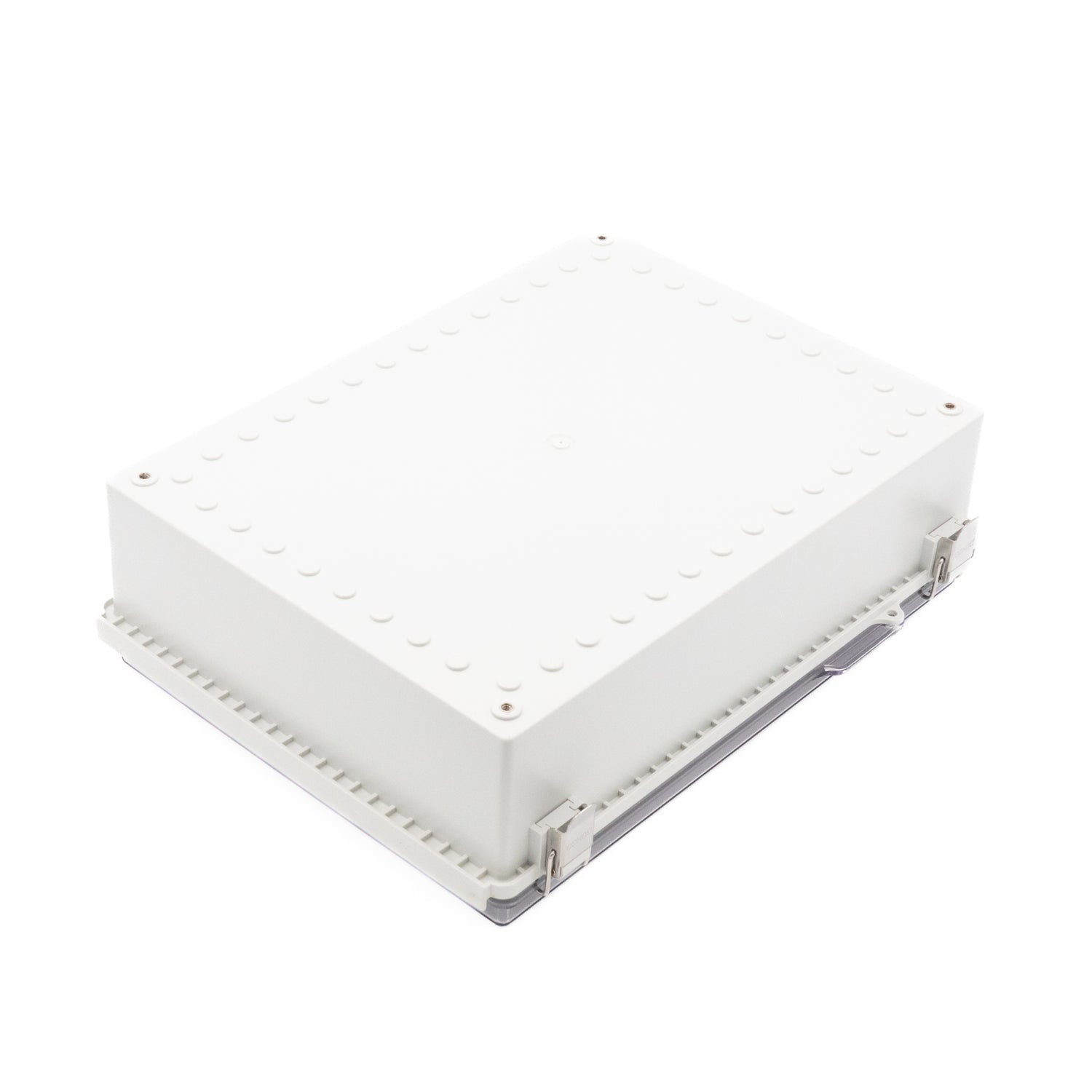

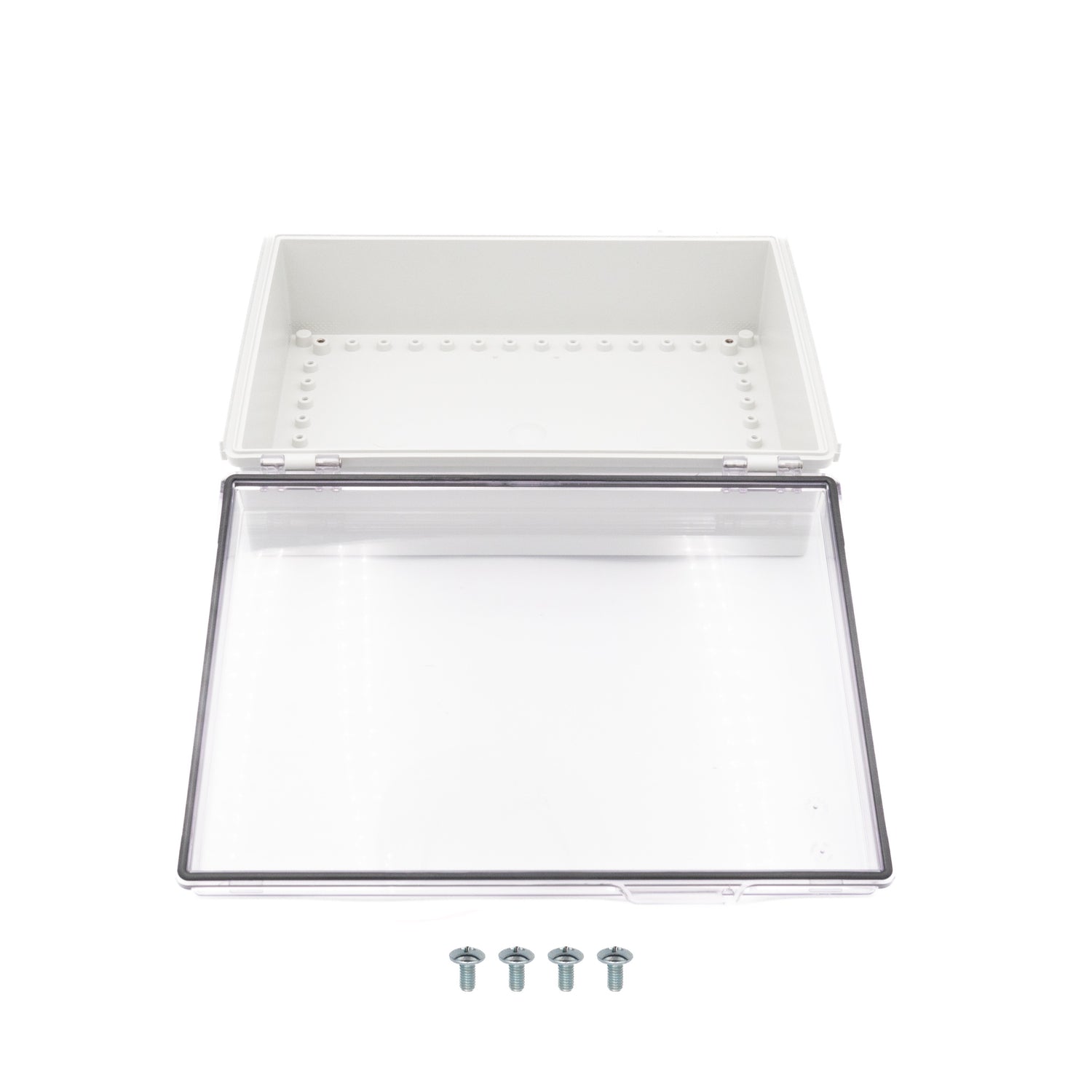

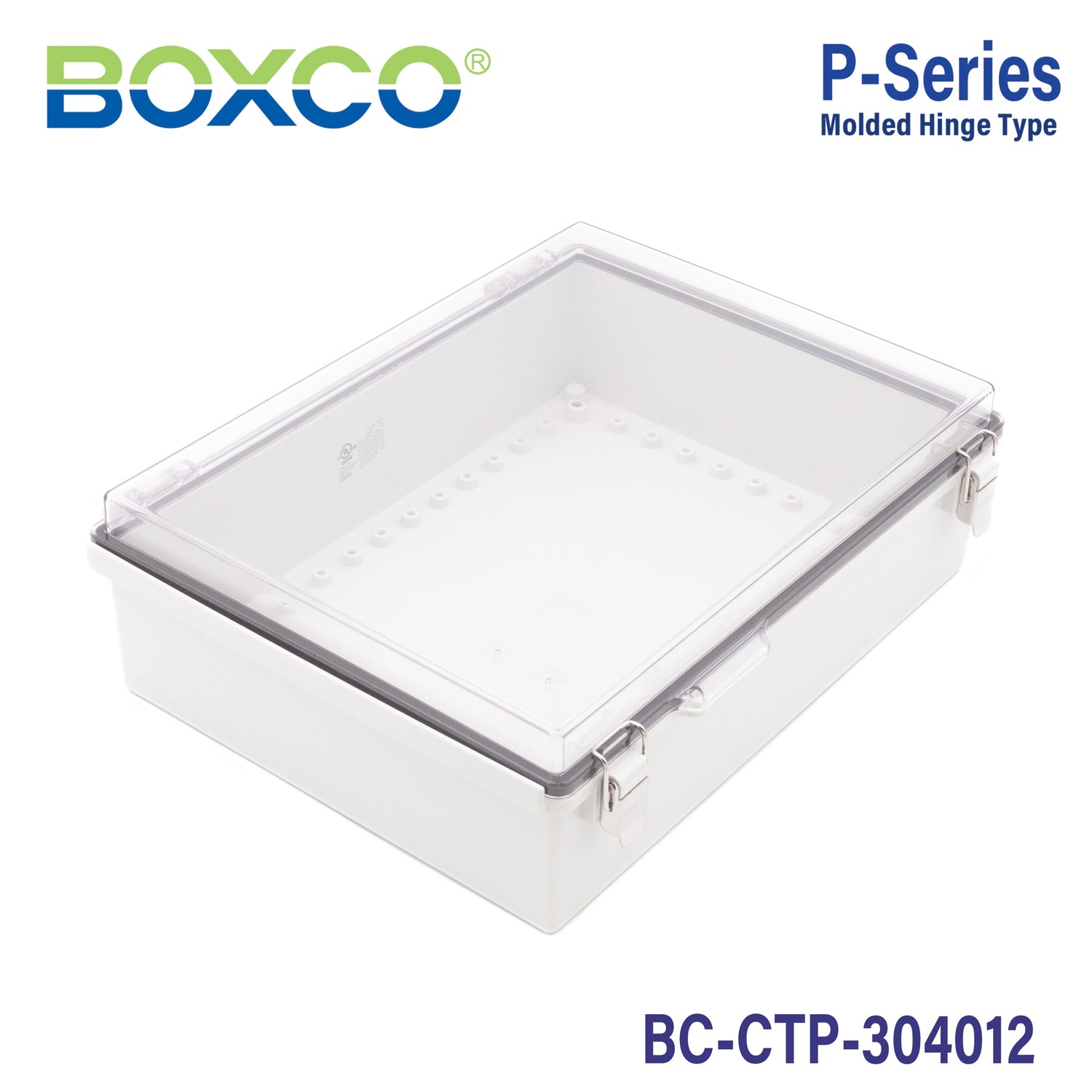

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-CTP-304012
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~110°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    12 cm
  • Weight
    1.69 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco P-Series BC-CTP-304012 enclosure suited for?

This model is suited for protecting industrial and commercial electrical or control components where a sealed plastic enclosure is needed. Its transparent cover, molded hinge, and latch design make it practical for applications that benefit from quick visual inspection without opening the box.

Is the BC-CTP-304012 suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor environments and reduce visible color change over time. The design also includes roof protection features intended to help reduce water and dust intrusion during outdoor use.

What protection ratings does this enclosure have?

The BC-CTP-304012 is rated IP67 for protection against dust and water ingress, and IK08 for impact resistance. It is made from high impact resistant polycarbonate and is designed for demanding enclosure applications.

What are the dimensions of this Boxco enclosure?

This enclosure measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. That size makes it a larger-format plastic enclosure for applications needing more internal space than compact junction-style boxes.

What is the benefit of the transparent cover on this model?

The transparent cover allows contents, indicators, or labels inside the enclosure to be viewed without opening it. This can be useful when a buyer wants visibility while still using a sealed enclosure with molded hinge and latch access.

What temperature range can the BC-CTP-304012 handle?

This model is specified for use from -40 degrees C to 110 degrees C. That wide operating range supports use in both cold and high-heat environments where a standard-purpose enclosure may be more limited.

Does this enclosure support mounting internal components?

Yes. Boxco notes pre-molded mounting screw nuts for securing DIN rail or other equipment, and dedicated mounting plate attachment points for an internal mounting plate. The enclosure also uses brass inserted injection molding to help support heavier internal equipment.
