Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

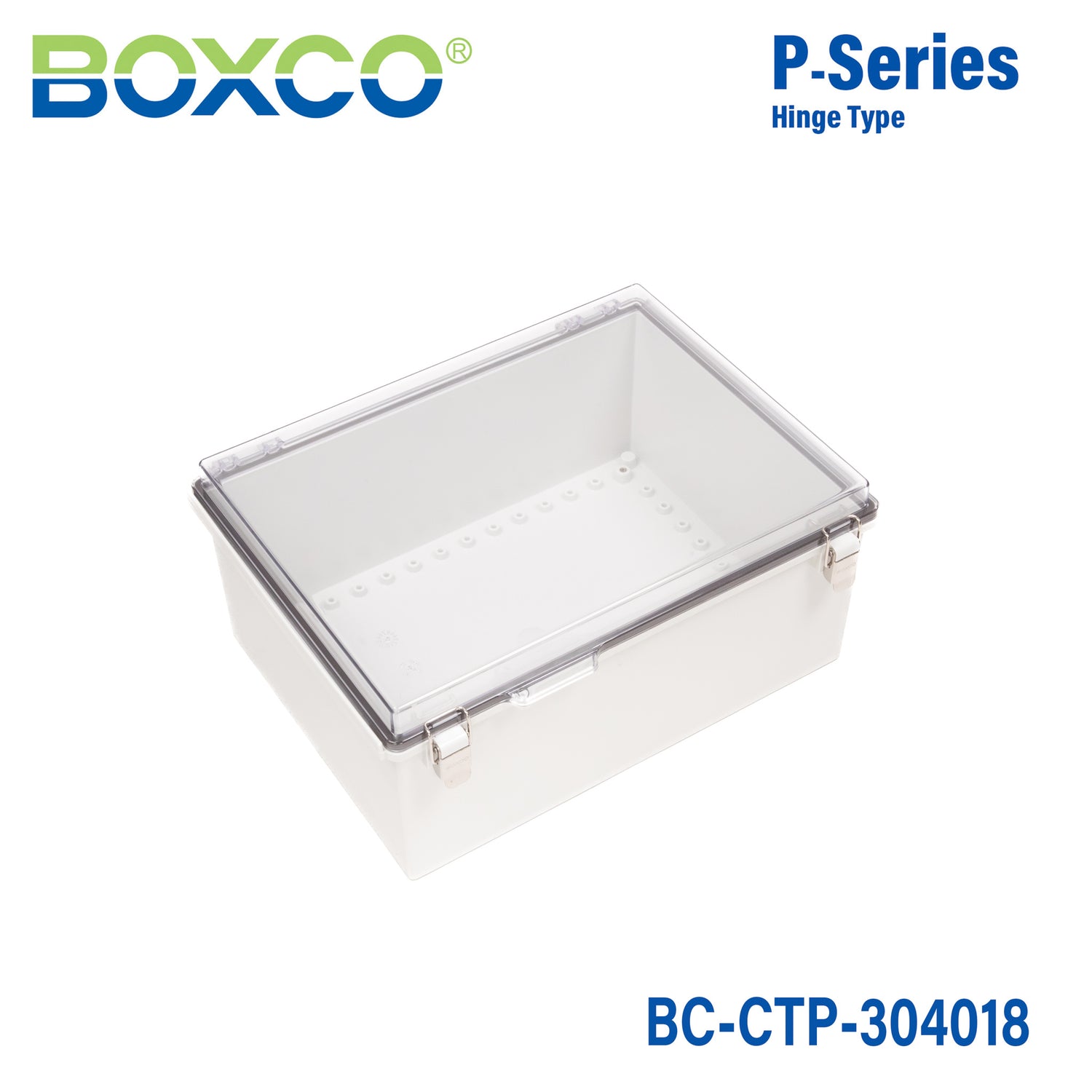

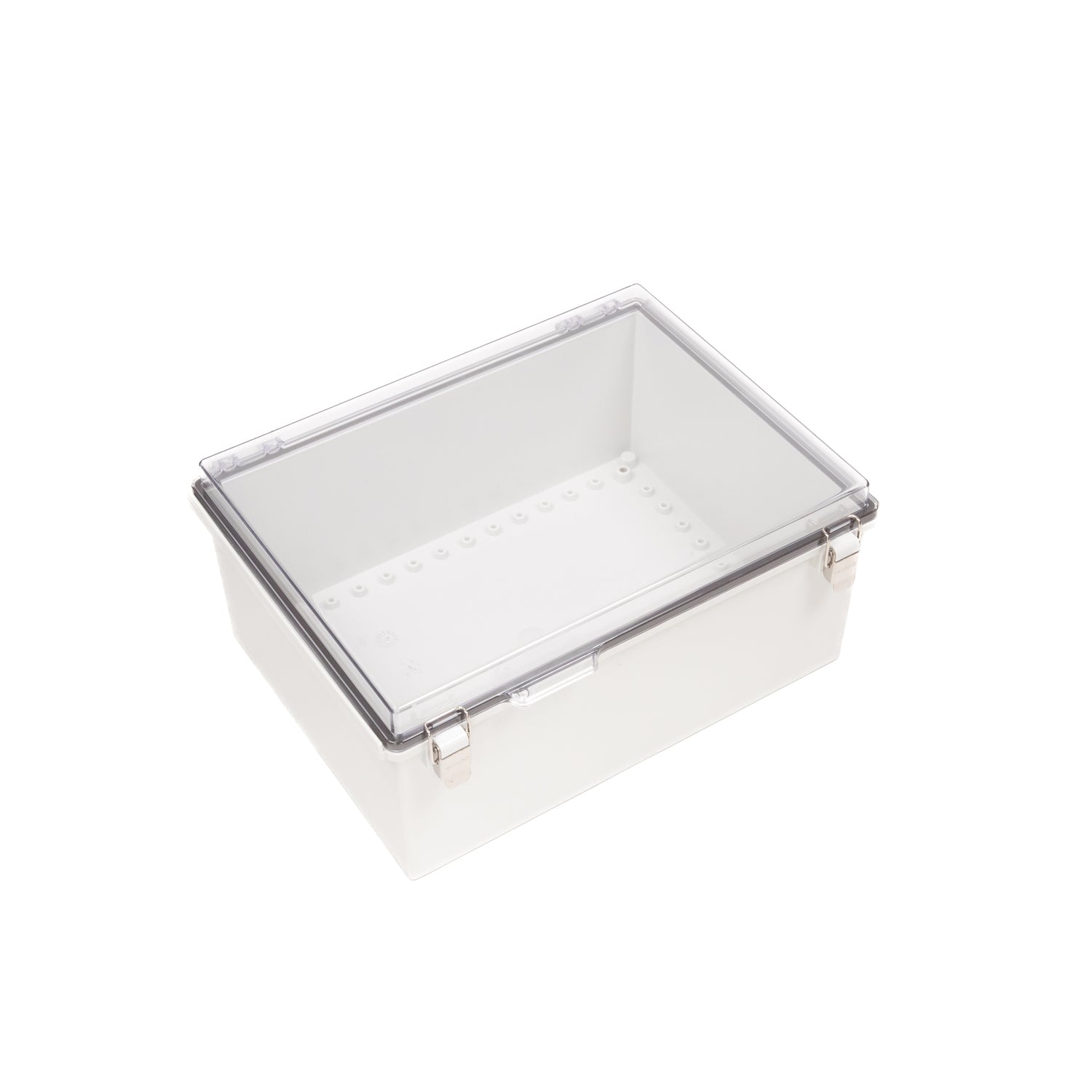

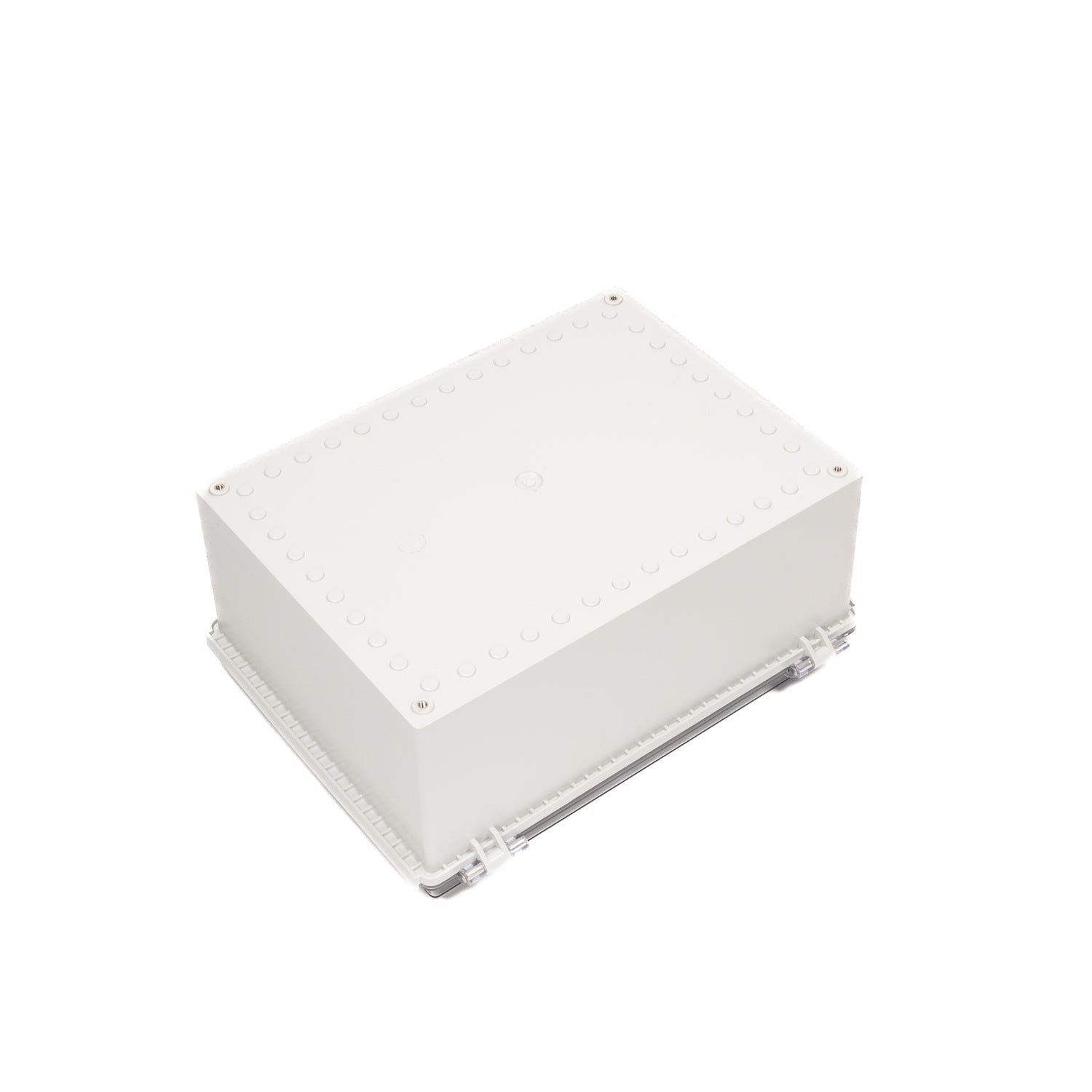

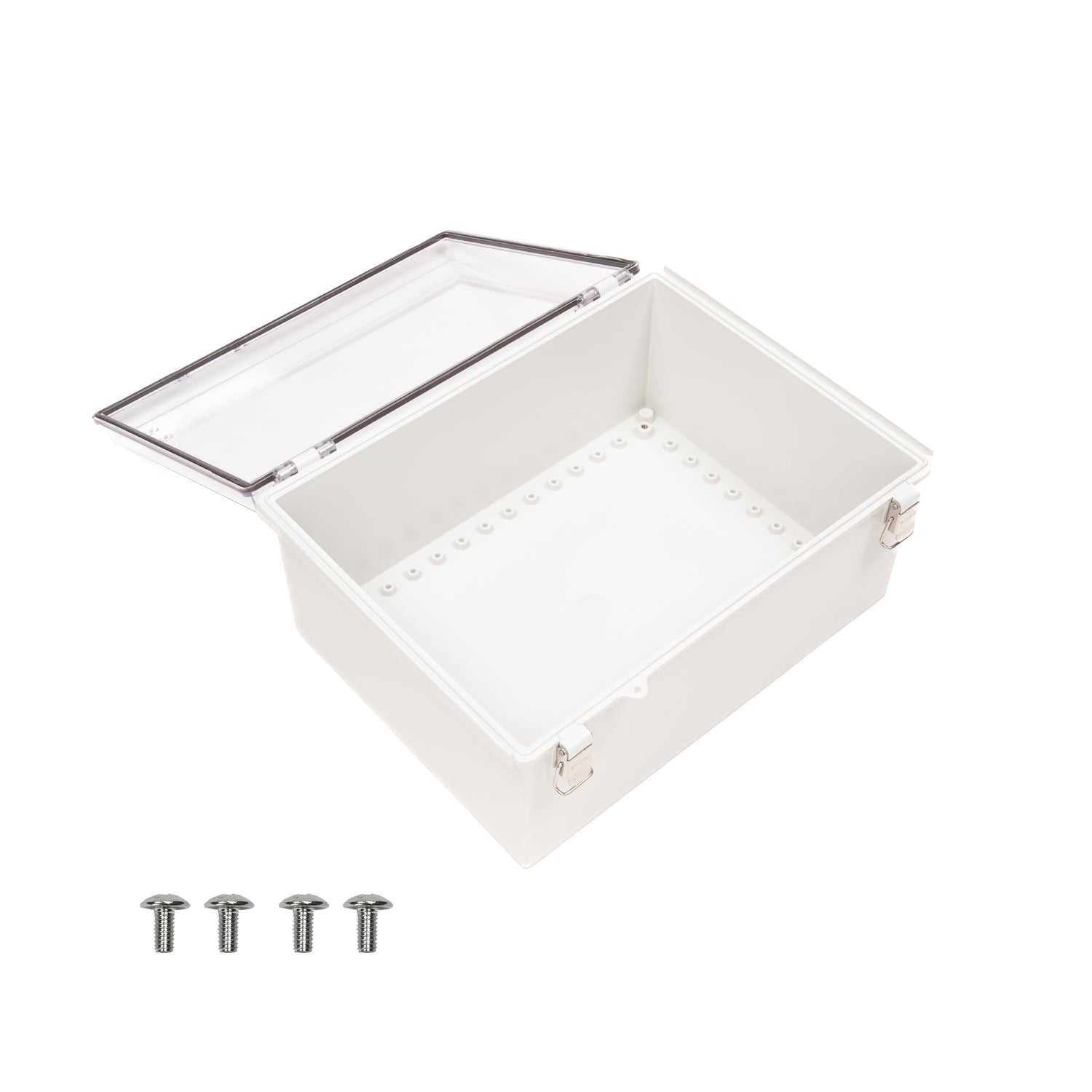

Boxco P-Series 300x400x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-CTP-304018
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~110°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    18 cm
  • Weight
    1.97 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco P-Series BC-CTP-304018 best suited for?

This enclosure is suited for protecting control, monitoring, and other sensitive electronic equipment in industrial and outdoor environments. Its impact-resistant polycarbonate construction, transparent cover, and molded hinge and latch design make it a practical choice when durability and visual inspection are both important.

What are the main size and material specifications of this enclosure?

The BC-CTP-304018 measures 11.81 x 15.75 x 7.09 inches, which corresponds to 300 x 400 x 180 mm. It is made from polycarbonate (PC) and has a transparent cover, with a listed product weight of 1.973 kg.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes UV stabilizer content for outdoor use and roof protection features intended to reduce water and dust penetration during cover operation.

How durable is this enclosure against physical impact?

The enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. That makes it a solid option for environments where the housing may be exposed to incidental knocks or mechanical stress.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. This wide range supports use in both cold and high-heat industrial environments, provided the full application is evaluated against those conditions.

Does this enclosure support internal accessories or mounting hardware?

Yes, the product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment internally. It also includes mounting plate attachment points with brass inserted injection molding to help support heavier internal components.

What cover and access style does this model use?

This enclosure uses a transparent cover with a molded hinge and latch-type closure. The integrated hinge is plastic, and the hinge bearing is stainless steel to improve service life during repeated opening and closing.
