Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

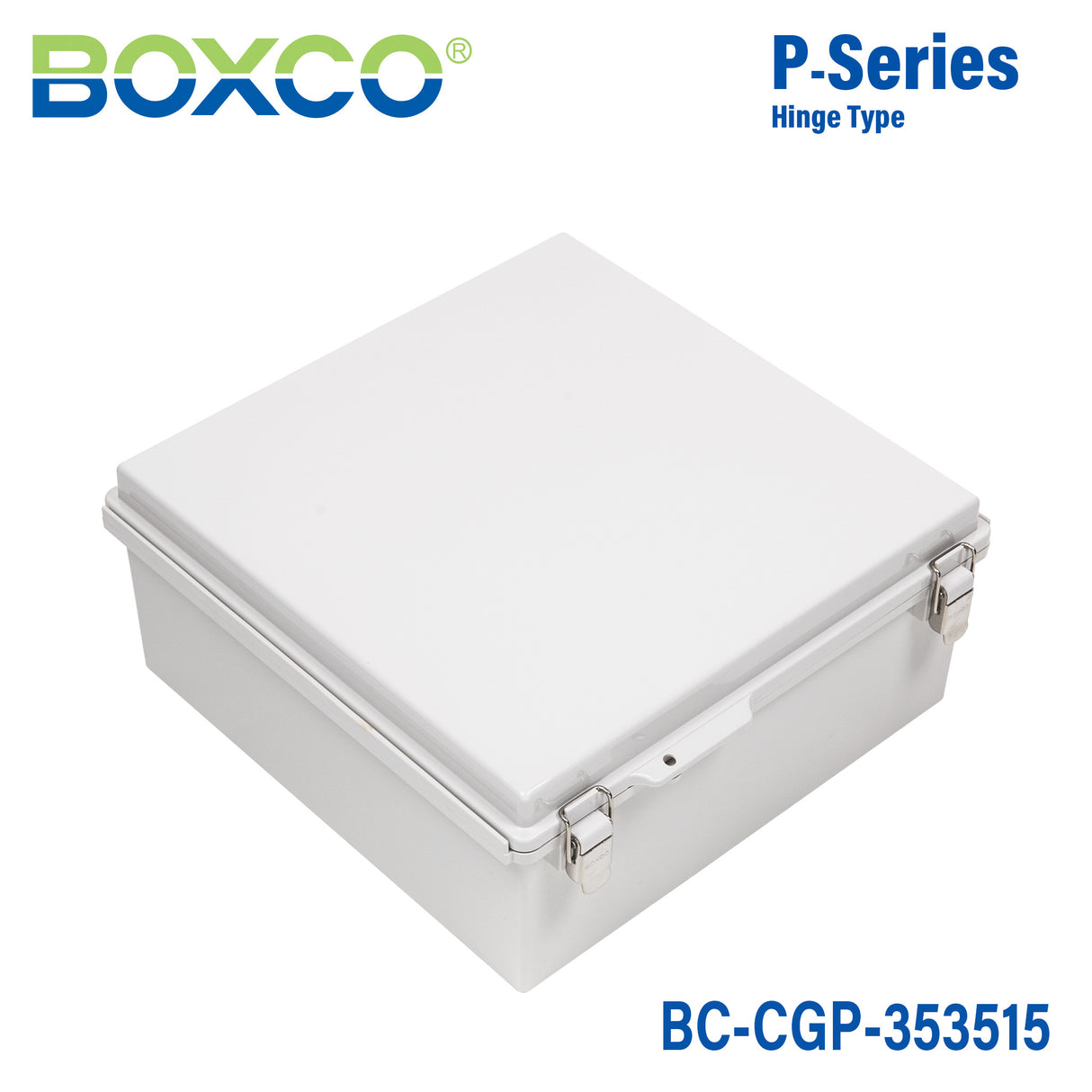

Boxco P-Series 350x350x150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-353515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-353515 is a 350×350×150 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-353515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×150 mm (13.78×13.78×5.91 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

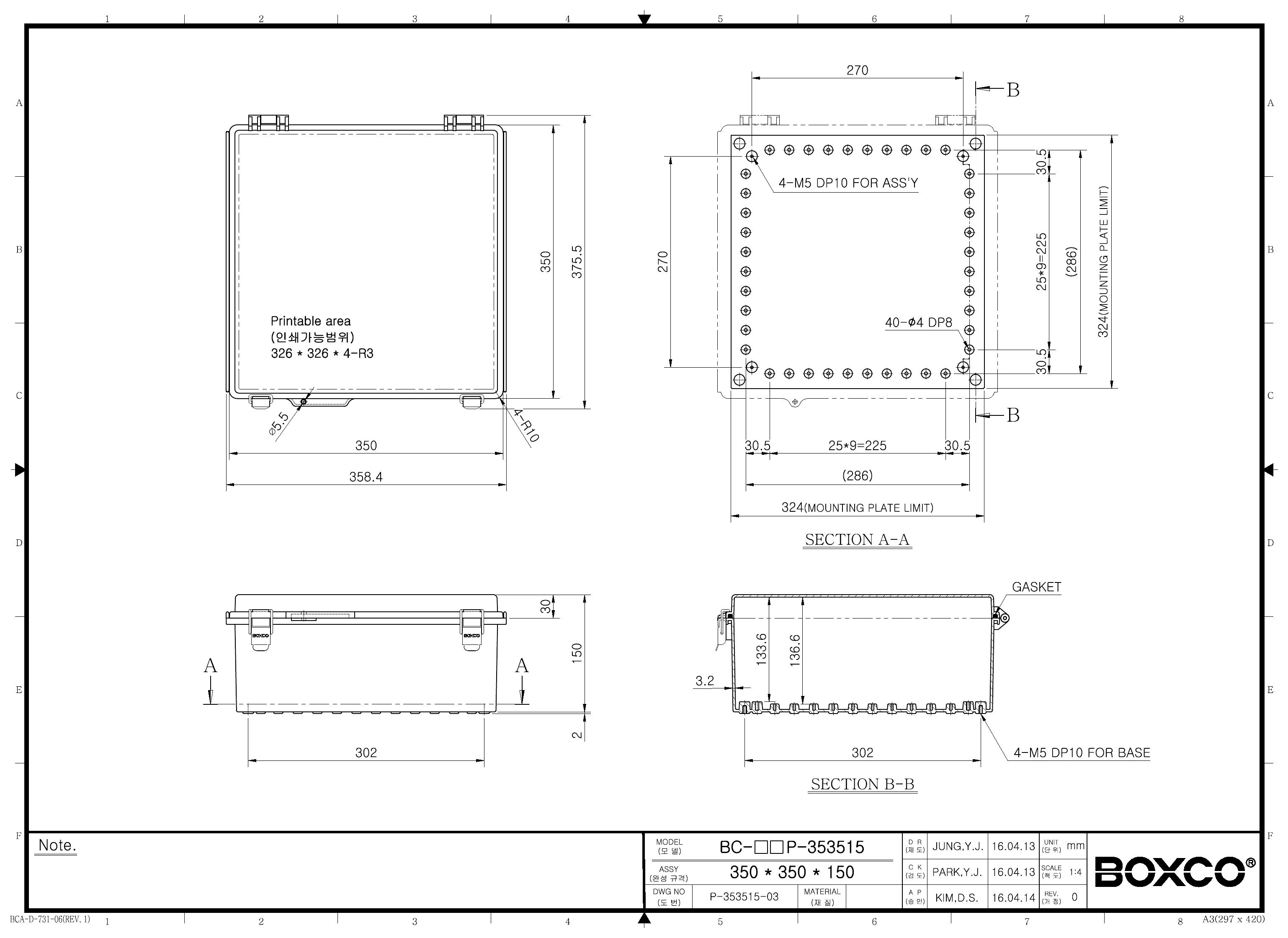

BC-CGP-353515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 350 x 350 x 150 mm plastic enclosure suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a sealed non-metallic housing in indoor or outdoor environments. Its IP67 sealing, IK08 impact rating, anti-static material, and high-impact polycarbonate construction make it a practical choice for control, instrumentation, and equipment protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features intended to help reduce water penetration when used outdoors. The enclosure is also rated IP67 for protection against dust ingress and temporary immersion.

What are the key material and protection ratings for this model?

This model is made from polycarbonate (PC) and has a grey cover with an integrated molded hinge and latch design. It carries an IP67 ingress protection rating and an IK08 impact rating, indicating strong dust and water resistance along with solid impact protection for the enclosure body.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That range makes it appropriate for demanding environments where both low-temperature and elevated-temperature performance matter.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description states that it includes pre-molded mounting screw nuts to help secure items such as DIN rail or other internal equipment, and it also includes mounting plate attachment points. Boxco also notes that the internal mounting plate can be fixed tightly onto brass inserted injection molding to support heavier installed equipment.

How does this hinged P-Series enclosure differ from a basic non-hinged box?

This version uses a molded integrated hinge and latch-type cover, which is designed for repeated access while keeping the cover attached to the enclosure. It also includes stainless steel bearing components in the hinge and a stainless steel main latch part, adding durability compared with simpler enclosure styles.
