Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x350x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-353518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-353518 is a 350×350×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-353518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×180 mm (13.78×13.78×7.09 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

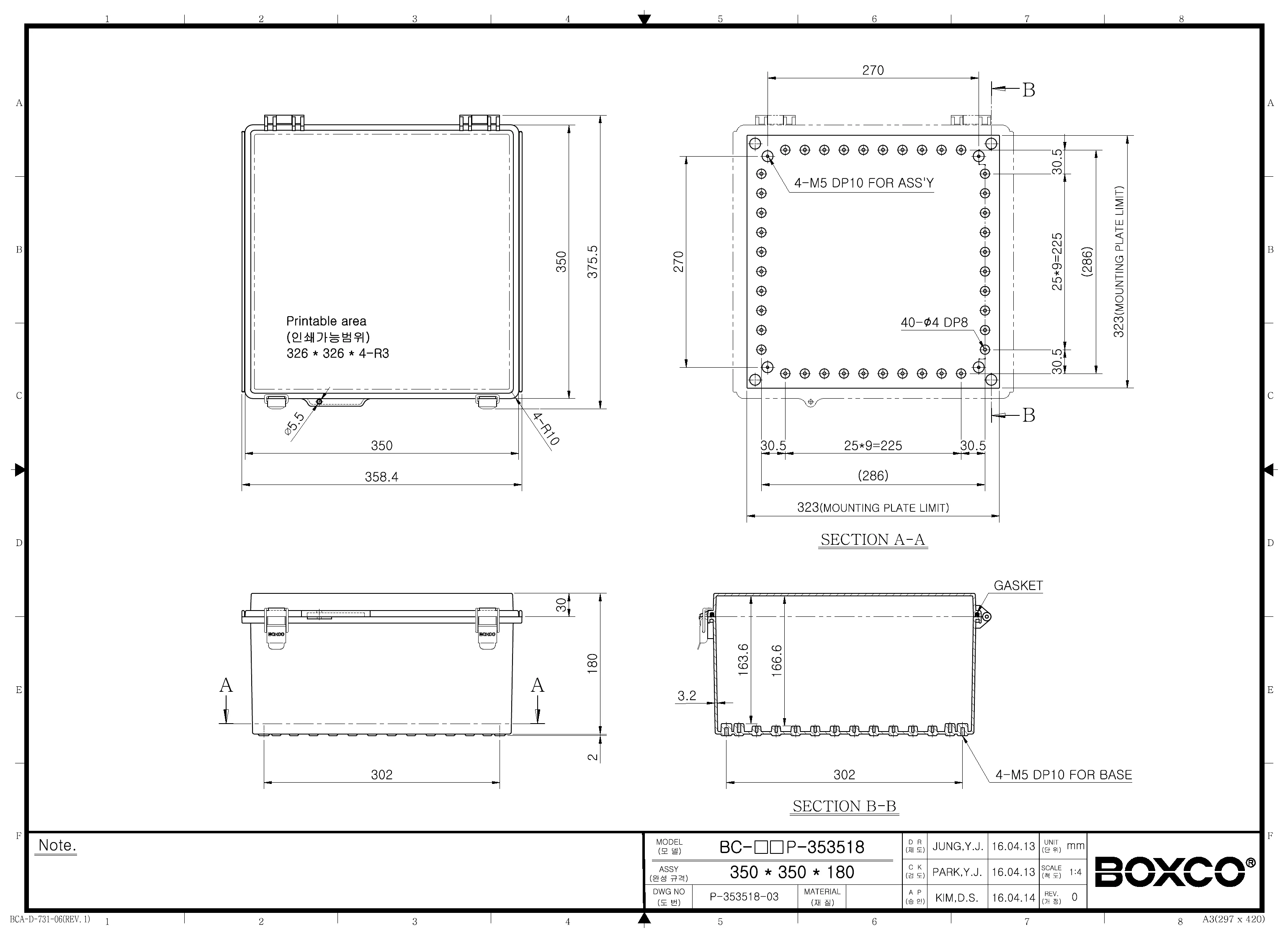

Technical drawings

BC-CGP-353518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 13.78 x 13.78 x 7.09 inches, which corresponds to 350 x 350 x 180 mm. It is sized for applications that need a larger non-metallic enclosure with internal room for mounted components and protective spacing.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage, and the design includes roof protection features to help reduce water penetration when used outside. It also carries an IP67 rating for dust-tight and water-resistant protection.

What level of environmental and impact protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is built for strong protection against dust ingress and water exposure, while also offering solid resistance to external impact for industrial and commercial environments.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The description also notes anti-static material use for protecting sensitive electronic instruments and high impact resistance to help prevent breakage during processing.

What temperature range can this enclosure handle?

The stated operating temperature range is from -40 °C to 110 °C. That makes this model suitable for demanding environments where both low-temperature and high-temperature exposure may be a factor.

What mounting or equipment support features are included in this enclosure?

This enclosure includes pre-molded mounting screw nuts that can help support DIN rail or other internal equipment mounting. It also has internal mounting plate attachment points with brass inserted injection molding for securing heavier installed equipment more tightly.

What makes this hinged enclosure different from a basic plastic box?

This model includes an integrated molded hinge, latch-style closure hardware with a stainless steel main latch part, injected gasket sealing, and outdoor-oriented roof protection details. Compared with a simpler enclosure, it is designed for stronger environmental sealing, repeated access, and more durable use in tougher settings.

What types of applications is this enclosure commonly suited for?

This Boxco P-Series enclosure is suited for protecting sensitive electronic instruments and housed components in industrial or commercial settings where dust, water, impact resistance, and outdoor exposure matter. Its larger size, IP67 sealing, and anti-static material make it a practical choice for demanding enclosure applications.
