Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x450x120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-354512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-354512 is a 350×450×120 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-354512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×120 mm (13.78×17.72×4.72 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

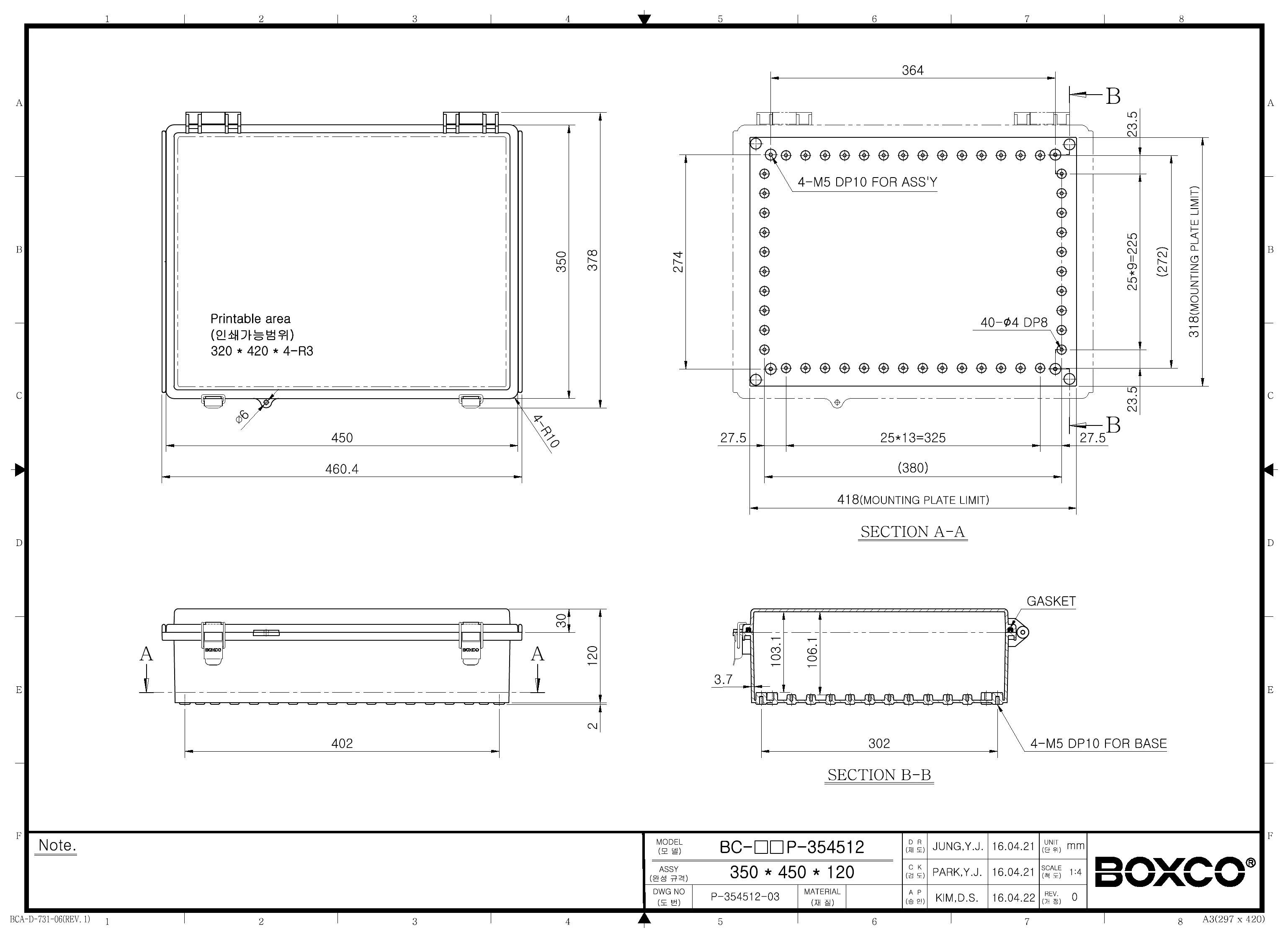

Technical drawings

BC-CGP-354512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this Boxco P-Series enclosure suitable for outdoor use?

Yes. This model is rated IP67 and the product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use. The roof-protection design and injected gasket are intended to support strong water and dust resistance during outdoor exposure.

What are the dimensions of this enclosure?

This enclosure measures 13.78 x 17.72 x 4.72 inches, which corresponds to 350 x 450 x 120 mm. That makes it a larger-format plastic enclosure for applications that need more internal space than compact junction-style boxes.

What material is this Boxco enclosure made from?

This model is made from PC, or polycarbonate, and includes a grey cover. The description also notes anti-static material use and high impact resistance to help protect sensitive equipment and reduce breakage during machining or panel work.

How durable is this enclosure for industrial environments?

This model carries an IK08 impact rating and is described as using high impact resistant material. It also uses a molded plastic hinge with a stainless steel bearing and a stainless steel latch main part for added durability in repeated-access applications.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. That wide range makes it suitable for demanding indoor or outdoor environments where both low-temperature exposure and elevated heat are factors.

What kinds of equipment is this enclosure best suited for?

This model is intended for protecting electrical or electronic equipment that needs a sealed, impact-resistant housing. Its anti-static material, internal mounting plate attachment points, and pre-molded mounting screw nuts make it a practical option for control, instrumentation, and other sensitive device enclosures.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with dedicated attachment points for an internal mounting plate. Those features help support heavier internal components more securely inside the enclosure.
