Boxco

Boxco P-Series 350x450x160mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-354516
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-354516 is a 350×450×160 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-354516Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×160 mm (13.78×17.72×6.30 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

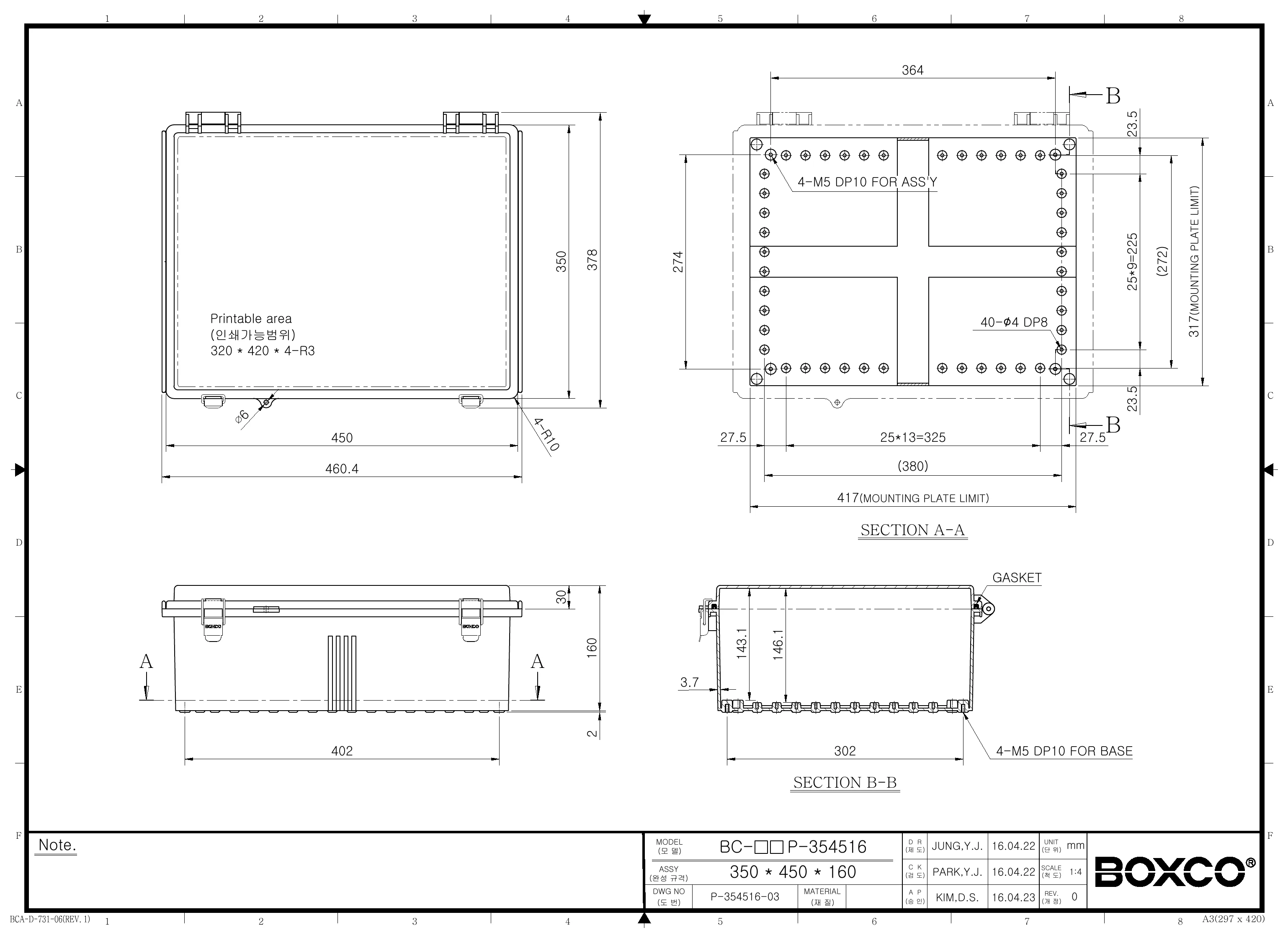

Technical drawings

BC-CTP-354516 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting electronic and control components in industrial or outdoor environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when visual inspection of enclosed equipment is needed without opening the enclosure.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features that help reduce water penetration during outdoor use. Its IP67 rating also indicates strong protection against dust and water ingress.

What does the transparent cover offer on this model?

The transparent polycarbonate cover allows contents inside the enclosure to be viewed without opening it. That can be useful for checking indicators, displays, or component status while maintaining enclosure protection when closed.

What protection ratings does this enclosure have?

This enclosure is rated IP67 and IK08. That means it is designed for strong resistance to dust and water ingress, while also offering a defined level of impact resistance for demanding environments.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide range makes it appropriate for both cold and high-heat operating environments, depending on the rest of the installed system.

What are the size and material details for this enclosure?

This Boxco P-Series enclosure measures 13.78 x 17.72 x 6.30 inches, which corresponds to 350 x 450 x 160 mm. It is made from polycarbonate (PC) and has a listed weight of 2.74 kg.

Does this enclosure support mounting internal equipment?

Yes. The description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. These features are intended to help support installed components inside the enclosure body.
