Boxco

Boxco P-Series 400x500x160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-405016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-405016 is a 400×500×160 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-405016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×160 mm (15.75×19.69×6.30 in)
Mounting plate dimension M1 × M2
358 × 457 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
4050 P (Plastic, P type), 4050 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

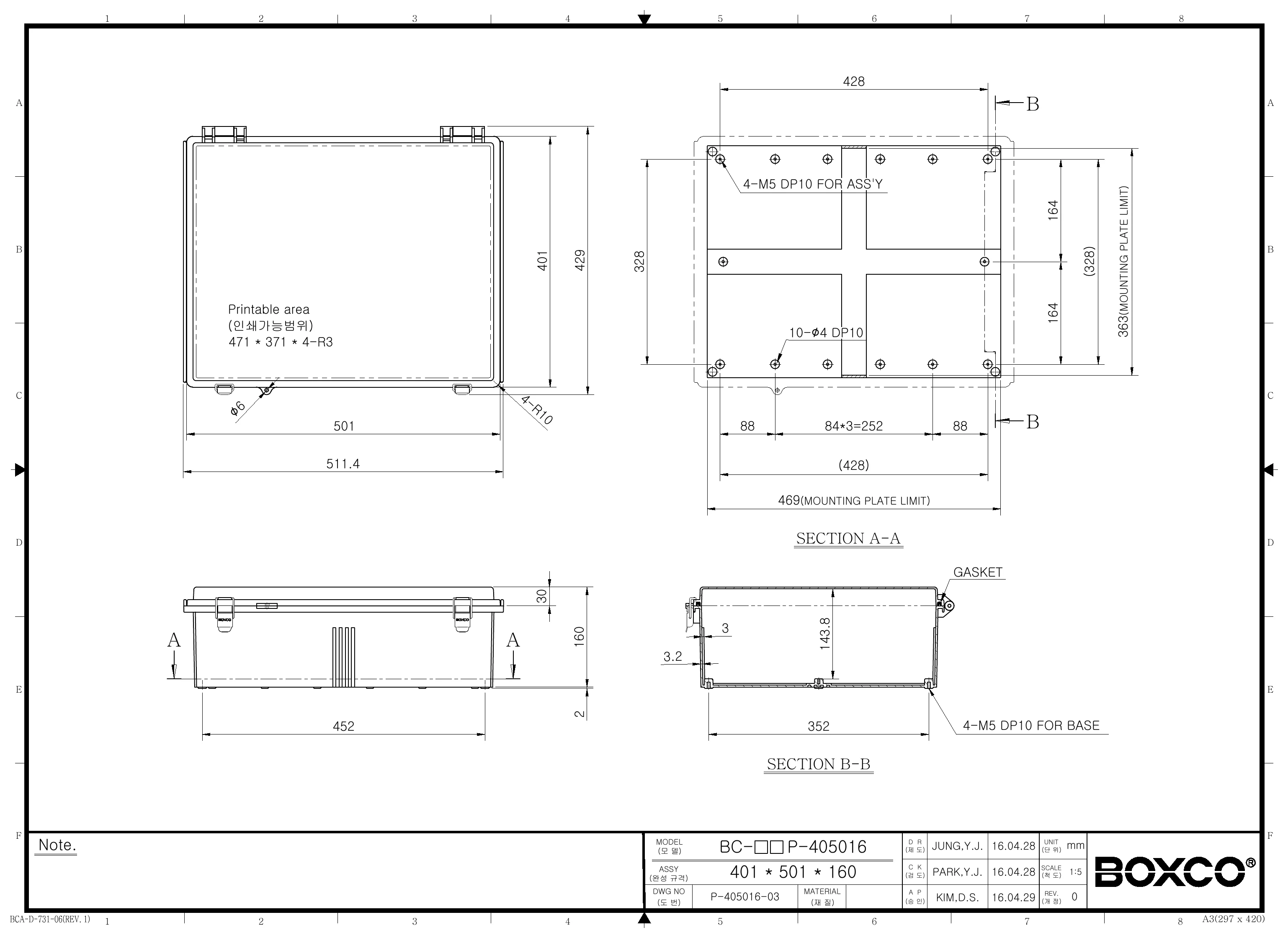

Technical drawings

BC-ATP-405016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-405016 enclosure suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material also makes it a practical choice for housing sensitive electronic instruments.

What are the main specifications of the BC-ATP-405016 enclosure?

This model measures 15.75 x 19.69 x 6.30 inches (400 x 500 x 160 mm) and is made from ABS with a transparent cover. It carries IP67 and IK08 ratings, has a molded hinge and latch-type closure, and weighs 8.976 kg.

Is this plastic enclosure suitable for outdoor use?

Yes. The Boxco P-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its roof protection design and gasket system also support strong resistance to water and dust ingress.

What temperature range can this enclosure handle?

The BC-ATP-405016 is rated for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, depending on the requirements of the equipment housed inside.

How does the transparent cover help compared with a solid cover enclosure?

The transparent cover allows visual inspection of internal components or indicators without opening the enclosure. This can be useful when equipment status needs to be checked while maintaining the enclosure's closed protective design.

Does this enclosure support internal mounting hardware or panels?

Yes. It includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it has mounting plate attachment points for fastening an internal mounting plate. The attachment points use brass-inserted injection molding to better support heavier installed equipment.
