Boxco P-Series 530x730x185mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-507018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-507018 is a 530×730×185 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-507018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×185 mm (20.87×28.74×7.28 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

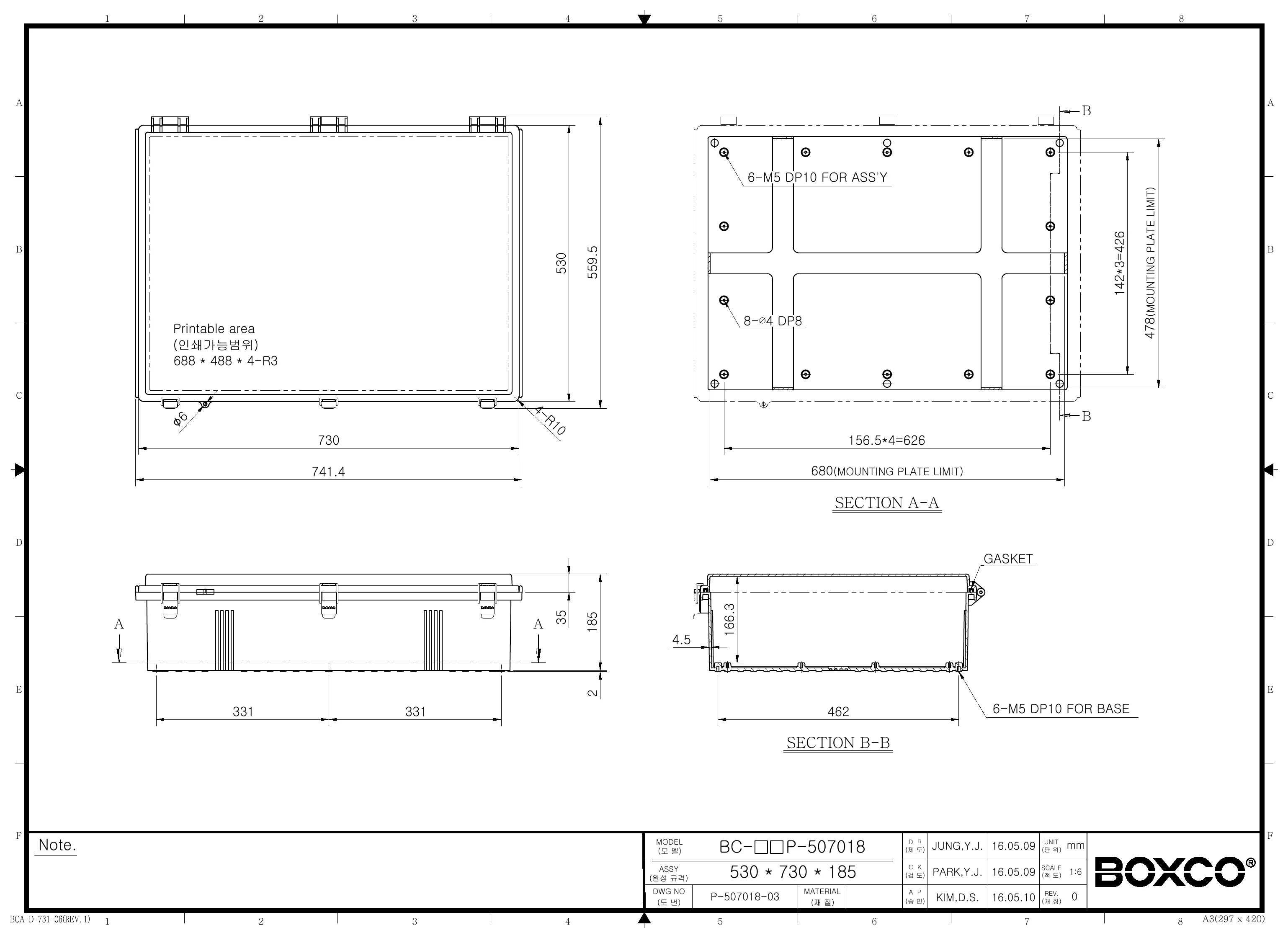

BC-CTP-507018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-507018 best suited for?

This enclosure is suited for protecting industrial controls, monitoring equipment, and other sensitive electronics that need a large non-metallic housing. Its transparent cover makes it useful where visual inspection is needed without opening the box, and its molded hinge and latch design supports repeated access in commercial or industrial settings.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The product description states that an ultraviolet stabilizer is added to help limit color change over time, and the enclosure includes roof protection features intended to help reduce water and dust intrusion during outdoor use.

What do the IP67 and IK08 ratings mean for this enclosure?

The IP67 rating indicates this enclosure is built for strong protection against dust and temporary water exposure. The IK08 rating indicates resistance to mechanical impact, which aligns with the product's high-impact polycarbonate construction.

What material is this enclosure made from, and why does that matter?

This model is made from polycarbonate (PC) with a transparent cover. According to the product details, the material is high impact resistant, includes anti-static properties to help protect sensitive instruments, and is designed to perform well during machining or press processing.

What is the usable temperature range for the BC-CTP-507018?

This enclosure is rated for temperatures from -40 degrees C to 110 degrees C. That wide range makes it appropriate for demanding indoor and outdoor industrial environments where temperature extremes are a concern.

How large is this enclosure, and what should buyers know about its size?

The enclosure measures 20.87 x 28.74 x 7.28 inches, which is 530 x 730 x 185 mm. It is a large-format enclosure intended for applications that need substantial internal space for protected equipment and accessories.

Does this model support internal mounting hardware or panels?

Yes, the product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes mounting plate attachment points. Those built-in features make it better suited for organized internal layouts than a plain empty box.

What cover and access style does this enclosure use?

This model uses a transparent cover with an integrated molded hinge and latch type closure. The hinge is plastic and integrated with the enclosure, while the bearing is stainless steel to help improve service life during repeated opening and closing.
