Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 630x830x185mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-608018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-608018 is a 630×830×185 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-608018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×185 mm (24.80×32.68×7.28 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

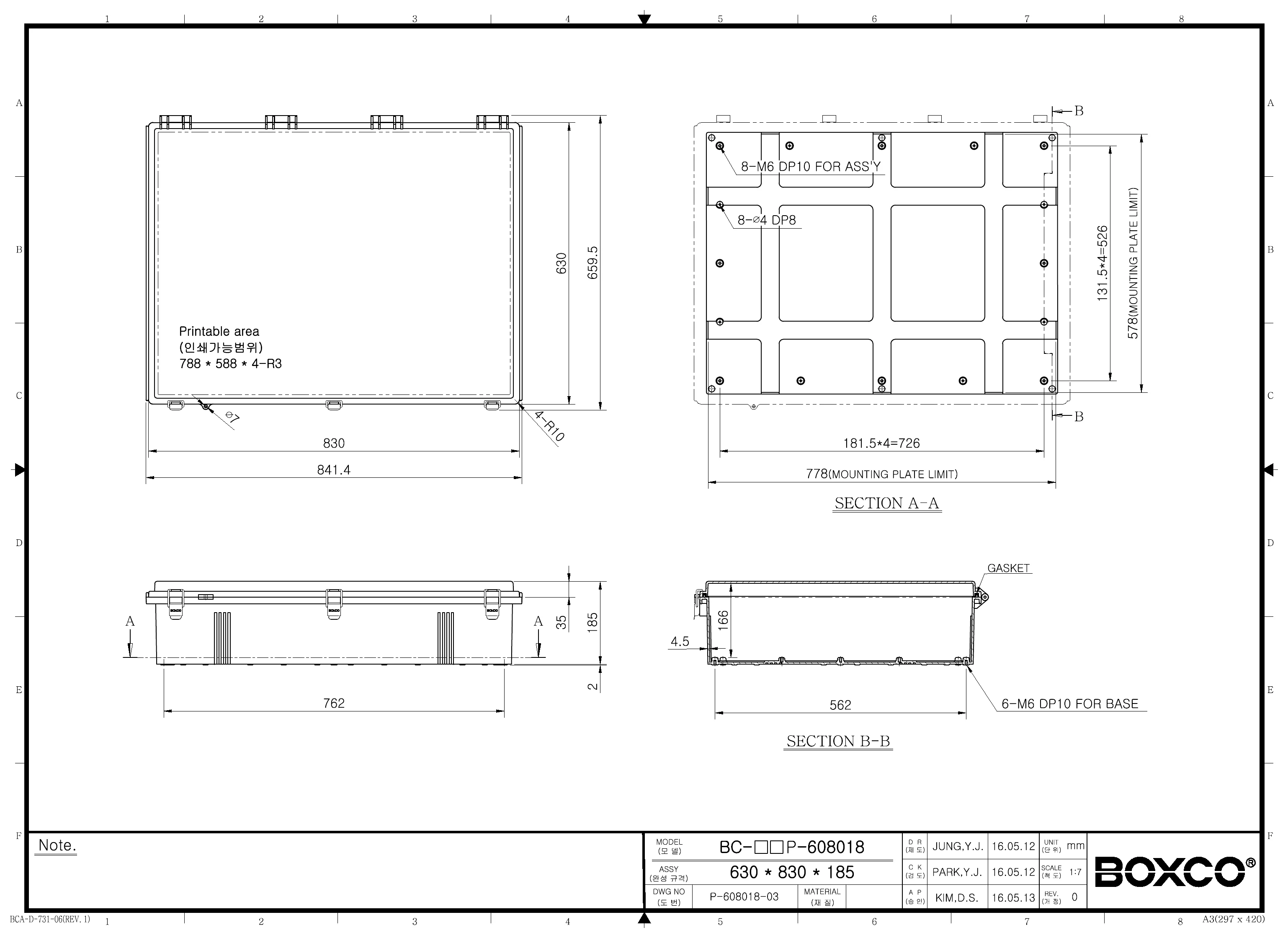

BC-CGP-608018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco P-Series BC-CGP-608018 enclosure?

This model measures 24.80 x 32.68 x 7.28 inches (630 x 830 x 185 mm) and is made from polycarbonate (PC) with a grey cover. It is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. The enclosure weighs 28.068 kg and includes a molded hinge and latch-style cover design.

Is the BC-CGP-608018 suitable for outdoor environments?

Yes, this enclosure is designed for outdoor-capable use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor exposure, and the P-Series roof protection design helps reduce water and dust intrusion during cover operation. Its IP67 rating also supports use in demanding environmental conditions.

What temperature range can this plastic enclosure handle?

The BC-CGP-608018 is specified for temperatures from -40 °C to 110 °C. That range makes it suitable for applications exposed to both low and high ambient temperatures. Buyers should still confirm the full system's environmental limits, not just the enclosure body.

What types of applications is this enclosure commonly used for?

This model is intended for protecting electrical or electronic equipment that needs a durable non-metallic enclosure with strong environmental sealing. Its anti-static material and impact-resistant construction make it a practical choice for industrial control, instrumentation, and outdoor equipment protection. The large format also supports applications needing more internal space for mounted components.

What makes this P-Series enclosure different from a basic plastic box?

Compared with a basic plastic enclosure, this model adds higher-end protection and mechanical features such as IP67 sealing, IK08 impact resistance, integrated molded hinges, and a latch system with a stainless steel main latch component. It also includes design details like roof protection, injected gasket sealing, and pre-molded mounting screw nuts. These features make it better suited for harsher commercial and industrial environments.

Does the enclosure support internal mounting hardware or accessory plates?

Yes, the product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, along with mounting plate attachment points. It also notes that an internal mounting plate can be fixed tightly onto brass inserted injection molding to support heavier installed equipment. Buyers should verify any accessory dimensions separately for fit within this specific enclosure size.

What material is the BC-CGP-608018 made from, and why does that matter?

This enclosure is made from polycarbonate (PC), a material chosen here for high impact resistance and durability during processing. The description also notes anti-static material properties to help protect sensitive electronic instruments from static electricity. For buyers needing a rugged non-metal enclosure, those material characteristics are a meaningful advantage.

What warranty is listed for this Boxco enclosure?

The listed warranty period for this model is 1 year. That gives buyers a defined coverage term for the product as sold. For claim details or coverage conditions, the seller's warranty policy should be reviewed separately.
