Boxco

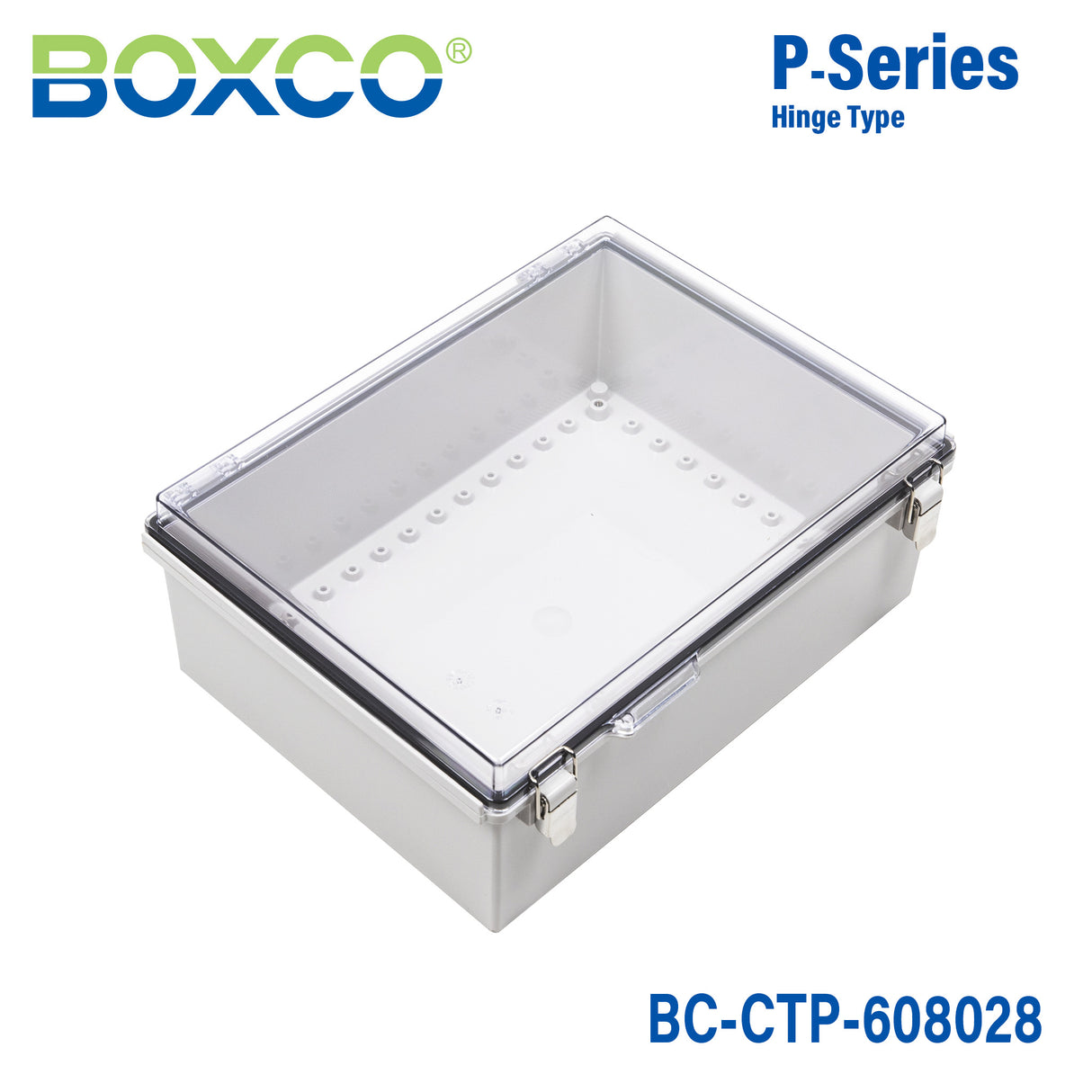

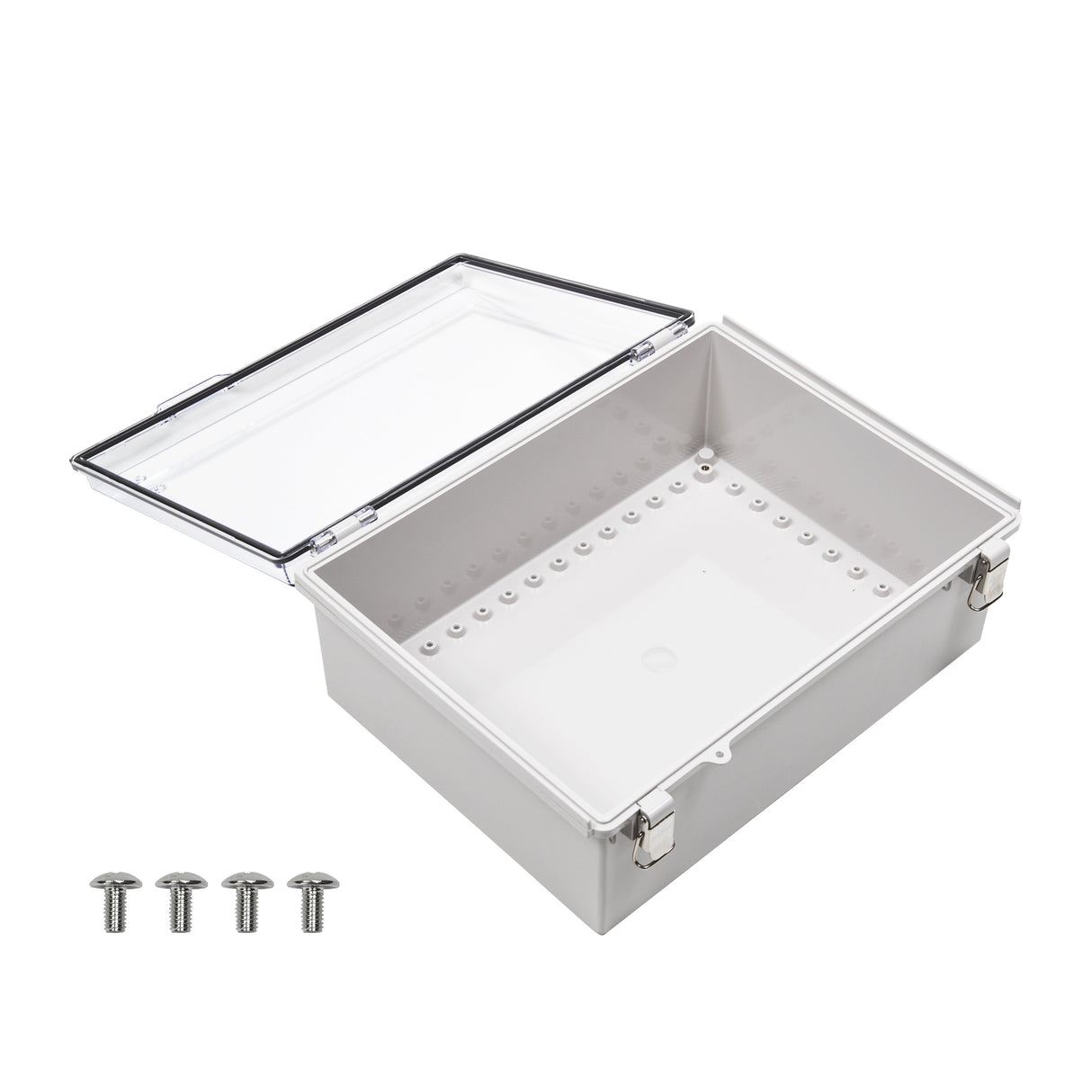

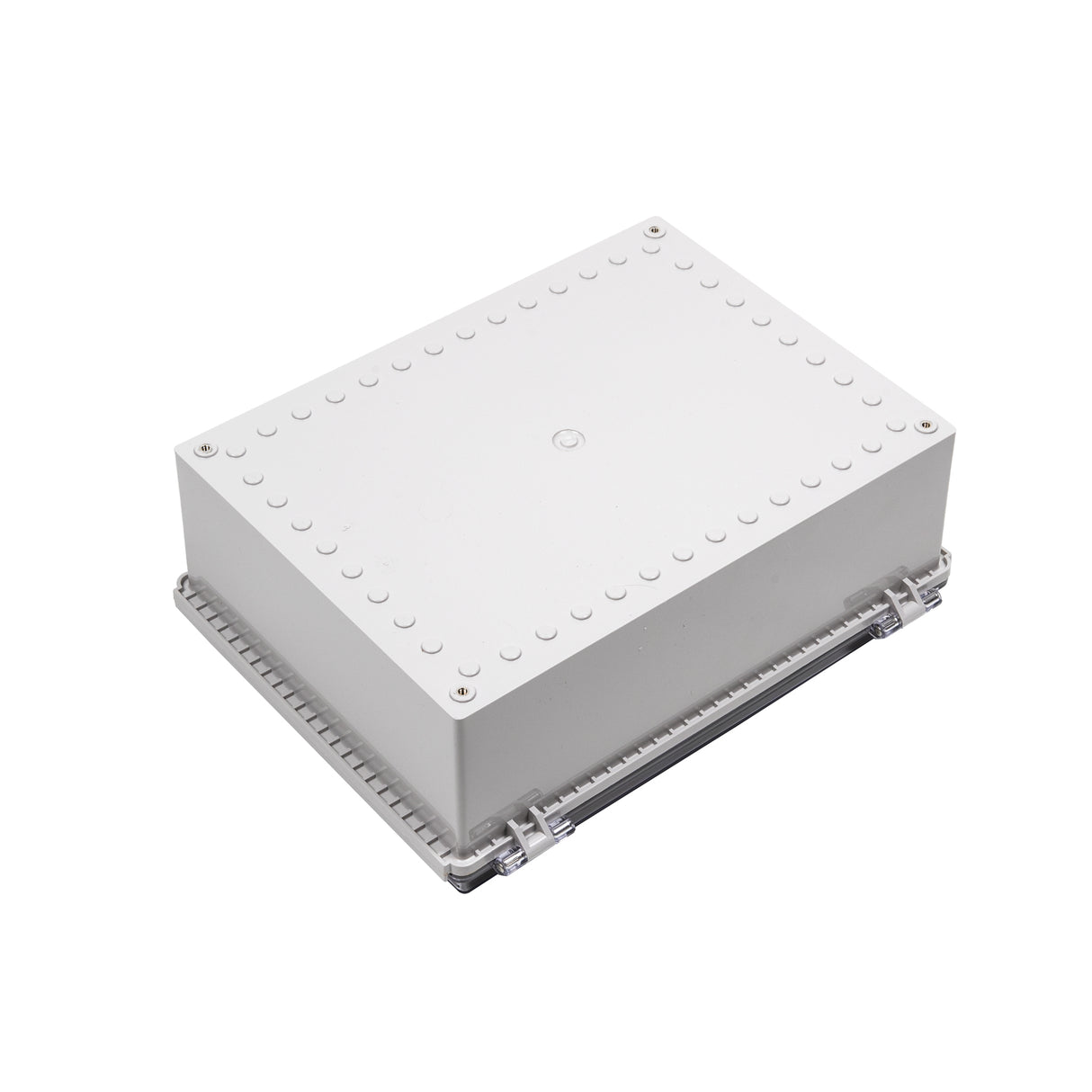

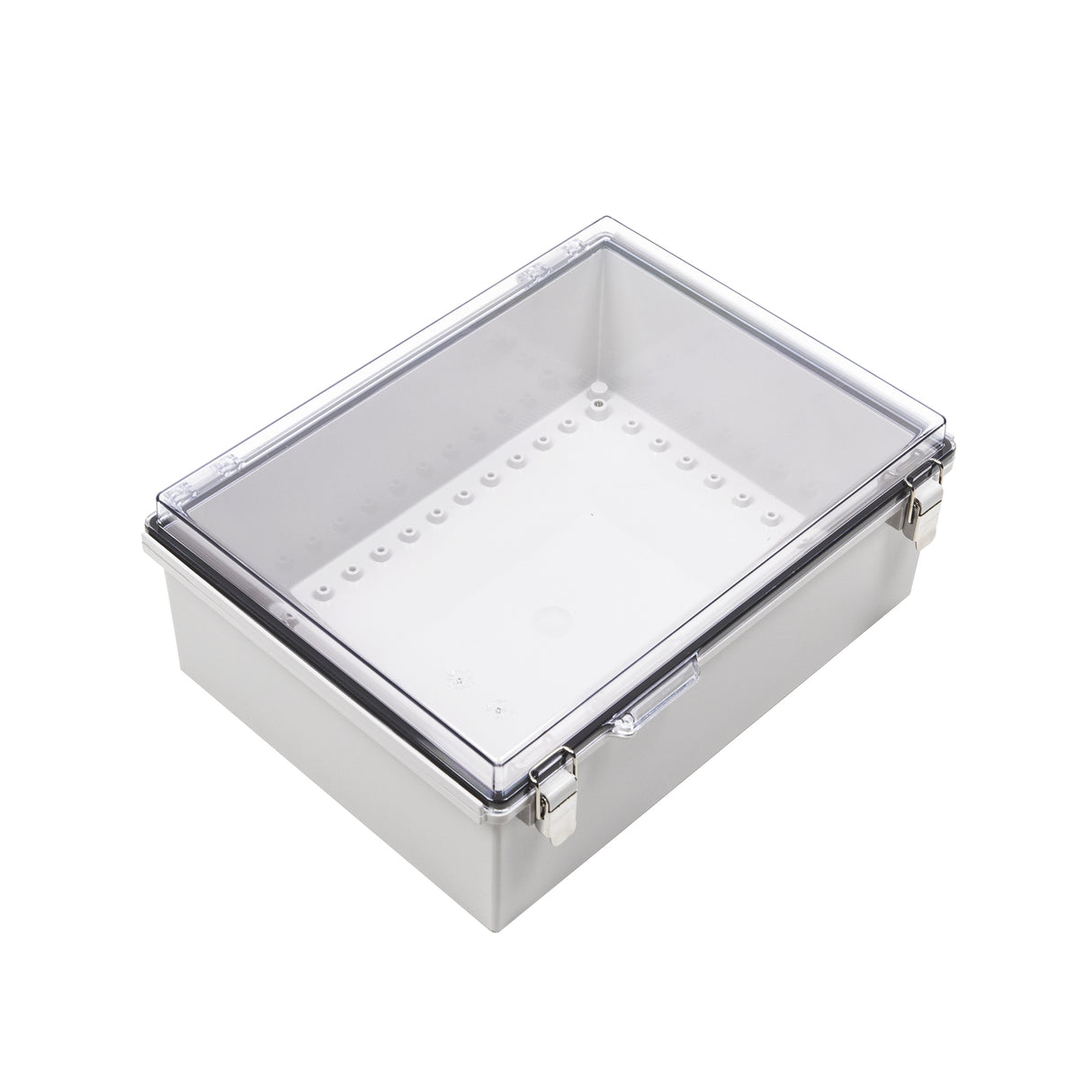

Boxco P-Series 630x830x285mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-608028
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-608028 is a 630×830×285 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-608028Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×285 mm (24.80×32.68×11.22 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

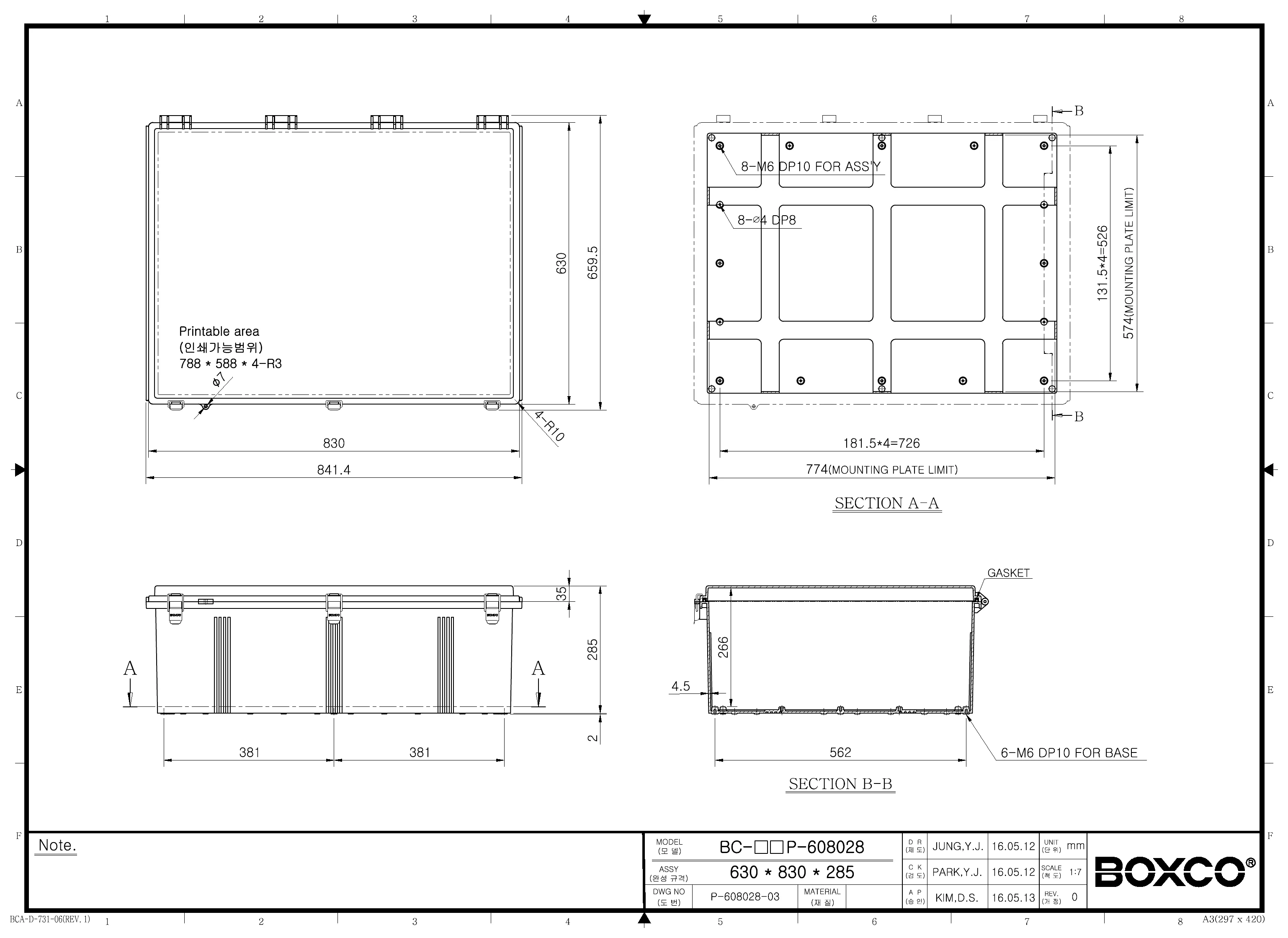

BC-CTP-608028 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What size is the Boxco P-Series BC-CTP-608028 enclosure?

This model measures 24.80 x 32.68 x 11.22 inches, which is 630 x 830 x 285 mm. It is a large plastic enclosure intended for applications that need substantial internal space for protected equipment.

Is the BC-CTP-608028 suitable for outdoor use?

Yes. The enclosure includes ultraviolet stabilizer material to support outdoor use and help reduce visible color change over time. Its design also includes roof protection details that help limit water and dust intrusion during cover operation.

What protection ratings does this enclosure have?

The BC-CTP-608028 is rated IP67 for dust-tight and water-resistant protection, and IK08 for impact resistance. It is also made from high-impact polycarbonate with a transparent cover for visibility into the enclosure.

What types of applications is this enclosure commonly used for?

This enclosure is suited for protecting sensitive electronic instruments and other industrial equipment that benefit from a sealed, impact-resistant housing. Its anti-static material and large interior make it a practical choice for demanding commercial and industrial environments.

What is the operating temperature range for this model?

The listed operating temperature range for this enclosure is -40 °C to 110 °C. That range makes it suitable for use in both very cold and high-heat environments where standard enclosures may be too limited.

Does this enclosure support mounting internal components?

Yes. The BC-CTP-608028 includes pre-molded mounting screw nuts and dedicated mounting plate attachment points. These features support secure placement of internal hardware while taking advantage of the enclosure's large format.

What makes this model different from a standard plastic enclosure box?

This model combines a transparent cover, molded hinge and latch construction, UV-stabilized polycarbonate, anti-static material, and IP67/IK08 protection in one enclosure. It is also designed with stainless steel latch components and integrated hinge hardware for durability in tougher environments.
