Boxco

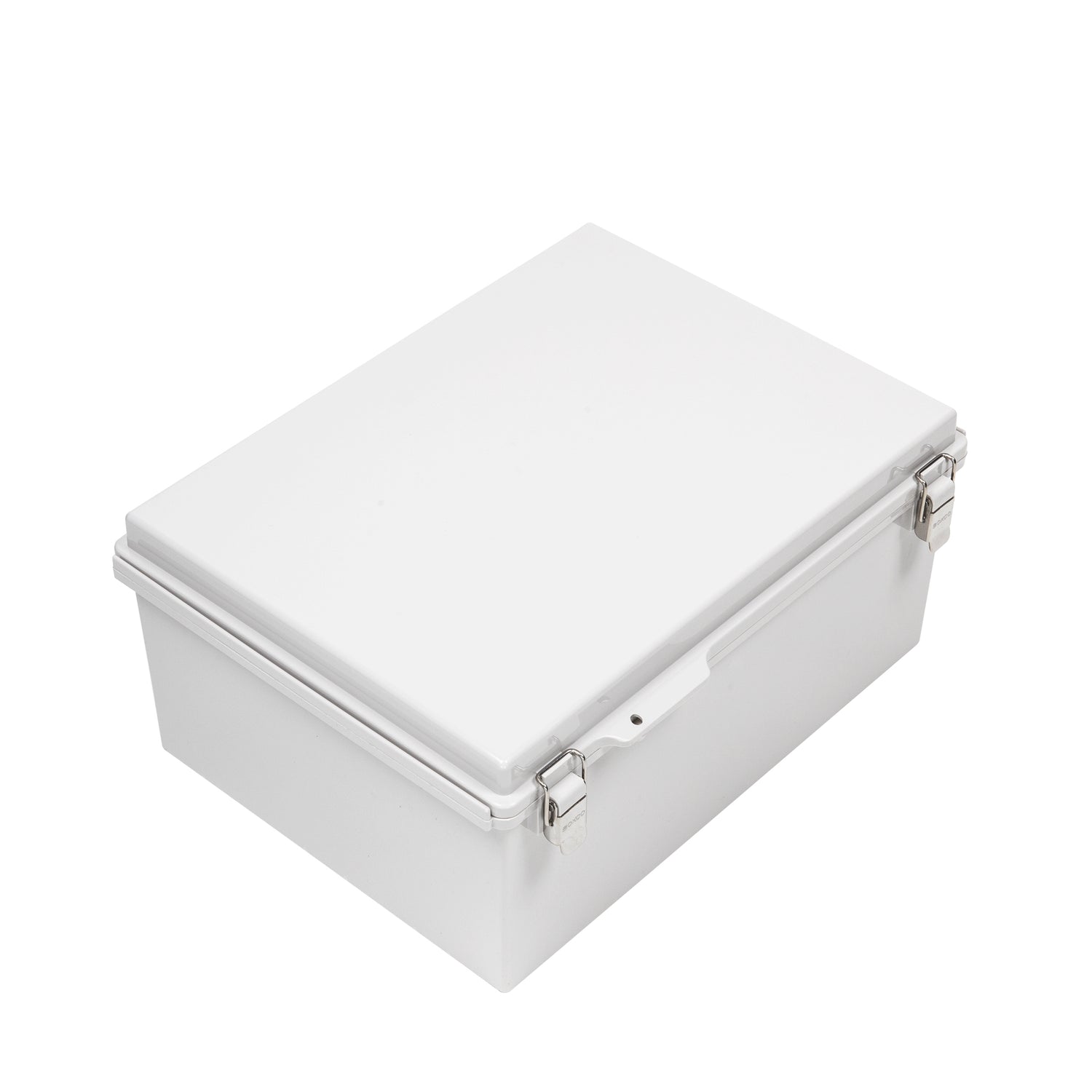

Boxco P-Series 810x1010x350mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-8010035
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-8010035 is a 810×1010×350 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-8010035Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
810×1010×350 mm (31.89×39.76×13.78 in)

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
80100 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-CGP-8010035 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key protection ratings of the Boxco P-Series 810x1010x350mm plastic enclosure?

This model is rated IP67 for dust and water protection and IK08 for impact resistance. It is made from polycarbonate with a grey cover and uses a molded hinge and latch-style closure. The enclosure is intended for applications that need strong environmental protection in a large-format non-metallic housing.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. It also includes roof protection features and a precision-injected gasket to support water and dust resistance.

What temperature range can this enclosure handle?

This enclosure is specified for temperatures from -40 °C to 110 °C. That wide operating range makes it suitable for demanding industrial and outdoor environments where both low and high temperatures may be present. Buyers should still confirm the full system requirements for the equipment placed inside.

What kinds of applications is this enclosure best suited for?

This model is well suited for protecting sensitive electrical or electronic equipment in industrial and outdoor environments. The description highlights anti-static material, high impact resistance, and support for mounting internal equipment, which makes it a strong fit for control, protection, and equipment housing applications. Its large 810x1010x350 mm format also supports larger assemblies.

What features help support internal equipment mounting in this enclosure?

The enclosure includes pre-molded mounting screw nuts so equipment such as DIN rail accessories can be fixed inside more easily. It also has mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. These features are intended to support organized internal component mounting in a large enclosure.

How durable is the hinge and latch design on this model?

This enclosure uses an integrated molded plastic hinge with a stainless steel bearing to improve service life. The latch design also uses stainless steel in the main draw latch component for added strength. Together, these features are intended to provide durable repeated opening and closing in demanding environments.
